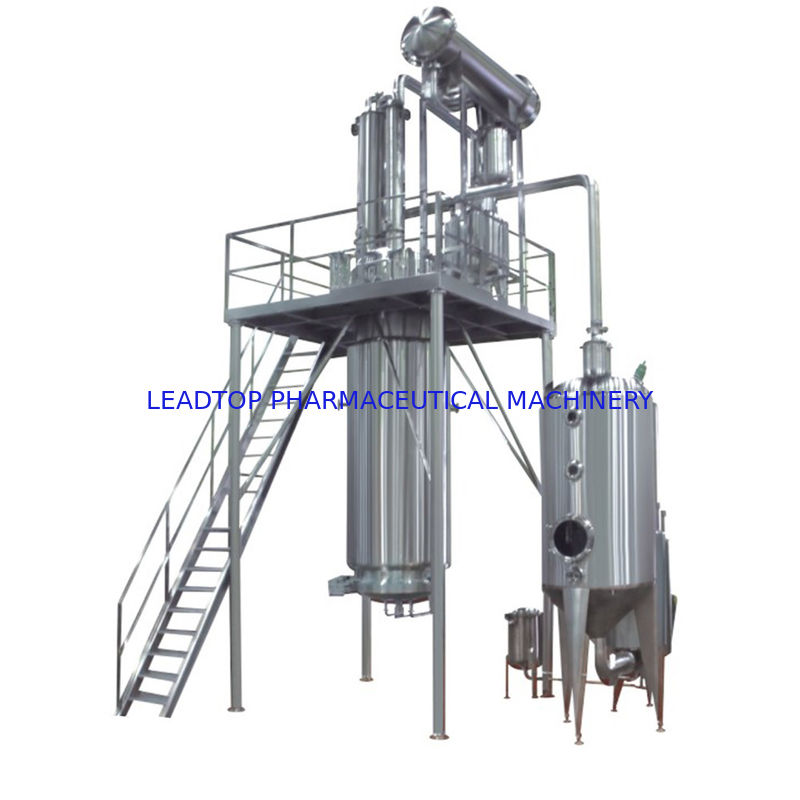

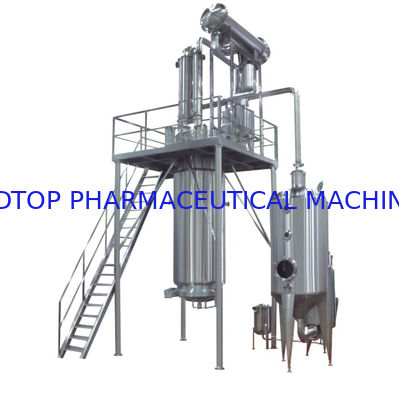

500-1000L Herb Extraction Equipment In Stevia Hemp CBD Leaf Extraction And Concentration Line

500-1000L Herb Extraction Equipment In Stevia Hemp CBD Leaf Extraction And Concentration Line

    • 500-1000L Herb Extraction Equipment In Stevia Hemp CBD Leaf Extraction And Concentration Line
    • 500-1000L Herb Extraction Equipment In Stevia Hemp CBD Leaf Extraction And Concentration Line
    • 500-1000L Herb Extraction Equipment In Stevia Hemp CBD Leaf Extraction And Concentration Line
    • 500-1000L Herb Extraction Equipment In Stevia Hemp CBD Leaf Extraction And Concentration Line
    • 500-1000L Herb Extraction Equipment In Stevia Hemp CBD Leaf Extraction And Concentration Line
  • 500-1000L Herb Extraction Equipment In Stevia Hemp CBD Leaf Extraction And Concentration Line

    Product Details:

    Place of Origin: CHINA
    Brand Name: LTPM CHINA
    Certification: CE
    Model Number: LTN-0.5/125

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Packaging Details: Pallet Packing
    Delivery Time: 45 days
    Payment Terms: T/T, L/C, D/P, Western Union
    Supply Ability: 10 sets/month
    Contact Now
    Detailed Product Description
    Item: Herb Extraction Equipment Model No.: LTN-0.5/125
    Material: Stainless Steel The Volume Of Extracting: 0.5m³
    Raw Material Input Capacity: 50-70kgs Steam Consumption: 280kg/hour
    Water Circulation Capacity: 15-25T Capacity Of Concentrating Evaporator: 100kg-125kg/hour
    The Time Of Extraction: 8h

    Hemp Oil Extraction Machine in stevia extraction line

    Applications:

    Traditional Chinese medicine hot backset current low temperature draw low temperature concentrate unit comprehensive backset current, ooze and filter drawing, adverse current and hot backset current extraction and concentrate four kinds of principles. abstraction, concentrate two processes go on at the same time, one finish traditional medicine draw, concentrate the new craft of traditional Chinese medicine, take to change the draw pot keep high temperature with atmosphere fry the craft of boiling, utilize vacuum to shoulder proceed low temperature draw and low temperature concentrate, make working temperature to draw pot control in 60-80°C, concentrate temperature control in 50-70°C, guarantee crude drugs effective composition the distillation loss. Meanwhile draw and concentrate produced two steam enter backset current condenser become hot condensation liquid, falling back to and drawing it the pots, add to the crude drugs as the new solvent, the new solvent is passed the crude drugs layer from top to bottom, having played a oozing and filtering dynamically role, the soluble material which dissolves the crude drugs reaches the draw pot bottom, enter the concentrating device to concentrate again. According to practical experience and study for many years, hot condensation liquid of backset current invite within 2.5-3 hours drawing former solvent of pot all change once, can keep a higher density to the draw pot crude drugs in unit time.

    Usage:
    This Heat Reflux Extracting Concentrator is applicable to herb medicine, Chinese medicine, animals, food additive, etc. It is used to extract water, ethanol, methanol and acetone, and torecycle and concentrate organic solvent.
    Features:
    1. Ointment collecting ratio has increased by 10~15 percent over that of multifunctional tank, and the effective components of ointment has raised by more than 100percent. In the process of extracting, hot solvent adds to the ointment continuously,goes through the ointment layer from upper to lower fast and dissolves thesolute, and the contain of solute keeps latitude with that of solvent, and thesolute of ointment dissolves out fast until completely dissolved. So the extracting ratio of the effective components is high. In addition, the extracting processhas finished in a set of closed equipment, so the loss ratio is very low, theexchanging rate is high, the ointment-collecting ratio is high, and the effective ointment content is high.

    2. The solute dissolving out fast shortens the extracting time, concentrating and extracting going in the same pace, so it costs only 7-8 hours to extract from the medicine material to the ointment.

    3. The equipment is simple, the occupying area is small, the use ratio is high, so it can reduce the investment.

    4. During the process, it needs to add the solvent only one time, recycling used in a set of closed equipment, the solvent of medicine residue can be basically recycled, so the solvent cost can be reduced by more than 30% compared to that ofextraction tank, cost ratio can reduce by 50%~70%, which pave a smooth way for extracting organic solvent and purifying the effective component of Chinese medicine.

    5. The extracting heat source comes from the concentrating second-time steam, and the temperature of the feeding extracting liquid is the same with the concentrating temperature, so it can save above 50 percent steam. And it is convenient tooperate, reducing the operator quantity.


    Specifications:




    Model

               LTN0.5/125

    The volume of extracting (m³)

                     0.5

    The work temperature of extracting and concentrating (°C)

      Water: 50-90°C Alcohol: 40-80°C

    Raw Material Input Capacity (kg)

                     50-70

    Capacity of Concentrating Evaporator

             100kg-125kg/hour

    Steam Consumption

                 280kg/hour

    Water Circulation Capacity

                  15-25T

    Power of Vacuum Pump

                    4kw

    The time of extraction (h)

                         8

    Concentrate density (%)

                    1.2-1.35




















    500-1000L Herb Extraction Equipment In Stevia Hemp CBD Leaf Extraction And Concentration Line
    500-1000L Herb Extraction Equipment In Stevia Hemp CBD Leaf Extraction And Concentration Line
