Medicine Herb Extraction Equipment , Mini Concentrating Herb Extraction Machine

Medicine Herb Extraction Equipment , Mini Concentrating Herb Extraction Machine

    • Medicine Herb Extraction Equipment , Mini Concentrating Herb Extraction Machine
    • Medicine Herb Extraction Equipment , Mini Concentrating Herb Extraction Machine
    • Medicine Herb Extraction Equipment , Mini Concentrating Herb Extraction Machine
  • Medicine Herb Extraction Equipment , Mini Concentrating Herb Extraction Machine

    Product Details:

    Place of Origin: China
    Brand Name: LTPM China
    Certification: CE
    Model Number: LTN-Series

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: Negotiation
    Packaging Details: Wooden Case
    Delivery Time: In 30 days after receiving the deposit
    Payment Terms: 30% TT as deposit and 70% before shipping
    Supply Ability: 25 sets/Month
    Contact Now
    Detailed Product Description
    Power Of Vacuum Pump: 12kw Concentrate Density (%): 1.2-1.35
    The Volume Of Extracting: 6000L Name: Herb Extraction Machine
    Capacity Of Concentrating Evaporator: 1500kg/hour The Time Of Extraction (h): 0.6-4h



    Top Brand Herbal Medicine Extractor/Mini Extracting and Concentrating Equipment



    Product Application

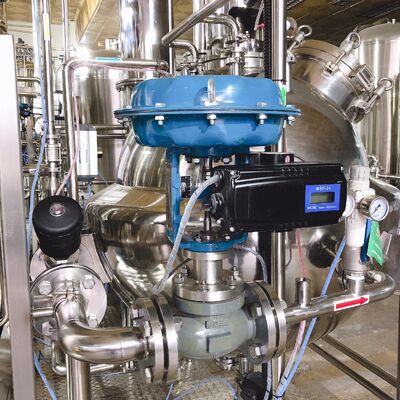

    This herb extractor and evaporator include heater, evaporator, filter, recycle tank, extractor, condenser, cooler, pipes, valves, meters, water-oil separator, filter, vacuum pump, transfer pump and control box and so on.



    Feature:



    1. This equipment has excellent manufacture,complete collocation,simple operation.It is consist of extracting tank,concentrated pot,storage tank for liquid material,condenser,oil-water separator, filter, delivery pump,vacuum pump and so on. We have steam heating and electric heating,the user can operate it only to engage the steam or electricity.
    2.This equipment collect extraction,vacuum concentration,solvent recovery together and it can realize the operation of normal temperature extraction,low temperature extraction,hot circumfluence,low temperature circumfluence,low temperature concentration and essential oil collection etc.
    3. The concentration proportion can get above to1.4 and the temperature can be controlled between 48-100°C freely,so it is espically suitable for some high heat-sensitivity material and some material is sensitive to high temperature.
    4. This equipment can configure with PLC control system according to user’s demand and control the parameter during the processing to enhance the production efficiency and quality.



    Main Technical Data:

    Model LTZN-1000
    Evaporation(kg/h) 1000
    Steam consumption(kg/h) 600
    Steam pressure(MPa) 0.05-0.09
    Vacuumization(MPa/ ℃)

    0.04mpa(85 ℃)





    Hempseed oil

    1. The appearance and characteristics are very close to the low iodine value of linseed oil, but slightly greenish.
    2. The approximate fatty acid composition is: 10.1% saturated acid, 16% oleic acid, 46% linoleic acid, and 28% linolenic acid.
    3. The acid value is 3 mg KOH/g, the iodine value is 149-167, and the relative density is 0.925-0.933 (15/15 ° C). The freezing point is about 16 °C.
    4. The main ingredients are glycerides of linoleic acid, linolenic acid and oleic acid.
    5. Used in industries such as paints and soaps.
