Automatic Herb Extraction Equipment Soya Bean Hemp Oil Extracting Machine

Automatic Extracting Machine Black Pepper Sunflower Sesame Soya Bean Hemp Oil Extracting Machine

Product Application
This Hemp CBD Ethanol Extraction Machine/Equipment is applicable for the multiple technology of normal pressure ,micro pressure,water frying ,warm soaking ,thermal reflux,compulsory circulation,filtration,redolent oil extraction and organically solvent recycling in traditional Chinese medicine,food and chemical industry. It is equipped with CIP cleaning device in the tank. solvent extraction.

Main Features

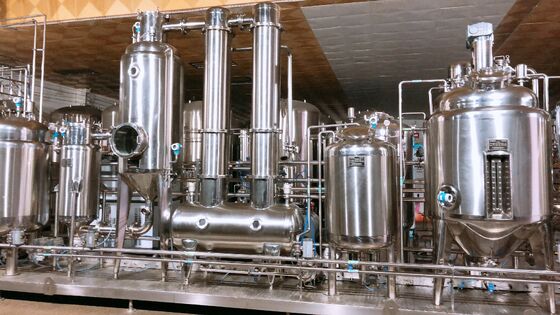

1. The Hemp CBD Ethanol Extraction Machine/Equipment consists of extractor, tubular heater, evaporator, condenser, oil-liquid separator, oil collector, medicine liquid pump, weighing vent, liquid storage tank, filter, vacuum pump, and electric cabinet. Defoamers are fixed in the steam outlet of the extractor and evaporator. The units without steam heating can be fixed with oil heating system.

2. It can be operate to hot recyling distill and condense, normal extraction, concentration, precipitation and percolation.

3. It can work in the condition of negative pressure, atm. and positive pressure. It can apply to distill water, ethanol and solvent, up to GMP standard.

4. The Hemp CBD Ethanol Extraction Machine/Equipment has great advantages in multi-function, high efficiency, energy saving, and wide operation arrange. It pioneers in comprehensive capacity in nationwide; it is the pilot equipment in distilling natural herbal medicine, especially fit for research institution, universities and collages, and factory pilot experiment, or distilling valued medicine, or low temperature fresh herbal. It has been widely used in factories.

Main Technical Data:

Hempseed oil

1. The appearance and characteristics are very close to the low iodine value of linseed oil, but slightly greenish.
2. The approximate fatty acid composition is: 10.1% saturated acid, 16% oleic acid, 46% linoleic acid, and 28% linolenic acid.
3. The acid value is 3 mg KOH/g, the iodine value is 149-167, and the relative density is 0.925-0.933 (15/15 ° C). The freezing point is about 16 °C.
4. The main ingredients are glycerides of linoleic acid, linolenic acid and oleic acid.
5. Used in industries such as paints and soaps.
