    Product Details:

    Place of Origin: China
    Brand Name: LTPM China
    Certification: CE
    Model Number: LTN-Series

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: Negotiation
    Packaging Details: Wooden Case
    Delivery Time: In 30 days after receiving the deposit
    Payment Terms: 30% TT as deposit and 70% before shipping
    Supply Ability: 25 sets/Month
    Contact Now
    Detailed Product Description
    Power Of Vacuum Pump: 12kw Concentrate Density (%): 1.2-1.35
    The Volume Of Extracting: 6000L Raw Material Input Capacity (kg): 600-800
    Capacity Of Concentrating Evaporator: 1500kg/hour The Time Of Extraction (h): 0.6-4h

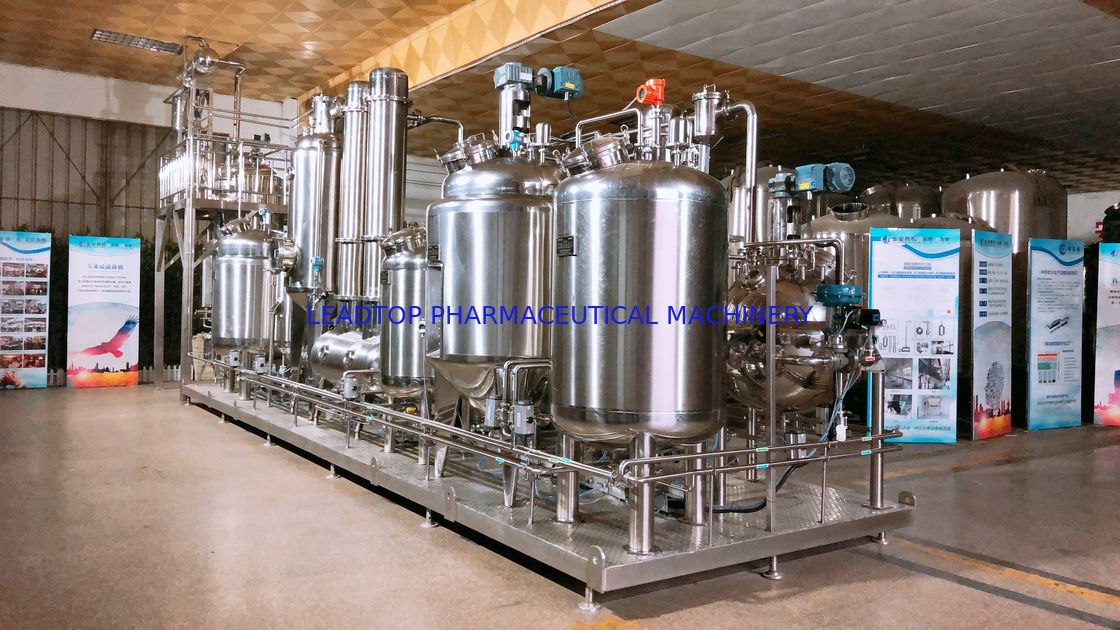

    Sanitary Herb Extraction Equipment Plant Extraction Concentration Pilot Machine



    Application :

    This equipment is suitable for extracting and concentrating the effective component from Chinese herbals and other botanical.



    Feature:

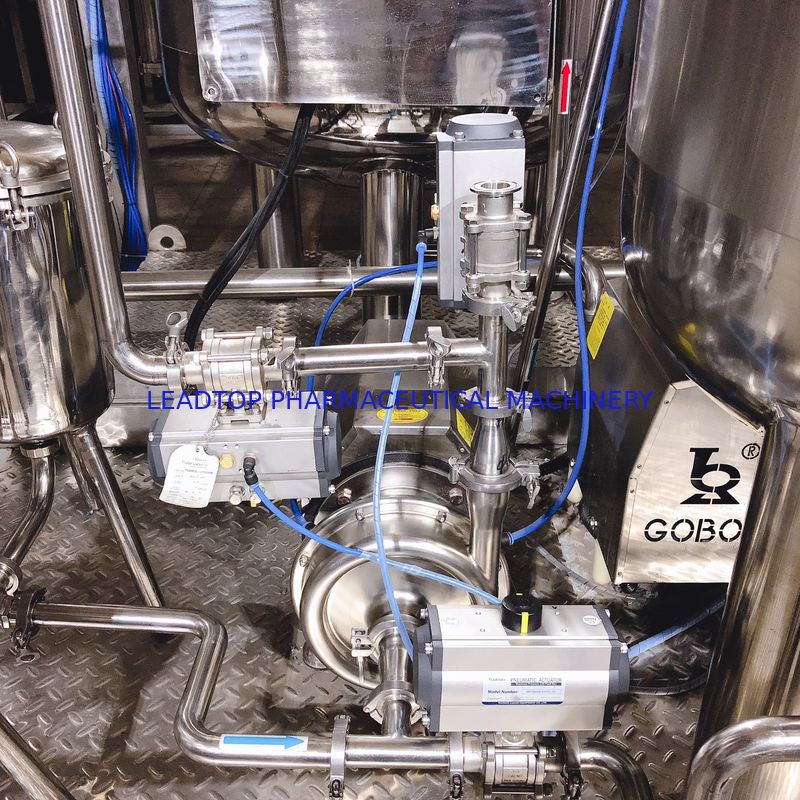

    1. This equipment has excellent manufacture,complete collocation,simple operation.It is consist of extracting tank,concentrated pot,storage tank for liquid material,condenser,oil-water separator, filter, delivery pump,vacuum pump and so on. We have steam heating and electric heating,the user can operate it only to engage the steam or electricity.
    2.This equipment collect extraction,vacuum concentration,solvent recovery together and it can realize the operation of normal temperature extraction,low temperature extraction,hot circumfluence,low temperature circumfluence,low temperature concentration and essential oil collection etc.
    3.The concentration proportion can get above to1.4 and the temperature can be controlled between 48-100°C freely,so it is espically suitable for some high heat-sensitivity material and some material is sensitive to high temperature.
    4.This equipment can configure with PLC control system according to user’s demand and control the parameter during the processing to enhance the production efficiency and quality.



    Main Technical Data:



    Manufacturer China LTPM Group Co., LTD
    PN 5L vacuum emulsifying mixer
    Capacity Design volume: 6L, working capacity:5 L
    Kettle Cover Liquid(particle)inlet, sunk material inlet, air inlet with filter, inspect light and sight glass, vacuum port, pressure meter(1 to -0.1 bar), pressure clamp







    Mixing pot



    Material

    Inner layer: SUS316L thickness: 3mm
    Middle layer: SUS304 thickness: 2mm
    Outside layer: SUS304 thickness:2mm



    configuration

    Bottom material exhaust, size: 1.5”
    Temp. sensor (0-199℃)
    Electrical heating: 2kw, cooling water inlet









    Stirring system



    Homogenizer

    1.Material: SUS316L; standard homogenizer

    2. Power: 1.1 kw/380/50Hz; RPM: 0--2800R/Min

    Stirring scrap and middle stirring Material: SUS316L,Scrap material: PTFE

    1. Stirring scrap and middle stirring use the same motor

    2,Power:0.75 kw/380V/50Hz;RPM:0~86r/min(Frequency control)

    3. Stirring scrap and middle stirring rotating the opposite direction

    Safety: 1. During stirring, the cover can not open, 2. Cover lift can not stirring.
    Vacuum system

    1. Vacuum pump: water recycle, power 0.37kw/380V/50Hz

    2. With pressure sensor (during vacuum condition, hydraulic can not open)

    Heating method Jacket electrical heating
    Exhaust method Electric doom and bottom discharge or positive pressure discharge material
    Pressure Pressure in the pot during working: -0.090 Mpa; Jacket working pressure:0.2 Mpa
    Control box SUS304 , 1.2mm thickness
    Dimension 1400mm×600mm×1900~2400 mm
    Shelf is SS, platform with raised platform and SS guardrail
    Spare parts One year spare parts and tools
    Guarantee One year
    Using life More than 15 years







    Oil pot

    Design volume 3.35L
    Working capacity 2.7L
    Stirring power 0.025kw
    Stirring speed 1400 RPM
    Heating power 1 Kw



    Water pot

    Design volume 3.35L
    Working capacity 2.7L
    Stirring power 0.025kw
    Stirring speed 1400 RPM
    Heating power 1 Kw
