    Product Details:

    Place of Origin: China
    Brand Name: LTPM China
    Certification: CE
    Model Number: LTN Series

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: Negotiation
    Packaging Details: Wooden Case
    Delivery Time: In 30 days after receiving the deposit
    Payment Terms: 30% TT as deposit and 70% before shipping
    Supply Ability: 25 sets/Month
    Contact Now
    Detailed Product Description
    After-sales Service Provided: Engineers Available To Service Machinery Overseas Raw Material Input Capacity: Ultrasonic Herb Extract Machine
    Power Of Vacuum Pump: 12kw Concentrate Density (%): 1.2-1.35
    The Volume Of Extracting: 6 Raw Material Input Capacity (kg): 600-800

    Sanitary Herb Extraction Equipment Plant Extraction Concentration Pilot Machine



    Application :

    This herb extractor is suitable for extracting component from herbs (leaves, root, flower or seed)like licorice, stevia, senna and so on and other botanical.It also can realize the solvent recovery and the essential oil collection and it is especially suitable for hospital, pharmaceutical factory, scientific research etc.



    Structure

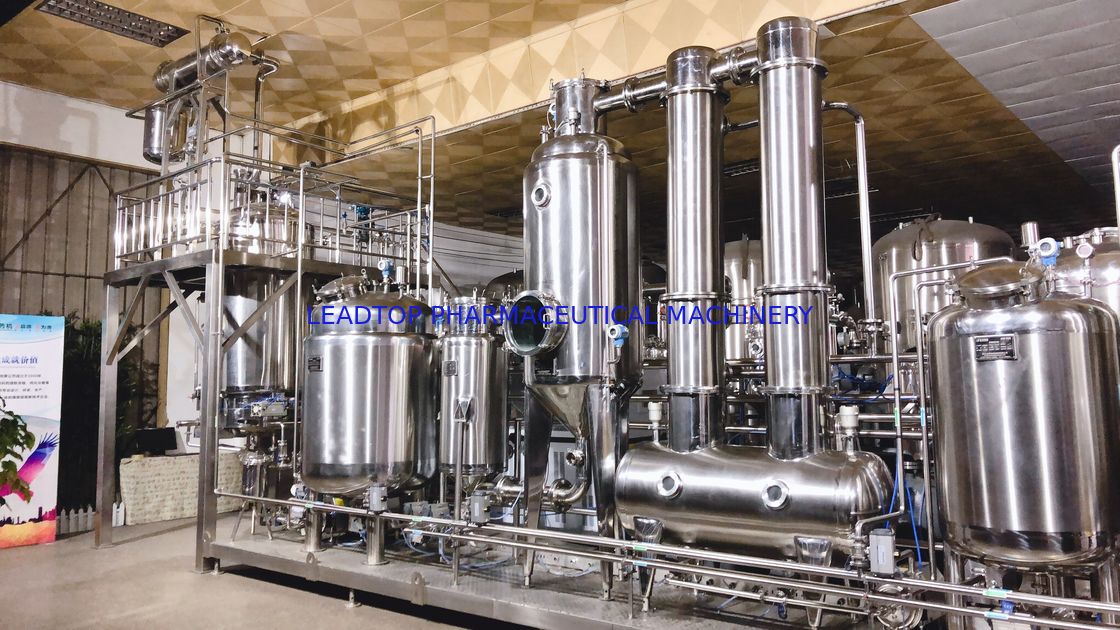

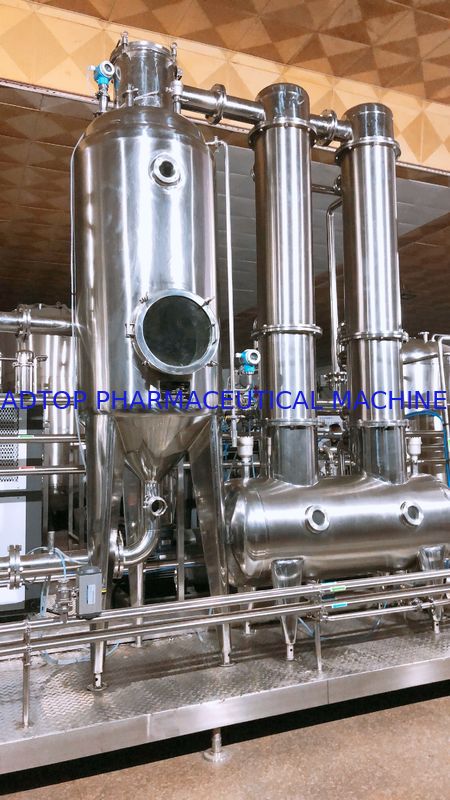

    This herb extractor and evaporator include heater, evaporator, filter, recycle tank, extractor, condenser, cooler, pipes, valves, meters, water-oil separator, filter, vacuum pump, transfer pump and control box and so on.

    Principle



    First you put the herb (leaves, root, flower or seed )into extractor,

    add water or other solvent( like alcohol) into extractor. Then heat the extractor, the component from herb will dissolved into water or solvent, after extraction, then pump the extracted liquid into the evaporator, evaporate the water or solvent( like alcohol) which will be cooled by condenser and flow to recycle tank , the solvent can be used again next time. the component in evaporator will became into cream or liquid which you need.

    Character:

    1. It is new type equipment at present, this equipment is specially suitable for medium pharmaceutical factory or big pharmaceutical factory, hospital, academe and so on.

    2 save time: the extracting and concentration can be operated at the same time, so it save much time, before the concentration should be operated after extraction.

    3 save energy: the steam from evaporator can heat the extractor directly so we can save 30% steam, so one year you can save money from steam which can buy one machine again.

    4 the extraction or concentration can be operated under vacuum, if the herb is sensitive to high temperature, so it can be operated under vacuum, so the herb can not be burned by high temperature, second the solvent can be evaporating under lower temperature if the machine is working under vacuum, so it will save time and energy too.

    5 all the machine have not dead corner, so it is good to clean and it is according GMP standard.

    6 all surface of the machine is mirror polished, so it is looks very beautiful.

    7 the temperature can be adjusted, you can adjust the temperature according to your requirement, for example you want to heat the machine 100degree, you just set the temperature 100degree, the heating can be stop when the temperature is 100degree, if it is lower 96degree, it can be heating again.



    Main Technical Data:



    Manufacturer China LTPM Group Co., LTD
    PN 5L vacuum emulsifying mixer
    Capacity Design volume: 6L, working capacity:5 L
    Kettle Cover Liquid(particle)inlet, sunk material inlet, air inlet with filter, inspect light and sight glass, vacuum port, pressure meter(1 to -0.1 bar), pressure clamp







    Mixing pot



    Material

    Inner layer: SUS316L thickness: 3mm
    Middle layer: SUS304 thickness: 2mm
    Outside layer: SUS304 thickness:2mm



    configuration

    Bottom material exhaust, size: 1.5”
    Temp. sensor (0-199℃)
    Electrical heating: 2kw, cooling water inlet









    Stirring system



    Homogenizer

    1.Material: SUS316L; standard homogenizer

    2. Power: 1.1 kw/380/50Hz; RPM: 0--2800R/Min

    Stirring scrap and middle stirring Material: SUS316L,Scrap material: PTFE

    1. Stirring scrap and middle stirring use the same motor

    2,Power:0.75 kw/380V/50Hz;RPM:0~86r/min(Frequency control)

    3. Stirring scrap and middle stirring rotating the opposite direction

    Safety: 1. During stirring, the cover can not open, 2. Cover lift can not stirring.
    Vacuum system

    1. Vacuum pump: water recycle, power 0.37kw/380V/50Hz

    2. With pressure sensor (during vacuum condition, hydraulic can not open)

    Heating method Jacket electrical heating
    Exhaust method Electric doom and bottom discharge or positive pressure discharge material
    Pressure Pressure in the pot during working: -0.090 Mpa; Jacket working pressure:0.2 Mpa
    Control box SUS304 , 1.2mm thickness
    Dimension 1400mm×600mm×1900~2400 mm
    Shelf is SS, platform with raised platform and SS guardrail
    Spare parts One year spare parts and tools
    Guarantee One year
    Using life More than 15 years







    Oil pot

    Design volume 3.35L
    Working capacity 2.7L
    Stirring power 0.025kw
    Stirring speed 1400 RPM
    Heating power 1 Kw



    Water pot

    Design volume 3.35L
    Working capacity 2.7L
    Stirring power 0.025kw
    Stirring speed 1400 RPM
    Heating power 1 Kw

    Sanitary Herb Extraction Equipment Plant Extraction Concentration Pilot MachineSanitary Herb Extraction Equipment Plant Extraction Concentration Pilot Machine
