Automatic Pharmaceutical Machines Bottle Liquid Filling Capping And Labeling Machine

Automatic Pharmaceutical Machines Bottle Liquid Filling Capping And Labeling Machine

    • Automatic Pharmaceutical Machines Bottle Liquid Filling Capping And Labeling Machine
    • Automatic Pharmaceutical Machines Bottle Liquid Filling Capping And Labeling Machine
  • Automatic Pharmaceutical Machines Bottle Liquid Filling Capping And Labeling Machine

    Product Details:

    Place of Origin: China
    Brand Name: LTPM China
    Certification: CE, GMP
    Model Number: CZP-12B

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: Negotiation
    Packaging Details: Export standard wooden case
    Delivery Time: 25days
    Payment Terms: L/C, T/T
    Supply Ability: 25sets/month
    Contact Now
    Detailed Product Description
    After-sales Service Provided: Engineers Available To Service Machinery Overseas Range: 100ml-1000ml
    Speed: 500-3600bottles/hour Measurement Precision: ±1%
    Working Air Pressure: 6-7kg/cm2 Air-consuming Amount: 0.5



    Automatic Pharmaceutical Machines Bottle Liquid Filling Capping And Labeling Machine



    Quick Details:



    The machine is suitable for filling different type of liquid under 50-1000ml volume.

    The capacity is 200-3600bottles/hour.

    Description:

    The CZP-12 Automatic Liquid filling and capping machine is high-tech filling equipment integrating on the PLC microcomputer programmable control, and photo electricity transduction pneumatic action. The machine is especially suitable for foodstuff. For example: white spirit, soy sauce, vinegar, seasoning, vegetable oil, syrup, mineral water, edible liquid as well as chemical liquid. It has accurate filling measurement; there is not bubble and drop. It suits for the filling of all kinds of bottle (including irregular bottle) ranging from 50 to 1000 ml.

    Application:

    The machine special for filling liquid such as, suspend liquid, mineral water, alcohol, vinegar, soy sauce, oil, syrup, etc.

    Specification:



    Type CZP-12B
    Range 100ml-1000ml
    Speed 500-3600bottles/hour
    Measurement precision ±1%
    Rated power 0.8KW
    Working voltage 220V
    Working air pressure 6-7kg/cm²
    Air-consuming amount 0.5m³/minute
    Net weight 650kg
    Contour Sizes 2000×870×2300mm



    Competitive Advantag

    1.Advanced design

    • The machine suits for the filling of different sizes of vessel may change the filling sizes within a few minutes.
    • Short filling circle, high production capacity.
    • Changing filling circle, high production capacity.
    • User may choose the filling volume and decide the filling heads per own production capacity.
    • The touching operation color screen, can display the production state, operation procedures and filling ways, tableau objective, operation simple and maintenance convenient.
    • Each filling-head is equipped with a bottle-mouth-clamping device, ensuring the injecting material correct aiming at.

    2. Unique filling way

    • Selecting straight bottle-feeding and bottle-discharging in group, make the filling function extend, the vessels of all kinds of shape are got effective filling.
    • Using the world advanced gas filling valve, ensure the filling process non-drop and non-drool.
    • Stronger PLC software support, may realize the ideal filling operation.
    • Friendly person-machine interface, all operations are completed on the touching color screen.

    3. Accurate measurement control

    • Using fixed sprue parameter to control the filling time realizing the filling of the different measurements.
    • The precision time of the pneumatic valve filling may set to 0.01 second, can make the measurement precision control within ±1%, to decrease unnecessary material loss and enhance the economic efficiency.
    • Each filling-head’s measurement may be individually adjusted to realize the same filling measurement.
    • The machine set such function: having counting program of bottle-feeding, doesn’t fill as there is not bottle or the counting doesn’t attain a predetermined position, can start filling only when the counter records that the bottle number is same as the setting filling number.
    • More or less of the filling volume, may initially adjust to the needed filling volume, then micro adjust, can get the ideal filling measurement precision.

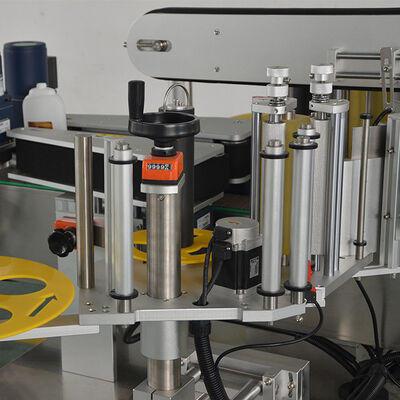

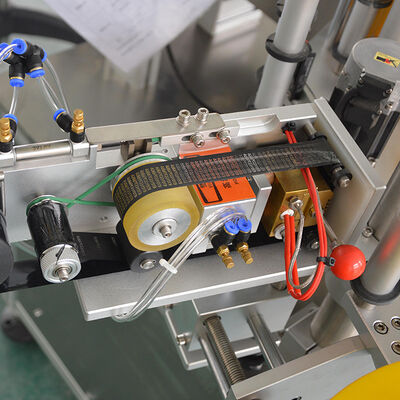

    Mechanical picture

    Automatic Pharmaceutical Machines Bottle Liquid Filling Capping And Labeling Machine
