Place of Origin:
China
Brand Name:
LTPM China
Certification:
CE
Model Number:
LTN Series
Contact Us

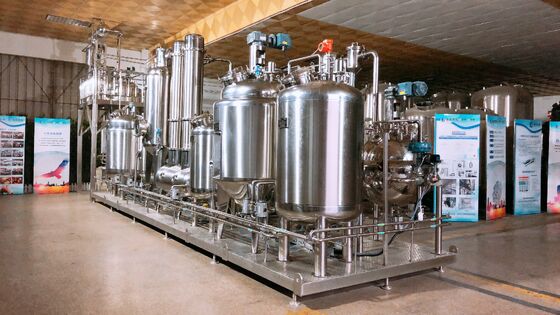

Ultrasonic solvent extraction machine,as our core products,has agglomerated many new technologies such as ultrasonic extraction,dynamic counter-flow extraction,low temperature concentration,high efficient recovery of organic solvent,specific machanic seals etc.The machine realizes fast extraction production under low and normal temperature through the whole process.It is used most suitable for extracting and producing in different scale of heat sensitive extracts by organic solvent.
1.Used for essential oil making
2.Wide using for plant essential oil making
3.Combine ultrasonic,water,alcohol and other organic solvent extraction
Hempseed oil
The appearance and characteristics are very close to the low iodine value of linseed oil, but slightly greenish.
The approximate fatty acid composition is: 10.1% saturated acid, 16% oleic acid, 46% linoleic acid, and 28% linolenic acid.
The acid value is 3 mg KOH/g, the iodine value is 149-167, and the relative density is 0.925-0.933 (15/15 ° C). The freezing point is about 16 °C.
The main ingredients are glycerides of linoleic acid, linolenic acid and oleic acid.
Used in industries such as paints and soaps.
Feature:

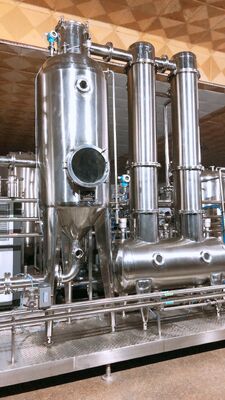

1. This equipment has excellent manufacture,complete collocation,simple operation.It is consist of extracting tank,concentrated pot,storage tank for liquid material,condenser,oil-water separator, filter, delivery pump,vacuum pump and so on. We have steam heating and electric heating,the user can operate it only to engage the steam or electricity.,
2.This equipment collect extraction,vacuum concentration,solvent recovery together and it can realize the operation of normal temperature extraction,low temperature extraction,hot circumfluence,low temperature circumfluence,low temperature concentration and essential oil collection etc.
3.The concentration proportion can get above to1.4 and the temperature can be controlled between 48-100°C freely,so it is espically suitable for some high heat-sensitivity material and some material is sensitive to high temperature.
4.This equipment can configure with PLC control system according to user’s demand and control the parameter during the processing to enhance the production efficiency and quality.
Machine Main Technical Data:
| Model |
LTN -0.1/25 |
LTN- 0.2/50 |
LTN- 0.3/75 |
LTN- 0.5/125 |
LTN -1/250 |
LTN -2/500 |
LTN-3 /750 |
LTN-4/1000 | LTN5/1250 | LTN6/1500 | |
| The volume of extracting (m³) | 0.1 | 0.2 | 0.3 | 0.5 | 1 | 2 | 3 | 4 | 5 | 6 | |
| Raw Material Input Capacity (kg) | 10-15 | 20-30 | 30-45 | 50-70 | 100-150 | 200-300 | 300-450 | 400-600 |
500- 700 |
600- 800 |
|
| Capacity of Concentrating Evaporator |
25 kg/ hour |
50 kg/ hour |
75 kg/ hour |
125 kg/ hour |
250kg /hour |
500 kg/hour |
750 kg/hour |
1000 kg/hour | 1250 kg/hour |
1500 kg/ hour |
|
| Water Circulation Capacity | 10-15T | 10-15T | 10-15T | 10-15T | 15-20T | 15-20T | 15-25T | 15-25T | 20-30T | 20-30T | |
| The time of extraction (h) | 6-8 | 6-8 | 6-8 | 6-8 | 8 | 8 | 8 | 8 | 8 | 8 | |
| Concentrate density (%) | 1.2-1.35 | ||||||||||
| The work temperature of extracting and concentrating (°C) | Water: 50-90°C Alcohol: 40-80°C | ||||||||||
| Power of Vacuum Pump | 3kw | 4KW | 4.5KW | 5KW | 6.5kw | 8KW | 9kw | 10kw | 11kw | 12kw | |
