|Place of Origin:||China|
|Brand Name:||LTPM China|
|Model Number:||LTN Series|
|Minimum Order Quantity:||1set|
|Packaging Details:||Wooden Case|
|Delivery Time:||In 30 days after receiving the deposit|
|Payment Terms:||30% TT as deposit and 70% before shipping|
|Supply Ability:||25 sets/Month|
|After-sales Service Provided:||Engineers Available To Service Machinery Overseas||Raw Material Input Capacity:||Ultrasonic Herb Extract Machine|
|Power Of Vacuum Pump:||12kw||Concentrate Density (%):||1.2-1.35|
|The Volume Of Extracting:||6||Raw Material Input Capacity (kg):||600-800|

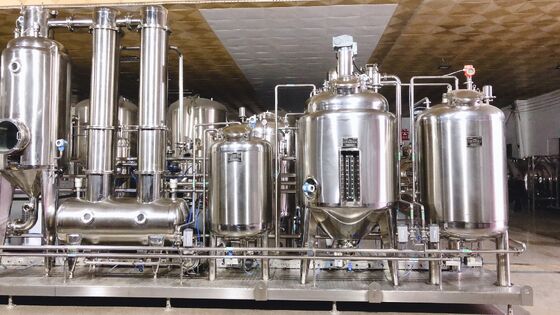

This Low Temperature Ethanol Hemp Oil Extraction Machine is applicable for the multiple technology of normal pressure ,micro pressure,water frying ,warm soaking ,thermal reflux,compulsory circulation,filtration,redolent oil extraction and organically solvent recycling in traditional Chinese medicine,food and chemical industry. It is equipped with CIP cleaning device in the tank. solvent extraction
1.It adopts the steam distillation tank for waterextraction(wet steaming), heated by jacket and steam generator.
2.It can completelyeliminate rust taste, and the color difference technology problems of fragrantessential oil.
3.Please mixing at regular time when the wetsteaming, make the herbal(such as rose and water fully mixed) and improve thefinished oil rate.
4.Make the vapor liquid cooling more rapidlyand thoroughly though the condenser and the cooler.
5.The high precision innersurface makes the oil condensate flow smoothly. Whole body stainless steel, save area andeasy operation.
2.Health care products applications
3.Application in traditional Chinese medicine
5.Pesticide residue analysis in the application
- Put the prepared materials into the extracting tank, and add solvent 5-10 times the volume of the materials ( the actual type and the amount of solvent is according to the process requirement).
- After soaking for a certain while, open the steam valve to heat up, normally by jacket heating, steam heating is only for water extraction and drawing aromatic oil.
- After cooking for a certain while, pump the extraction solution into the concentrator.
- The steam produced during concentration goes to the condenser and is cooled down into condensate, and will go to the extracting tank as new solvent. And the secondary steam produced in the extracting tank is also cooled down by the condenser and falls back into the extracting tank. All the secondary steam produced will be fully used.
The appearance and characteristics are very close to the low iodine value of linseed oil, but slightly greenish.
The approximate fatty acid composition is: 10.1% saturated acid, 16% oleic acid, 46% linoleic acid, and 28% linolenic acid.
The acid value is 3 mg KOH/g, the iodine value is 149-167, and the relative density is 0.925-0.933 (15/15 ° C). The freezing point is about 16 °C.
The main ingredients are glycerides of linoleic acid, linolenic acid and oleic acid.
Used in industries such as paints and soaps.
Machine Main Technical Data:
|The volume of extracting (m³)||0.1||0.2||0.3||0.5||1||2||3||4||5||6|
|Raw Material Input Capacity (kg)||10-15||20-30||30-45||50-70||100-150||200-300||300-450||400-600||500-700||600-800|
|Capacity of Concentrating Evaporator||
|75 kg/hour||125 kg/hour||
|1000 kg/hour||1250 kg/hour||1500 kg/hour|
|Water Circulation Capacity||10-15T||10-15T||10-15T||10-15T||15-20T||15-20T||15-25T||15-25T||20-30T||20-30T|
|The time of extraction (h)||6-8||6-8||6-8||6-8||8||8||8||8||8||8|
|Concentrate density (%)||1.2-1.35|
|The work temperature of extracting and concentrating (°C)||Water: 50-90°C Alcohol: 40-80°C|
|Power of Vacuum Pump||3kw||4KW||4.5KW||5KW||6.5kw||8KW||9kw||10kw||11kw||12kw|
