Small Automatic Blister Packing Machine Pharmaceutical Equipment 380V 50HZ

Name: Small Automatic Blister Packing Machine Pharmaceutical Equipment 380V 50HZ
Brand: Leadtop Pharmaceutical Machinery
SKU: DPP-88
Price: 26800 USD
Availability: InStock

Brand Name:	LTPM
Model Number:	DPP-88
MOQ:	1 SET
Price:	26800
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	25 SETS Per month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Model:

DPP-88

Capacity:

45cutting/min

Packaging Type:

Alu/PVC And Alu/Alu Package

Control System:

Micro Computer

Feeding::

Universal Feeder

Power:

2.2kw

Packaging Details:

wrapped with strech film packed into Export Standard Wooden case, this package afford long time sea shipment and anti moisture.

Supply Ability:

25 SETS Per month

Highlight:

blister packaging equipment

tablet blister packing machine

Product Description

DPP-88 Small Aluminum Plastic Blister Packing Machine Automatic Aluminum Plastic 380V 50HZ

Product Description

The machine is new product which is improved based on customer’s requirements. It’s suitable for packaging of all kinds of liquid and solid in large & medium pharmaceutical factory, health medicine factory, hospital preparation lab, food industry, electronic industry, hardware industry, etc. It can protect the material from steam or dust, improve product packing degree, and increase the additional value. The machine is used to produce large quality and single product. Both Alu Alu and Alu PVC are available by changing mould!

Description:

1. Travel scope can be adjusted.

2. Alu Alu Blister Packaging is available for this machine.

3. Mould is located by locating groove which makes it easy to change mould. The machine heats the PVC through conduction and forms it through pressing and frothing.

4. The material is fed automatically. The mould and feeder can be designed as user’s requirements.

5. Speed is shifted by step-less transducer. Adopt the interface of human-machine and PLC programmable controller, it can synchronize accurately.

6. Adopt the equipment of trace pressing, batch number printing and scarp-collecting.

7. Stepping motor Pulling Material more accuracy and easy adjusting

8. The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machine’s life.

Applications:

Specifications:

MODEL:	DPP-250
Blanking frequency (Cutting/min):	15-50
Sheet's quantity of one blanking (sheets):	1-4
Capacity (sheets/hour):	12,000
Adjustable scope of feed travel: (mm)	10-160
Max Forming area and depth (mm)	270×120×25
Capacity of air compressor(m3/min):	≥0.36
Power supply:	380V AC, 50 Hz, Three Phase
Total Power	8Kw
Wrapper specification (mm): PVC Film Blister foil Alu Alu Foil	Max.270× (0.15-0.5) Max.270× (0.02-0.035) Max. 270*(0.11-0.25)
Weight (kg):	1260Kg

Competitive Advantage:

1. we have seven technicians who gets passport ready to travel all over world to offer service to you.

2. We have 24hours hot line for Technical Support.

3. We get 18hours internet line for technical support.

4. Video camera in workshop to help you adjust and solve machine problem in working situation.

5. We have Technical Support in below Foreign Cities:

California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Laho(Distributor)

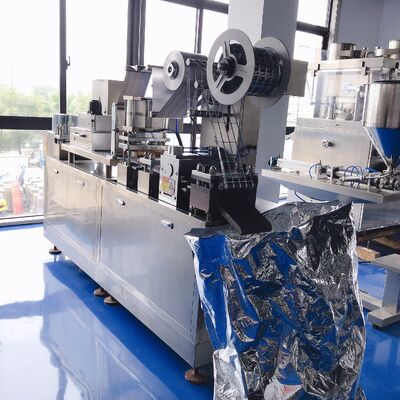

Small Automatic Blister Packing Machine Pharmaceutical Equipment 380V 50HZ 0

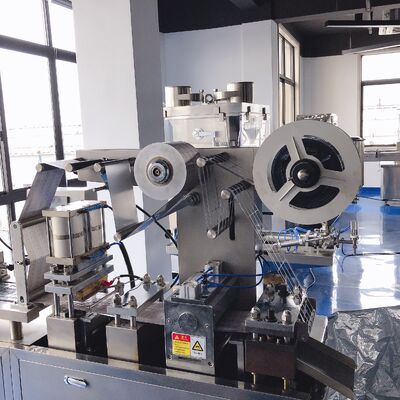

Small Automatic Blister Packing Machine Pharmaceutical Equipment 380V 50HZ 1
