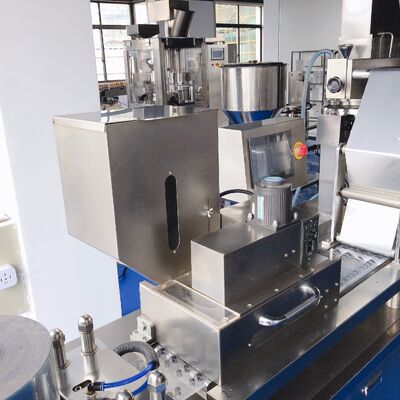

Alu PVC And Alu Alu Blister Packing Machine , Pharma Equipment Automatically

Alu PVC And Alu Alu Blister Packing Machine , Pharma Equipment Automatically

    • Alu PVC And Alu Alu Blister Packing Machine , Pharma Equipment Automatically
    • Alu PVC And Alu Alu Blister Packing Machine , Pharma Equipment Automatically
  • Alu PVC And Alu Alu Blister Packing Machine , Pharma Equipment Automatically

    Product Details:

    Place of Origin: China
    Brand Name: LTPM CHINA
    Certification: CE
    Model Number: DPP-320

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Wooden Case
    Delivery Time: In 25 days after receiving the deposit
    Payment Terms: 30% TT as deposit and 70% before shipping
    Supply Ability: 25 sets
    Contact Now
    Detailed Product Description



    ALU / PVC / ALU Automatic Blister Packing Machine For Tropical Blister Packaging With GMP Standard



    Description:



    1. Travel scope can be adjusted.

    2. Alu Alu Blister Packaging is available for this machine.

    3. Mould is located by locating groove which makes it easy to change mould. The machine heats the PVC through conduction and forms it through pressing and frothing.

    4. The material is fed automatically. The mould and feeder can be designed as user’s requirements.

    5. Speed is shifted by step-less transducer. Adopt the interface of human-machine and PLC programmable controller, it can synchronize accurately.

    6. Adopt the equipment of trace pressing, batch number printing and scarp-collecting.

    7. Stepping motor Pulling Material more accuracy and easy adjusting

    8. The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machine’s life.



    Applications:



    The machine is new product which is improved based on customer’s requirements. It’s suitable for packaging of all kinds of liquid and solid in large & medium pharmaceutical factory, health medicine factory, hospital preparation lab, food industry, electronic industry, hardware industry, etc. It can protect the material from steam or dust, improve product packing degree, and increase the additional value. The machine is used to produce large quality and single product.



    Main Technical Data:

    Model: DPP-250S DPP-350F
    Punch Speed: 10-50 time/min 10-35time/min
    Forming Area: Alu PVC:250*120*18mm Alu PVC:350*120*25mm
    Alu Alu: 250*120*15mm Alu Alu: 320*120*15mm
    Travel Range: 10-120mm 10-120mm
    Compressed Air: 0.4MPA-0.6MPA
    Power: 380V 50Hz 9Kw
    Wrapper Specification: Aluminum Foil:(0.02-0.035)*250mm Aluminum Foil:(0.02-0.035)*350mm
    Tropical Aluminum: Tropical Aluminum:
    (0.09-0.15)*250mm (0.09-0.15)*350mm
    PVC: (0.15-0.5)*250mm PVC: (0.15-0.5)*350mm
    Overall dimensions (mm): 3690×650×1650 3890*7150*1700
    Weight (kg): 1800Kg 2000kg



    Feature:

    l Travel scope can be adjusted.

    l Mould is located by locating groove so that it’s easy to change mould. Adopt the moulds of pressing-and-frothing and cool-forming.

    l The material is fed automatically. The mould and feeding equipment can be designed as user’s requirements.

    l Speed is shifted by step-less transducer. Adopt the interface of human-machine and PLC programmable controller.

    l Adopt photoelectric empty-detecting equipment and waster-eliminating equipment.

    l Servo motor drive wheel to grip and tow wrapper, synchronize accurately. And it will be not waste of time and material for adjusting when restart the machine.

    l The machine equipped Camera Cell for sensor, make the length in an accurate number.

    l The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machine’s life.

    Alu PVC And Alu Alu Blister Packing Machine , Pharma Equipment Automatically

    Alu PVC And Alu Alu Blister Packing Machine , Pharma Equipment Automatically





    Alu PVC And Alu Alu Blister Packing Machine , Pharma Equipment Automatically

    Alu PVC And Alu Alu Blister Packing Machine , Pharma Equipment Automatically
