Product Details:

Place of Origin: china
Brand Name: LTPM CHINA
Certification: CE
Model Number: DTJ-V

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation

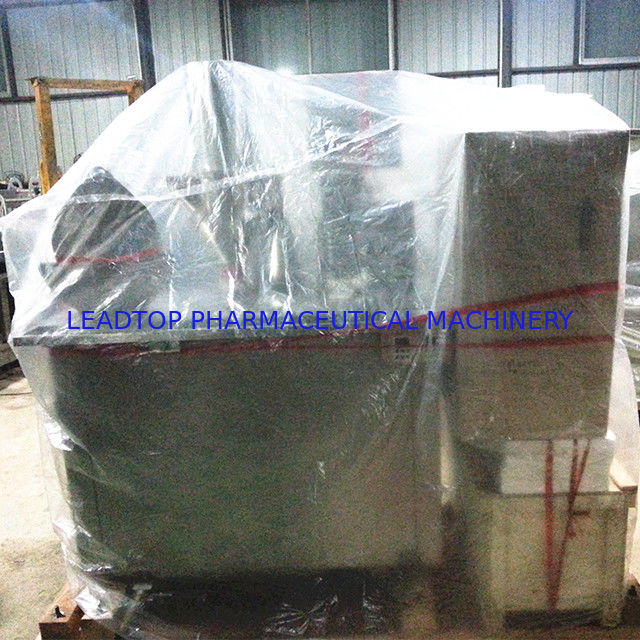

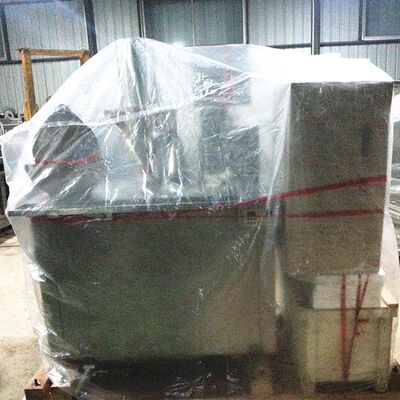

Packaging Details: Wooden Case
Delivery Time: In 25 days after receiving the deposit
Payment Terms: 30% TT as deposit and 70% before shipping
Supply Ability: 25 sets/Month
Get Best Price Contact Now

Detail Information

Filling Object: Pellet And Powder Are Both Available Capsule Size: 00#,0#,1#,2#,3#,4#,5# Are Available
Operation: Semi Auomatic Speed: Adjutable
Capacity: Around 200cpsules/min
High Light:

capsule filler machine

,

automatic capsule filler

Product Description

Semi Automatic Capsule Filling And Sealing Machine Adjutable Speed Big Capacity



Semi Automatic Capsule Filling And Sealing Machine Adjutable Speed Big Capacity

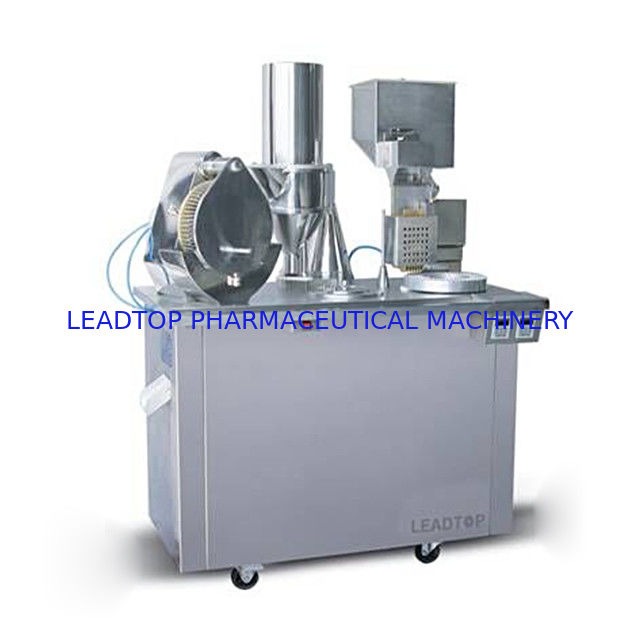

Capsule Filling and Sealing Machine

Simple Instruction
DTJ-V Semi-Automatic Capsule Filling Machine is special capsule filling machine which is suitable for medium and small pharmaceutical factory, hospital preparation lab, etc. The machine adopted programmable control system, touch panel operation, stepless transduction speed-shift, and electronic automatic counter. And it automatically completes the action of position, separation, filling, locking, etc. The dosage is accurate, and the operation is convenient. The overall machine is made of stainless steel, and it is suitable for the capsule which is filled with powder and grain.

Main Technical Data:

Model: DTJ-V
Capsule Size: #00,#0, #1, #2, #3, #4, #5
Vacuum Pump: XD-040(40m³/hour)
Capacity Of air compressor: 0.1m³/min
Noise: Less than 60dB (A)
Overall Dimensions: 1200*700*1600mm
Packing Dimensions: 1800*800*1800mm
Net Weight: 330Kg
Gross Weight: 525Kg
Capacity: 120000capsules/hour
Power Supply: 220V 50Hz



Main Maine Feature:

Feature:
1. This machine is made in Ruian Leadtop Pharmaceutical Machinery Factory which specialized in Manufacturing Pharmaceutical Machinery.
2. It adopts Cycloid Motor for making machine in lowest sound running. There three Cycloid Motor in this machine.
3. DTJ-V adopts Touch Button for operating. It will be hard for making powder into Controlling System.
4. Easy for Changing Mould from Size 00 to 5#.

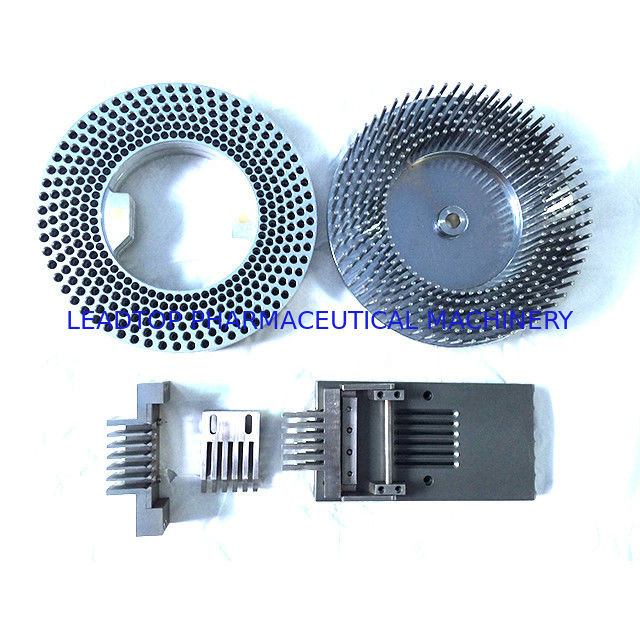

5. The machine is whole Body stainless steel. Capsule Feeder is Copper, Capsule Disk is Aluminum Disk, Capsule Locking position Copper. (For Detailed please see following Mould List)
6. We call the Semi Automatic Capsule Filling Machine operating THREE STEPS, Operator is easy to know how to Separate Capsules, Filling Capsules, Locking Capsules means Output.









For More informations,please contact us by mail or telephone.

LTPM CHINA, Your best Pharmaceutical Production Solution!
