Place of Origin:
china
Brand Name:
LTPM CHINA
Certification:
CE
Model Number:
NJP-1000
Contact Us

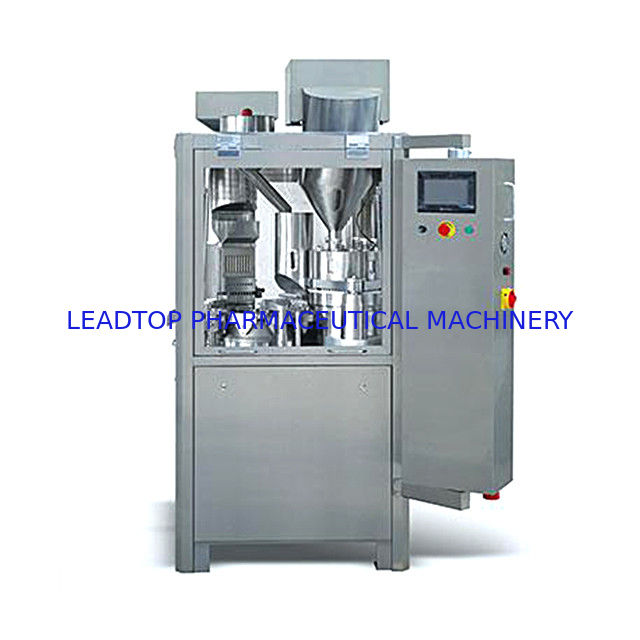

| NJP-1000 Automatic Laboratory Capsule Filling Machine |
| MODEL | 1000 |
| Output(pcs./min) | 1000 |
| No. of segment bores | 8 |
| Applicable Capsule Size | 00#-5# |
| Applicable Filling Object | Powder and granular ( Pellets is available) |
| Operation System | Touch screen (Button operation is available) |
| Dosage | Different Dosages are available by changing dosage disk |
| Power Supply | Customerized |
| Total Power | 3.2KW |
| Overall Weight | 1000Kg |
| Overall Dimension(mm) | 1020×870×1980mm |
Feature:
It has been improved the inner design turret, and imports beeline bearings for each machine from Japan directly, so that it can be sure a longer usage-life and precision of machine.
The working station cam runs under the good lubricating condition, and maintains the inner lubrication of cam slot to a full extent, increasing the pressure pulverization oil pump, thus extends the operation life of the spare parts.
It adopts enlarged Cam, LTPM CHINA has become the one who matches the cam of RU100 to Ru83, while it enhances the stability of the machines and extends the life of the machines to a great extent.
It is controlled by the computer, has a stepless timing with the frequency-conversion, the numeral showing makes an easy operation and clear appearance.
Adopt Plane Spring for filling powder, this type spring can afford TWO BILLION TIMES Pressing, but never changed overall dimension. So it makes the Weight of Powder filling in an accuracy number.
Automatic Capsule Switch operated by Touch Screen avoid Dangerous Accident happens when open the switch by hand into the working station.
Our quality machine use Tanshing Cam box, in automatic capsule filling machine area Honest Business is the most important, Because Customers can’t see the mechanical parts inside. So our company can promise we use the real type but never “labeling type”.
The multi-bore dosing brings a precision dosage (it is controlled around ±0.75%); the good capsule applicability makes a higher capsule qualified rate .It can be filled with the Chinese traditional medicine and the Western medicine.
Add the extra function of capsule control switch. (Control the capsule outside of the machine; it is more safely and quickly).
Add the click-moving control system, makes an easier operation and clearness.
LTPM China, Your Best Pharmaceutical Production Solution.
For more informations, please contact us by mail or telephone. We offer 24hours service, Your free Capsule Production Consultant!
LTPM CHINA, Your Best Pharmaceutical Production Solution!
