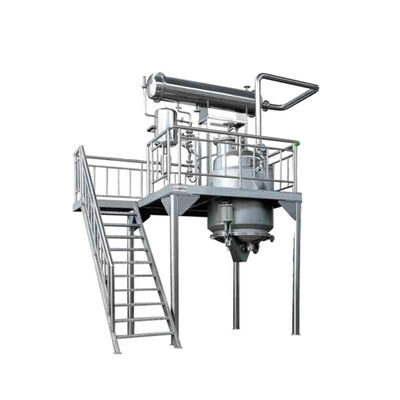

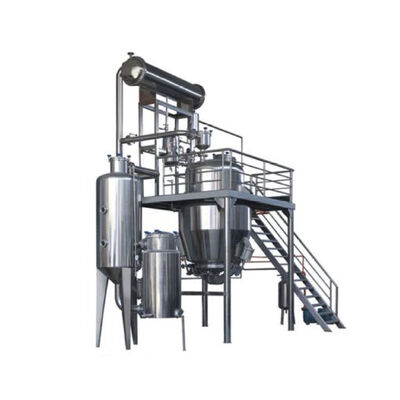

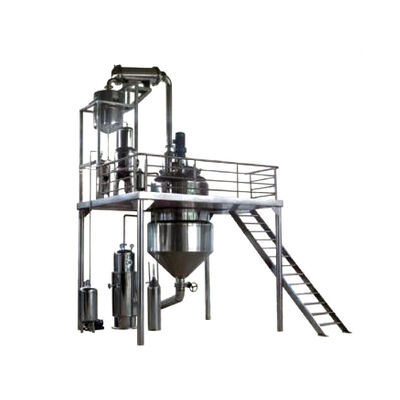

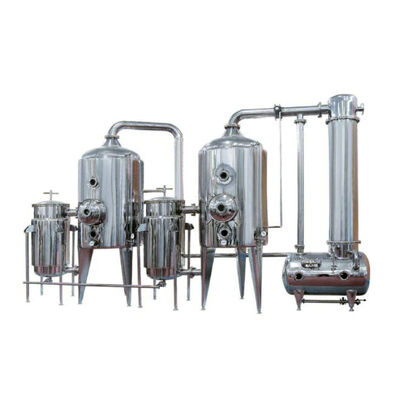

Multifunctional Miniature Herbal Extraction Equipment And Concentration Machine

Multifunctional Miniature Herbal Extraction Equipment And Concentration Machine

Product Details:

Place of Origin: China
Brand Name: LTPM China
Certification: CE
Model Number: TQ.Z-3M3

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: In 30 days after receiving the deposit
Payment Terms: 30% TT as deposit and 70% before shipping
Supply Ability: 25 sets/Month
Get Best Price Contact Now

Detail Information

Conventrating Quantity: 150 Raw Material Input Capacity: 50-70kg
The Volume Of Extacting: 0.5 Steam Consumption: 200kg/hour
Water Circulation Capacity: 8-15T Warranty: 1 Year
High Light:

herbal extraction equipment

,

concentration machine

Product Description





          High Efficiency Low Temperature Extraction and                                concentration system  Machine





Specifications

1.Saving solvent
2.Saving time
3.Low-energy consumption
4.High automatic
5.Quality of distilled medicine is greatly improved

Use:

Heat Reflux Extracting Concentrator is mainly used for extraction, concentration, ointment receiving in such fields as Chinese herbal, animal, and plant, as well as for alcohol recovery and volatile oil extraction.



Component

1) The equipment is compact conformed and integrated with extraction, volatile oil recovery, concentration, ointment receiving, and solvent recovery.

2) Synchronous Extraction and concentration shorten the technical process and production period, increasing the operation rate of the equipment.



Advantage

1) Add the solvent once for all, with the consumption lowered by more than 40%. With hot reflux, forced circulation and sox let extraction integrated, the solute keeps high gradient in the solvent, increasing the receiving rate by 10 to15%.



2) Connecting and reusing the condenser make the equipment compact-conformed and bring each part into full play. Without increasing investment of the device, Both the reflux and solvent recovery can be reached to good effect.



3) New technology and new materials are utilized for excellent performance of unit. The areas of the unit contacting with medical liquids and solvents in instruments, equipments and pipes, are made of superior stainless steel.









No.

Item

Model

Material

No.

Item

Model

Material

1

Extracting Tank

TQ.Z—3M3

SUS304

11

Heater



SUS304

2

Warming Jacket



SUS304

12

Warming Jacket



SUS304

3

Polyaminocarboxylic Foam Material



SUS304

13

Evaporator



SUS304

4

Oil and water separator



SUS304

14

Controlling Cabinet

Vertical

PLC and touch screen

5

De-bubble Device



SUS304

15

Valves and viewing glass

DN40~DN25

SUS304

6

Condenser



SUS304

16

Connection Pipes

DN40~DN25

SUS304

7

Medium Tank



SUS304

17

Vacuum Pump

2BV5110

SUS304

8

Vacuum Transformer



SUS304

18

Vacuum Buff Tank



SUS304

9

Vacuum Transition Tank



SUS304

19

Air Compressor

0.17M3/0.7Mpa

SUS304
