Self Adhesive Sticker Automatic Round Bottle Labeling Machine With Big Capaciy

Self Adhesive Sticker Automatic Round Bottle Labeling Machine With Big Capaciy

    • Self Adhesive Sticker Automatic Round Bottle Labeling Machine With Big Capaciy
    • Self Adhesive Sticker Automatic Round Bottle Labeling Machine With Big Capaciy
    • Self Adhesive Sticker Automatic Round Bottle Labeling Machine With Big Capaciy
    • Self Adhesive Sticker Automatic Round Bottle Labeling Machine With Big Capaciy
    • Self Adhesive Sticker Automatic Round Bottle Labeling Machine With Big Capaciy
    • Self Adhesive Sticker Automatic Round Bottle Labeling Machine With Big Capaciy
  • Self Adhesive Sticker Automatic Round Bottle Labeling Machine With Big Capaciy

    Product Details:

    Place of Origin: China
    Brand Name: LTPM China
    Certification: CE, GMP
    Model Number: MT-200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: Negotiation
    Packaging Details: Export standard wooden case
    Delivery Time: 25days
    Payment Terms: L/C, T/T
    Supply Ability: 25sets/month
    Contact Now
    Detailed Product Description
    Usage: Round Bottle Label: Single Side Label
    Capaciy: 200bottle/min Power: 1.5Kw
    Power Supply: 220V 50hz Single Phase (customized) Bacth Number: Ribon Coding Machine Is Available



    Self Adhesive Sticker Labeling Machine



    Summary:

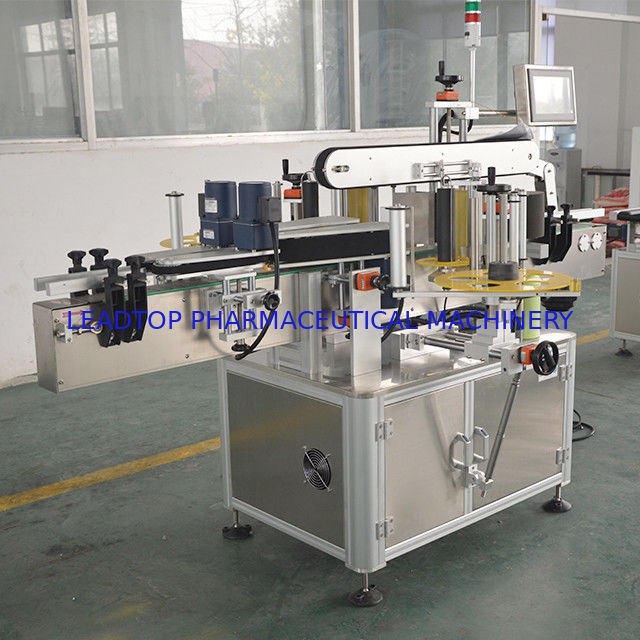

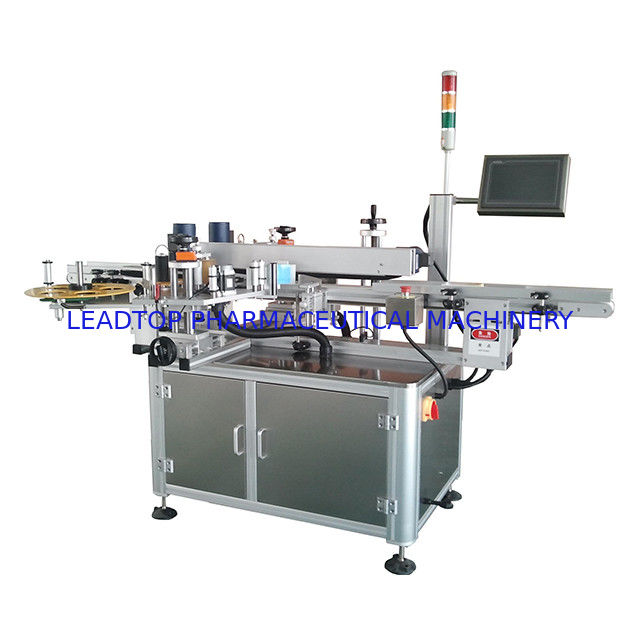

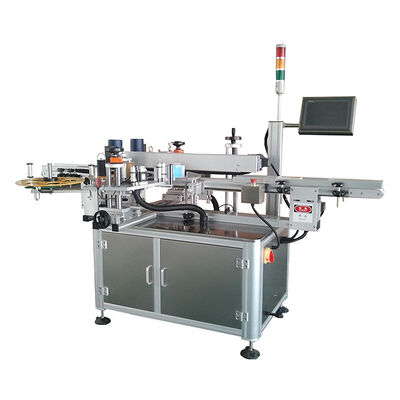

    MT-200 model vertical type round bottle non-dry tape marking machine, in order to achieve rationalization of production target and design. Labeling process automation, simple operation, the production speed is quick, labeling position, beautiful, neat, For pharmaceutical, chemical and foodstuff trades etc circular vessels labeling.
    Working principle:

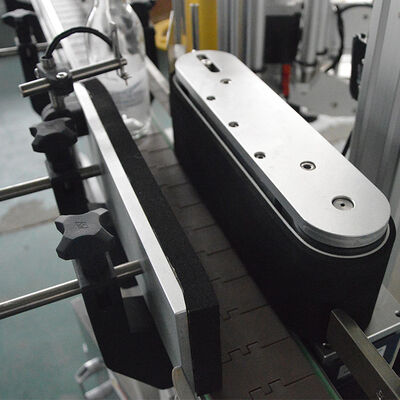

    The machine can packing different objects into labeling machine belt conveyor, by driving a bottle into the bottle conveying institutions, continuous motion by depending on fiber detected after bottle, photoelectric signal transmission to PLC, by PLC output signal processing will lose to the stepping motor, the standard of stepping motor, through the rolling institutions will stick son, tag labeling of objects by labeling machine conveyor belt into the next procedure or containers.

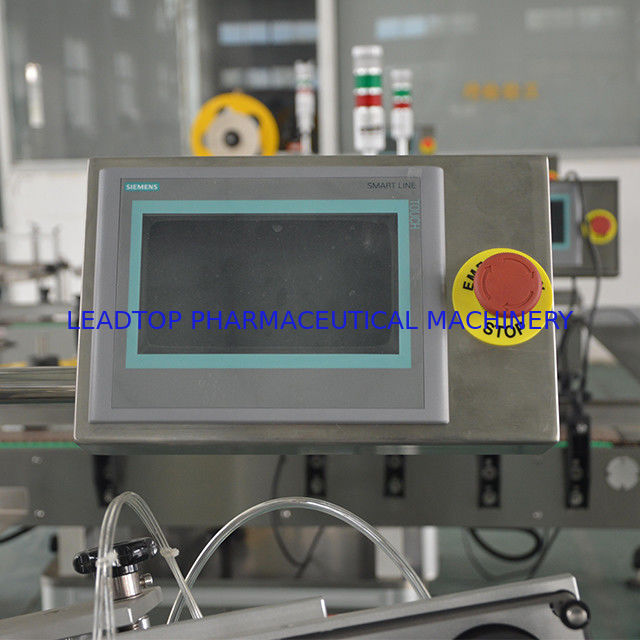

    Main machine running adopts stepping motor driver, sets of (Taiwan) PLC control system, sets of (Taiwan) touch screen, keyence fiber (Japan) device etc imported components, gathers numerous leading technology, make it become the industry has the advantage of technology products.

    Microcomputer automatic control, interface screen friendly human-machine interface, ingenious mechanical structure, make the operation simple and powerful function, Can realize tag number, counting, set print control, labeling, lack of control, marking, colorless such abnormalities automatic detection and alarm functions, Random capacity and the quantity management label, Adjust tightness labels, The length and tags, Host height and adjust position before, Optional ribbon typewriter one, Labeling and tag with reaction degree detection.

    The machine adopts high-quality T6 aluminum and stainless steel SUS304, well made, in conformity with the requirements of GMP.

    Main Technical Data:
    Driver: Stepping motor
    Operation: Right or left
    Poster speed: 0-200 PCS/min

    Packaging Range:



    20 - 100mm diameter

    Height 25-350mm

    Label size width 10-150mm length 15-200mm
    Labeling precision + 1mm (depending on the bottle degree, perpendicular round)
    Maximum diameter volume label: dia.300mm
    Coil diameter: Dia. 75mm label
    Weight: 200kg
    Power supply: AC220V 0.5Kw 60HZ
    Overall Size: 2000X1300X1500

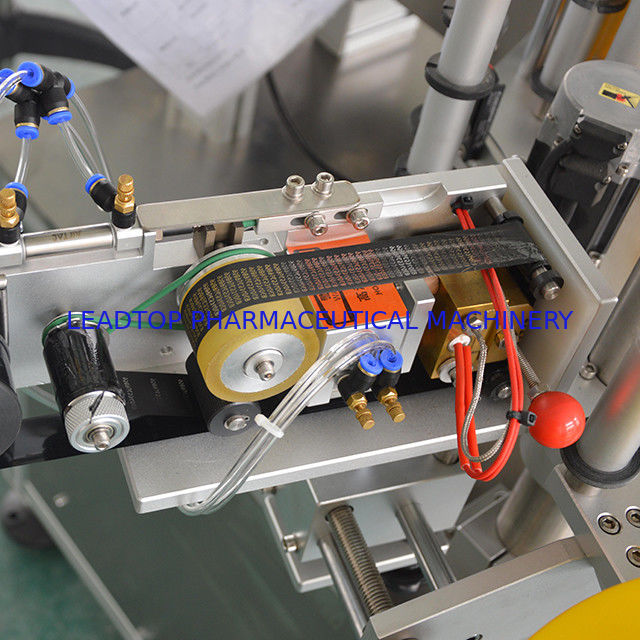

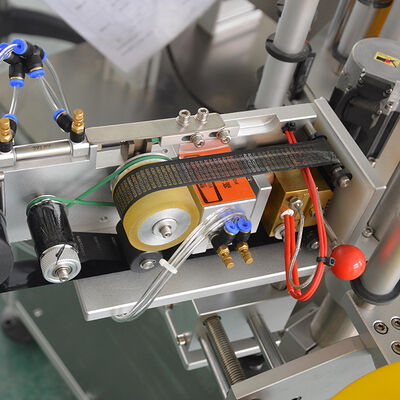

    Ribbon Coding machine: HP 260Q
