Place of Origin:
China
Brand Name:
LTPM China
Certification:
CE
Model Number:
LTN-Series
Contact Us
1.Saving solvent
2.Saving time
3.Low-energy consumption
4.High automatic
5.Quality of distilled medicine is greatly improved
Use:

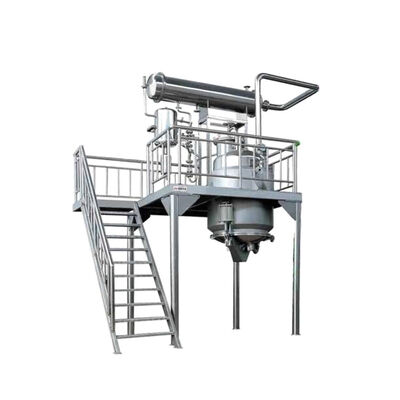

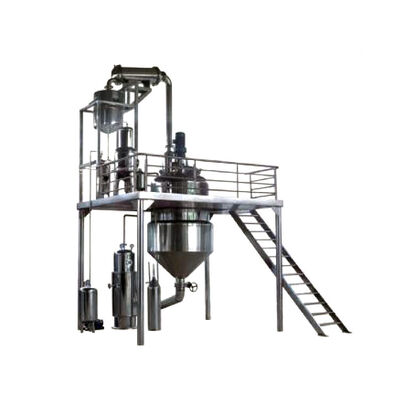

Heat Reflux Extracting Concentrator is mainly used for extraction, concentration, ointment receiving in such fields as Chinese herbal, animal, and plant, as well as for alcohol recovery and volatile oil extraction.
Component
1) The equipment is compact conformed and integrated with extraction, volatile oil recovery, concentration, ointment receiving, and solvent recovery.
2) Synchronous Extraction and concentration shorten the technical process and production period, increasing the operation rate of the equipment.
Advantage
1) Add the solvent once for all, with the consumption lowered by more than 40%. With hot reflux, forced circulation and sox let extraction integrated, the solute keeps high gradient in the solvent, increasing the receiving rate by 10 to15%.
2) Connecting and reusing the condenser make the equipment compact-conformed and bring each part into full play. Without increasing investment of the device, Both the reflux and solvent recovery can be reached to good effect.
3) New technology and new materials are utilized for excellent performance of unit. The areas of the unit contacting with medical liquids and solvents in instruments, equipments and pipes, are made of superior stainless steel.

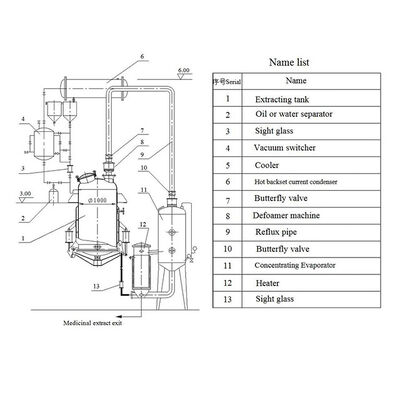

| No. | Item | Model | Material | No. | Item | Model | Material |
| 1 | Extracting Tank | TQ.Z—3M3 | SUS304 | 11 | Heater | SUS304 | |
| 2 | Warming Jacket | SUS304 | 12 | Warming Jacket | SUS304 | ||
| 3 | Polyaminocarboxylic Foam Material | SUS304 | 13 | Evaporator | SUS304 | ||
| 4 | Oil and water separator | SUS304 | 14 | Controlling Cabinet | Vertical | PLC and touch screen | |
| 5 | De-bubble Device | SUS304 | 15 | Valves and viewing glass | DN40~DN25 | SUS304 | |
| 6 | Condenser | SUS304 | 16 | Connection Pipes | DN40~DN25 | SUS304 | |
| 7 | Medium Tank | SUS304 | 17 | Vacuum Pump | 2BV5110 | SUS304 | |
| 8 | Vacuum Transformer | SUS304 | 18 | Vacuum Buff Tank | SUS304 | ||
| 9 | Vacuum Transition Tank | SUS304 | 19 | Air Compressor | 0.17M3/0.7Mpa | SUS304 |
