    Carton Double Side Automatic Labeling Machine , Low Noise Auto Label Machine

    Product Details:

    Place of Origin: China
    Brand Name: LTPM China
    Certification: CE, GMP
    Model Number: MT-200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: Negotiation
    Packaging Details: Export standard wooden case
    Delivery Time: 25days
    Payment Terms: L/C, T/T
    Supply Ability: 25sets/month
    Get Best Price Contact Now

    Detail Information

    Usage: Round Bottle Label: Single Side Label
    Capaciy: 200bottle/min Power: 1.5Kw
    Power Supply: 220V 50hz Single Phase (customized) Bacth Number: Ribon Coding Machine Is Available
    High Light:

    bottle labeler machine

    ,

    self adhesive labelling machine

    Product Description

    Carton Double Side Automatic Labeling Machine , Low Noise Auto Label Machine

    Product Description

    Summary

    MT-130D Carton Double Side labeling machine, in order to achieve rationalization of production target and design. The machine comes with automatic labeling process, simple operation, high speed running, accurate labeling position, beautiful labeling. The machine can be used for pharmaceutical, chemical and foodstuff Industry labeling.

    Working principle

    Put the cartons into the conveyor system, the conveyor will transport the cartons to labeling station. There is automatic sensor equipped on the machine will sense the passed carton and feedback to PLC. The PLC gets the signal, then feedback to Step Motor, the step motor supplies the Label to Rotation Pressing Roller which makes the labeling process.

    Features

    1. Using side label method, add Press carton structure, ensure the stability of carton.

    2. When the label touch the carton, the brush firm the front label, make sure the label is smooth and firm.

    3. Conveyor speed can be adjusted to match up the send label speed, ensure label no wrinkle.

    4. The inverter control the Motor, make sure the conveyor speed,press carton speed and send label

    5. Speed synchronous operation, label surface is smooth and label position is accurate.

    6. The durable engine and parts are solid and durable, adopt standardized modular design completely interchangeable, 24-hour operation ensure the security and stability.

    7. The whole machine use S304 stainless steel and anodized senior aluminum alloy Never rust and with high corrosion resist

    Carton Double Side Automatic Labeling Machine , Low Noise Auto Label Machine 0
    Main Technical Parameter
    Model
    MT-130D
    Operation:
    Right or left
    Running speed:
    20-130 cartons/min
    Label speed
    ≤35 m/min

    Label Specifications
    Glassine backing Paper , opaque label (The application of carton can be customized according to customer's demands)
    Labeling accuracy
    ±1.0mm (subject to the roughness of the plane)
    Maximum diameter of label roll:
    Ф 350mm
    Coil diameter:
    Ф 76mm
    Power supply:
    AC220V 0.8Kw 60HZ
    Overall Size:
    2200X1800X1500 mm
    Machine Weight:
    200kg
    Detailed Images

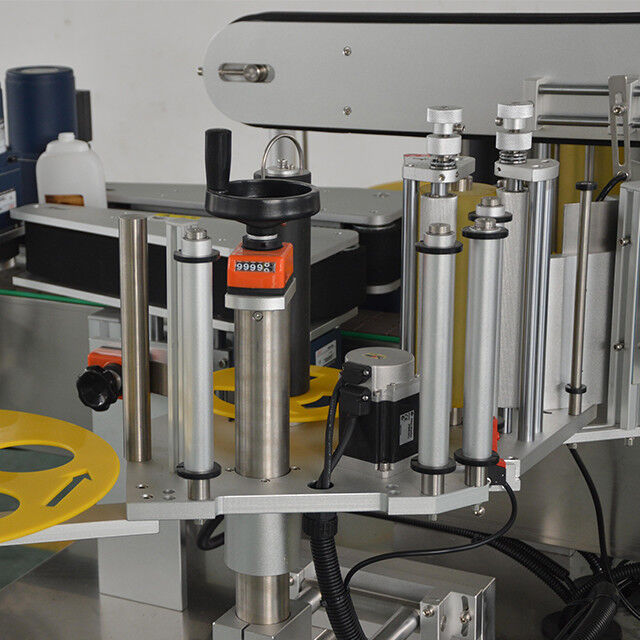

    Carton Double Side Automatic Labeling Machine , Low Noise Auto Label Machine 1

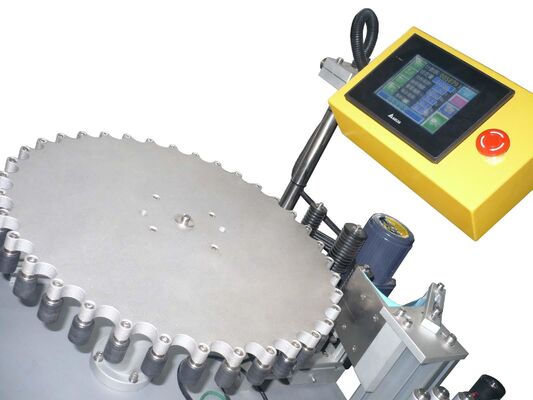

    Carton Double Side Automatic Labeling Machine , Low Noise Auto Label Machine 2

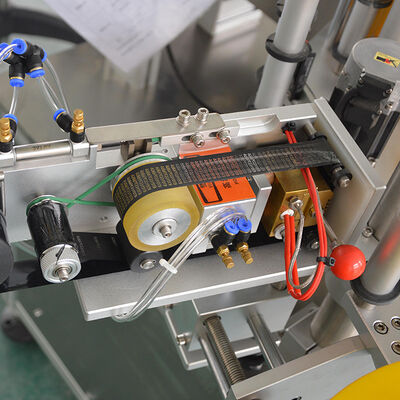

    Carton Double Side Automatic Labeling Machine , Low Noise Auto Label Machine 3

    Packing & Delivery

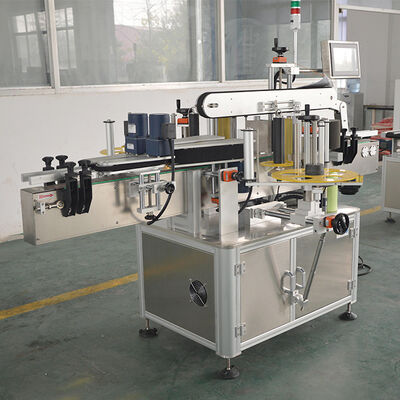

    Carton Double Side Automatic Labeling Machine , Low Noise Auto Label Machine 4
