|Place of Origin:||ZheJiang,China(Mainland)|
|Brand Name:||LTPM CHINA|
|Minimum Order Quantity:||1Set|
|Price:||USD 32,000 -56,000 Per Set|
|Packaging Details:||packed into Export Standard Wooden case which can afford long time Sea shipment and anti-moisture function.|
|Delivery Time:||30 working days|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability:||25 Sets per month|
|Capacity:||50cutting/min||Packaging Type:||Alu/PVC And Alu/Alu|
|Control System:||Micro Computer||Feeding:||Universal Feeder|
|Power:||9.5kw||Material Consist:||Stainless Steel|

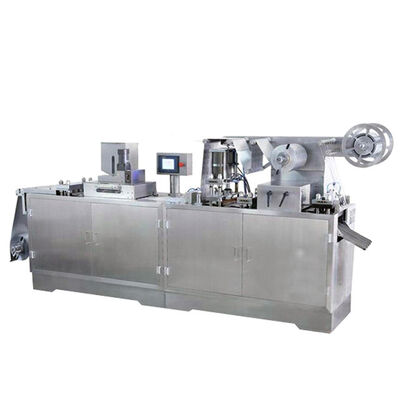

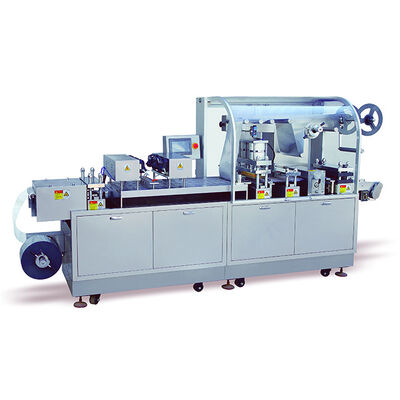

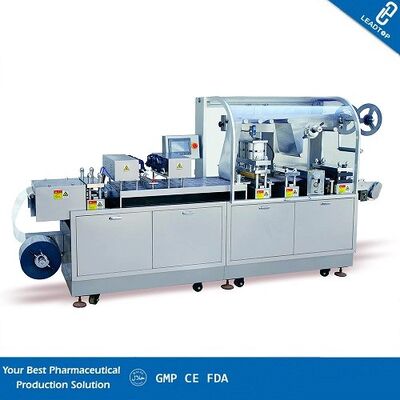

Automatic Aluminum Plastic Blister Sealing Machine CE GMP And FDA Approved
The machine is assembled with three parts and can be packed and transported separately. Under control of PLC, the machine can complete separately all procedures including warm-up, blister forming, automatic feeding, heat sealing and synchronous adjustment of Aluminum-Plastic strip, empty-detecting, hard Aluminum forming, second heat sealing, batch number printing, blanking and scrap-collecting, etc.
The machine is suitable for blister packing with Aluminum-Plastic, Aluminum-Aluminum and Aluminum-Plastic-Aluminum.
Main Technical Data:
|Blanking frequency (cutting):||15-45|
|Sheet's quantity of one blanking (sheets):||1-6(depends to your blister size)|
|Adjustable scope of feed travel: (mm)||10-120|
|Max Forming depth (mm) PVC:||270×120×25|
|Capacity of air compressor(m3/min):||≥0.36|
|Power supply (KW):||220V AC, 50 Hz, Three Phase (Depend on your requirement.|
l Travel scope can be adjusted.
l Mould is located by locating groove so that it’s easy to change mould. Adopt the moulds of pressing-and-frothing and cool-forming.
l The material is fed automatically. The mould and feeding equipment can be designed as user’s requirements.
l Speed is shifted by step-less transducer. Adopt the interface of human-machine and PLC programmable controller.
l Adopt photoelectric empty-detecting equipment and waster-eliminating equipment.
l Servo motor drive wheel to grip and tow wrapper, synchronize accurately. And it will be not waste of time and material for adjusting when restart the machine.
l The machine equipped Camera Cell for sensor, make the length in an accurate number.
l The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machine’s life.
Q: What price terms you offer?
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.
Q: What payment terms you take?
A: TT, LC, other terms are also workable.
Q: Will you help with installation and stuff training?
A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should bear our technician's round tickets, accomodation, food and subsidiary USD100/day.
Q: How can I visit your factory?
A: Our factory is located in Ruian city Zhejiang Province. Just let us know your scheduel in advance and we will arrange everything for you!
Any other doubts about our machine, please feel easy to contact with us.
Contact Person: Mr. Chan
