Max Pressure 150KN Dish Washer Rotary Press Machine With Central Lubrication

Max Pressure 150KN Dish Washer Rotary Press Machine With Central Lubrication

Product Details:

Place of Origin: China
Brand Name: LTPM China
Certification: CE
Model Number: GZP-17G

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: In 25 days after receiving the deposit
Payment Terms: 30% TT as deposit and 70% before shipping
Supply Ability: 25 sets/Month
Get Best Price Contact Now

Detail Information

Maximum Tablet Pressure: 150 KN Maximum Tablet Diameter: 38 Mm
Maximum Filling Depth: 18-35mm Maximum Production Capacity: 15300 Pieces/h
Power Supply: 380/50 V / Hz Main Motor Power: 7.5 KW
High Light:

rotary tablet compression machine

,

tablet compression machine

Product Description

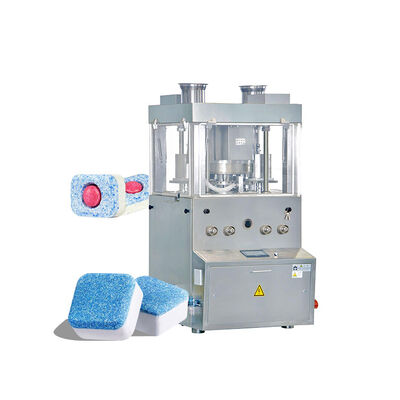

Max Pressure 150KN Dish Washer Rotary Press Machine With Central Lubrication

Max. Pressure 150KN Dish Washer Press Machine with Central Lubrication



Product Description

The machine is a double-pressing automatically revolving piece-pressing machine which could make grain be pressed to be round piece ,be carved characters ,special shapes and double color piece prescription .It is mainly used in manufacturing piece prescription for pharmaceutical industry enterprises like chemical industry ,foods, Dish Washing Tablet .(Note: when manufacturing double color piece ,it only need replacing components and adding powder absorbing apparatus which greatly lowers the cost and raises profit .)



Feature:
1. The outer cover is made of all stainless steel, and the inner table is made of stainless steel, which can maintain the surface gloss and prevent cross-contamination. It meets the requirements of GMP.
2. It is equipped with a plexiglass perspective window, which can see the state of the tablet, and the side panel can be fully opened, which is easy to clean and maintain inside.
3. All controllers and operating parts are arranged reasonably.
4. Adopt frequency conversion speed regulation device for electrical speed regulation,convenient operation, stable rotation, safe and accurate.
5. With automatic protection function (overpressure, overload, emergency stop device).
6. Implement mechanical and electrical integration, using touch keys and screen display.
7. Use automatic lubricating device and plexiglass dustproof device on the top of the turntable.
8. Equipped with powder suction device, which can suck the dust in the pressing room.
9. The ZPT mold can be fitted with oil rings and sealing rings to ensure the hygienic requirements of tablets to a greater extent.

Model
ZPT420-17G
Die number
17
Maximum tablet pressure
150 kN
Maximum tablet diameter
38 mm
Maximum filling depth
18-35mm
Maximum tablet thickness
15 mm
Turntable speed
4-15 rpm
Maximum production capacity
15300 pieces/h
Power supply
380/50 V / Hz
Main motor power
7.5 kW
Dimensions
950*1200*1825 mm
Net weight
2300 kg
