Pharmaceutical High Speed Double Rotary Tablet Press Machine With Hydraulic Pressure System

China Pharmaceutical High Speed Double Rotary Tablet Press Machine With Hydraulic Pressure System supplier

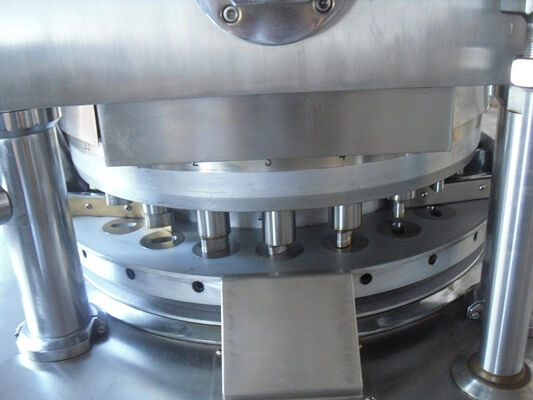

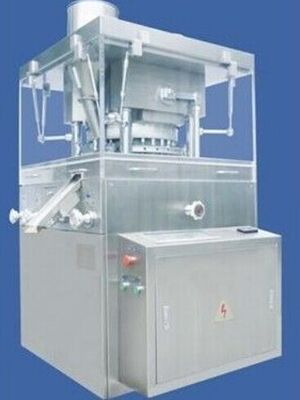

Large Image :  Pharmaceutical High Speed Double Rotary Tablet Press Machine With Hydraulic Pressure System

Product Details:

Place of Origin: China
Brand Name: LTPM China
Certification: CE
Model Number: ZP-23D

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: In 25 days after receiving the deposit
Payment Terms: 30% TT as deposit and 70% before shipping
Supply Ability: 25 sets/Month
Detailed Product Description



Pharmaceutical Double Press Rotary Tablet Press Machine , Pill Presser





Quick Detail:



The Max Diameter Of The Tablet:28mm

Max Thickness Of The Tablet: 13mm

Model No.: ZP-23D

Station:23 Unit

Capacity: 60,000-85,000 pcs/hour

Material: Stainless steel 304

Thickness Of Die: 22mm

Power Supply: 380V 50HZ Three Phase

Certificate: CE Certificate





Description:



1. The machine adopts Germany, Japan and Denmark brand electronics for Touch Screen, PLC, inverter, Relays and contactors. So it is Stable working with simple maintenance.

2. The material of the machine is made of stainless steel with totally closed, the surface of turntable deal with polished and prevent cross pollution which meet the GMP standard.

3. It is equipped with Organic-glass perspective window for tablet producing observation. Each perspective window could be fully opened and easy for cleaning and maintenance.

4. It is adopts the import Frequency Timing with Electromagnetism Clutch.

5. Driving system is equipped with oil box and running under oil, easy for heat dissipation and wear-resistance.

6. It is equipped with Dust Collector as well, which avoid the dust emission, and recycle to save dust





Applications:



This machine is a double press automatic rotation for shape-pressing equipment, which have the function of press the grain material or powders to be round or irregular shape tablets, such as candy, calcium tablets double-sides with letter printing and etc. which widely suitable for the Industries of pharmaceutical, Chemical, Foodstuff, Plastic Electronic, Powder Metallurgy and so on. The machine adopts Hydraulic Pressure system, so the pressure can be adjusted and input by touch screen for accurate testing and production purpose.





Specifications:



Stations (unit) 23
Maximum compression (KN) 80
Max. Diameter of tablet to be produced (mm) 28
Max. Filling depth (mm) 20
Max. Thickness of tablet (mm) 13
Thickness of the die (mm) 22
The diameter of the circle of the central pitch of upper &lower punches on the turret 320mm
Rotary speed of the turret (rpm) 14-30rpm
Capacity of the tablets (max ten thousand tablets/hour) 60,000-85,000pcs
Overall Dimension 1300*1400*1850




Competitive Advantage:



1. we have seven technicians who gets passport ready to travel all over world to offer service to you.

2. We have 24hours hot line for Technical Support.

3. We get 18hours internet line for technical support.

4. Video camera in workshop to help you adjust and solve machine problem in working situation.

5. We have Technical Support in below Foreign Cities:

California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Lahore (Distributor)
