Tablet Pill Capsule Blister Packing Machine Chewing Gum Chocolate Liquid
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | LTPM CHINA |
| Certification: | CE |
| Model Number: | DPP-Series |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wrapped with strech film packed into Export Standard Wooden case, this package afford long time sea shipment and anti moisture. |
| Delivery Time: | 25days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 25 SETS Per month |
|
Detail Information |
|||
| Overall Dimension: | 1400×460×950mm | Feeding:: | Universal Feeder |
|---|---|---|---|
| PVC Hard Film: | 0.15-0.5*110 (mm) | Air Pressure(Mpa): | ≥0.25m³/min 0.6～0.8Mpa |
| Production Capacity: | 2400plates/hour | Punch Frequency: | 10-33times/min |
| Production Capacity(pcs/h): | 2400-9600 | Weight(kg): | 2000 KG |
| High Light: | Tablet Pill Capsule Blister Packing Machine,Chewing Gum Blister Packing Machine,Chocolate Liquid Blister Packing Machine |
||

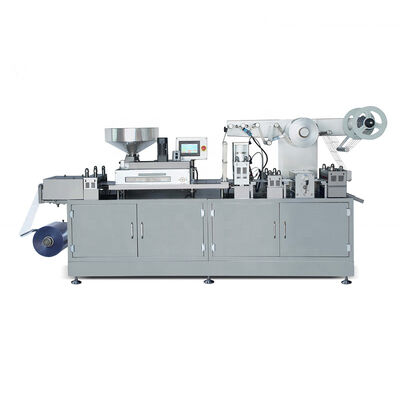

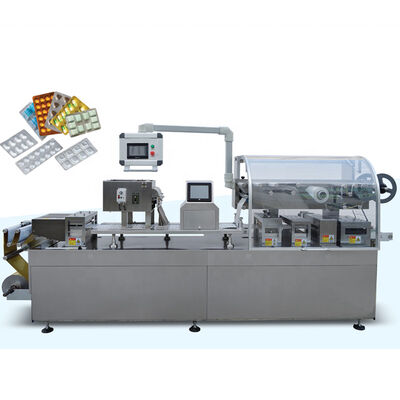

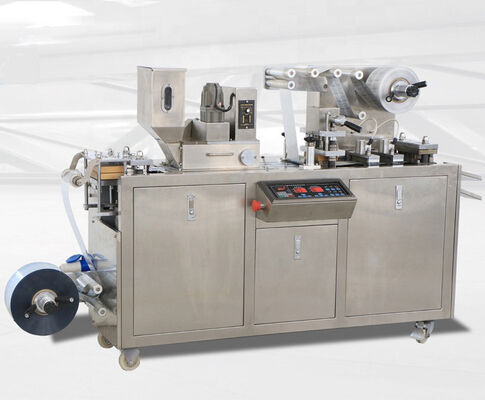

Product Description
It is suitable for capsule, tablet, honey pill, candy, liquid (ointment), paste as well as irregular shape Al-al Al-plastic and paper-plastic composite sealing packing in pharmacy, healthcare, food, cosmetics, medical equipment industry etc.This machine can form seal the blister with alu or plastic through change the feeder can be used for packing the solid,liquid,paste product like tablet capsule,milk,honey,yougurt,etc,,our machine mainly export to the USA.
Product Paramenters
| Blanking frequency(standard) | 20-35times/min(alu plastic)15-30times/min(alu alu) | |
| Max. forming area and depth | 80×110×14(height can be customize) | |
| Range of travel | 30-100 | |
|
Packaging material Φ75 |
PVC | (0.15～0.4)X 270X(Φ300) ㎜ |
| PTP | (0.02～0.15)X 270 X(Φ300)㎜ | |
| ALU ALU FOIL | (0.16-0.2)X 270 X(Φ300)㎜ | |
| Paper | (50-100)g/㎡X270X(Φ300) ㎜ | |
| Power | 380V 50Hz 8kw | |
| Air compressor | ≥0.25m³/min 0.6～0.8Mpa | |
| Mould cooling | 10-30L/h | |
| Dimension(L X W X H) | 1400×460×950 | |
| Weight | 2T | |
Company Profile
Our Company
- Since year 1996, LTPM CHINA had started manufacturing Pharmaceutical and food packaging machines such as Capsule Filling Machine, Ampoule Filling and Sealing Machine, Blister Packaging Machine, Pill Counting and Bottling Line, Cartoning Machine, Bag Packaging Machine, Liquid Filling and Capping Machine etc. - LTPM CHINA designs different types of packaging lines for customers, including standard or non-standard models. - LTPM CHINA's machinery = high automation + high precision + more energy saving + satisfactory warranty and after-sales service + trusted brand
Our Workshop
FAQ
Q: What is the warranty period for your machine?
A: 5 years free warranty.
Q: Are you a real factory/manufacturer?
A: Of course. Our factory is inspected by third party. We much welcome you to visit us and free to pick you up form hotel. You don't have time? We can use live video and you can visit us on line.
Q: Is engineer available to serve oversea?
A: Yes, we can send engineers to your factory but all the fee will be on buyers. In order to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q: How can we make sure about the machine quality after placing the order?
A: Before delivery, we will running half hour of the machine to checking the stability and sending you the testing video until you sastisfy. We will setting all the parameters well. And also you can arrange for quality checking by yourself or by your contacts in China.
Q: We are afraid you won't send us the machine after we send you the money?
A: We have our business license and certificate. And it is available for us to use alibaba trade assurance service, protect your money, machine qulaity and delivery are guaranted.
Q: Are you a real factory/manufacturer?
A: Of course. Our factory is inspected by third party. We much welcome you to visit us and free to pick you up form hotel. You don't have time? We can use live video and you can visit us on line.
Q: Is engineer available to serve oversea?
A: Yes, we can send engineers to your factory but all the fee will be on buyers. In order to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q: How can we make sure about the machine quality after placing the order?
A: Before delivery, we will running half hour of the machine to checking the stability and sending you the testing video until you sastisfy. We will setting all the parameters well. And also you can arrange for quality checking by yourself or by your contacts in China.
Q: We are afraid you won't send us the machine after we send you the money?
A: We have our business license and certificate. And it is available for us to use alibaba trade assurance service, protect your money, machine qulaity and delivery are guaranted.
