Stainless Steel Pharmaceutical Dryers Fluid Bed Drying Machine

Brand Name:	LTPM China
Model Number:	GFG-200
MOQ:	1set
Payment Terms:	L/C, T/T
Supply Ability:	25sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, GMP

Packaging Details:

Export standard wooden case

Supply Ability:

25sets/month

Highlight:

spray drying equipment

microwave vacuum drying equipment

Product Description

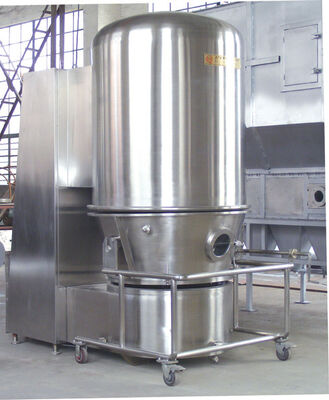

Stainless Steel Pharmaceutical Dryers Fluid Bed Drying Machine

Quick Detail:

Capacity of material bucket(L): 600

Temperature of inlet air (℃): indoor ～150℃ adjusting

Production capacity(kgbatch): 20-200

Steam Pressure(r/min): 0.4

Steam Consumption(kg/h): 210

Weight of main body(kg): 2470

Power Supply: 380V 50HZ Three Phase

Certificate: CE Certificate

Description:

1. Fluidized bed is round so that to avoid the dead corner.

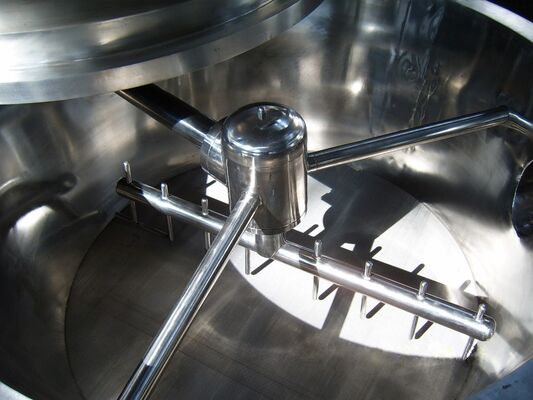

2. Inside the bed has installed a mixer, so that to avoid damp materials agglomerating and the channeling during drying.

3. The cloth-bag filter at the top is made of the special antistatic fibers to ensure the safety of the operation.

4. Overturning discharge of the machine is convenient, quick and complete.

5. Operated at sealed negative pressure and designed by GMP.

6. This equipment can be designed and manufactured to be feeding and discharging automatically as requirements.

Applications:

1. Drying for wet granules and powder materials of screw extruded granules, swaying granules, high- speed mixing granulation in the fields such as Pharmacy, food, feed, chemical industry and so on.

2. Large granules, small block, viscous block granular materials.

3. The materials such as Konjak, polyacry lamide and so on , which will have the volume changed during drying.

Specifications:

GFG-200 Main Technical Parameters
Model		GFG-200
Item
Capacity of material bucket(L)		600
Production capacity(kgbatch)		20-200
Temperature of inlet air (℃)		indoor ～150℃ adjusting
Blower Fan	Air volume(M3/h)	3620
	Air pressure(pa)	7110
	Power of Motor(kw)	18
Blending Motor	Revolving Speed(r/min)	12
	Power of Motor(kw)	1.5
Steam	Pressure(r/min)	0.4
	Consumption(kg/h)	210
Compressed air	Pressure(r/min)	0.5
	Consumption(kg/h)	210
Weight of main body(kg)		2470
