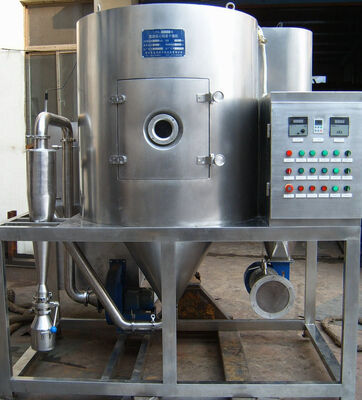

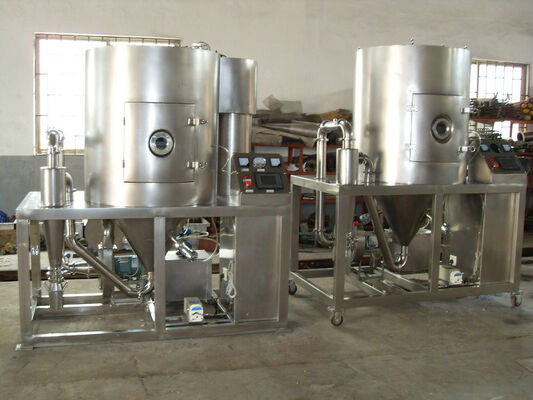

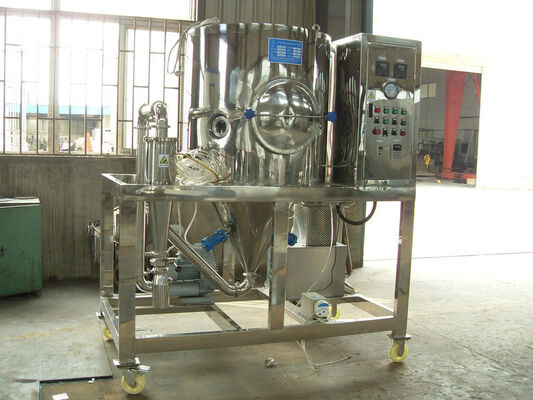

Centrifugal Spray Drying Machine Pharmaceutical Drying Machine By Stainless Steel



Quick Detail:



Quick Detail:

Model No.: LPG

Capacity: 5-6500 kg/h

Material: Stainless steel 304

Inlet temperature: 140-350 automatically controlled

Outlet temperature: 80-90

Power Supply: 380V 50HZ Three Phase

Certificate: CE Certificate






High speed drying. The surface area of Raw Material liquid increased a lot after atomization through nebulizer, 95%-98% of moisture will be evaporated in high temperature airflow in a flash, only needs seconds time.

Adopts Single position spray drying to make the liquid drop and hot air running in same position. Although the temperature of the air is high, the hot air contacts Liquid Drop once come into drying tank. So the temperature decreased at once to protect the material out of over heated. This is machine is also fit for the materials which are sensitive with Heating.

The machine is Simple production with easy operation control system used for drying 50-80% moisture contained materials, even some special material with 90% moisture contained can be dried in a flash to powder. Most of the materials no need to be pulverized or sieved again after dried.






Spray drying is the widest used technology in the liquid shaping technology and in the drying industry. Centrifugal Atomizing (Spray) Drying Equipment is most suitable for producing powder, particles or solid block products from materials of solution, emulsion, soliquoid and pumpable paste states. Therefore, spray drying is useful to create the desired particle size, residual water contents, the stocking density, and the particle shape needed to meet precise standards






Model 5 10 15 20 25 50 100 150
Inlet temperature(℃) 140-350 automatically controlled
Outlet temperature(℃ 80-90
Water evaporation capa city(kg/h) 5 10 15 20 25 50 100 150
Diameter of atomizing tray(rpm) 50 80 80 120 120 120 120 150
Max Electric heating power(kw) 12 24 36 45 46 63 81 99
Dried powder restoring rate(%) ≥95
Length of convered area(m) 1.6 2.7 3 3.5 4 4.5 5.2 7
Width of convered area(m) 1.1 1.5 1.8 2 2.7 2.8 3.5 5.5
