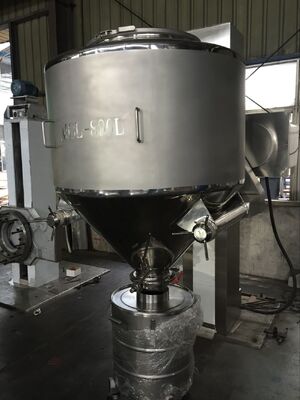

Pharmaceutical Mass Mixing Machine Automatic Lifting Bin Blender

Pharmaceutical Mass Mixing Machine Automatic Lifting Bin Blender

Applications:

• The machine can automatically complete all actions including lifting,clamping,mixing ,lowering,etc.An automatic lifting hopper mixer and several mixing hoppers of different specifications can meet the mixing requirements of large batches and diversified vatieties of producst.It is an ideal machine for mixing in pharmaceutical plants.It is also widely used in such inductries as medicine,chemical industry,food,etc.

Feature:

• 1. This machine can apply to different bin containers which meets the requirements of mass and different material.

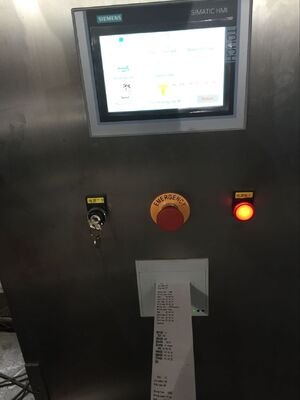

• 2. PLC control, touch screen display and frequency control, which can automatically accomplish all the programs, and has man-machine interface and the function of data storage and printing
• 3. Using mechanical transmission avoids oil leakage due to hydraulic transmission, environment pollution and medicine quality arises.
• 4. Bin containers are detachable so that frequent material transfer is not needed during the production which can prevent the pollution of flying dust and cross contamination, and optimize material transfer process and make washing easy.
• 5. This machine has double infrared detectors. AV alarm safety device and shock absorption device with easy and steady operation.

Principle:

• The machine is composed of machine base,gyrator,driving system,lifting and lowering system,braking system and control system.
• When it works,push the mixing hopper into the gyrator.
• Enter the automatic operation program,and input the set parameter group program code.
• Press the "confirm" button on the touch screen to automaticallly lift the mixing hopper to the designated position and automatically clamp it.
• After the PLC control system receives the clamping signal,the driving system works and carries out mixing according to the set time and rotation speed.
• After the set parameters are reached,the gyrator will automatically stop vertically.At the same time,the braking system works and the mixing is finished.
• Then enter the manual operation program,press the "lower" button,the mixing hopper in the gyrator will fall to the designated position and stop automatically,and process data will be printed.
• Then the mixing hopper is pushed out and transferred to the next procedure.
