Customized Automatic Labeling Machine for Small Round Bottle Adhesive Label

Customized Automatic Labeling Machine for Small Round Bottle Adhesive Label

self adhesive labelling machine

automatic round bottle labeling machine

Place of Origin:

China

Brand Name:

LTPM China

Certification:

CE, GMP

Model Number:

MT

Contact Us

Request A Quote
Product Details
Material:
SS304
Color:
Silver
Weight:
300kg
Speed:
50-130 Bottles/min
Type Of Bottle:
Round Bottle
Product Description

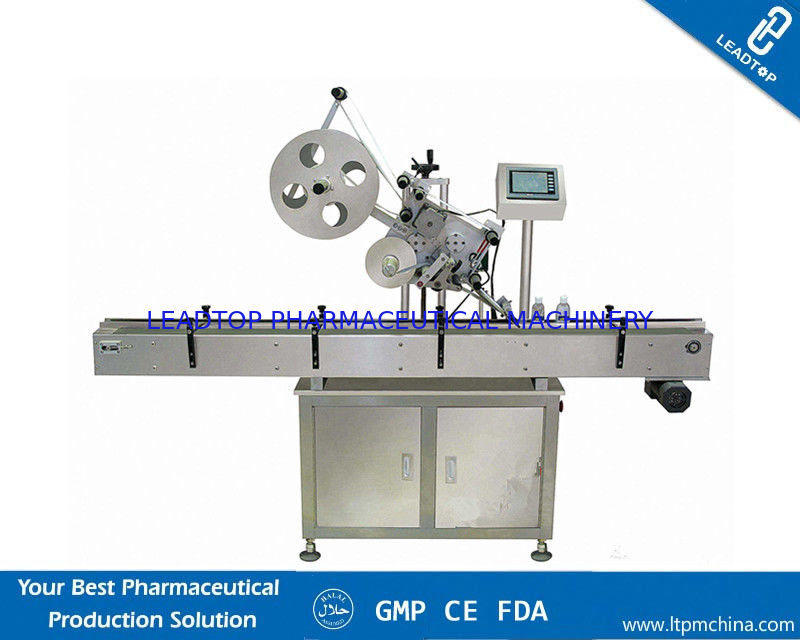

Customized Automatic Small Round Bottle Adhesive Labeling Machine





Quick Detail:





Certificate: CE Certificate

Running speed:: 50-130bottle/min

Model No.: MT-50

Weight:300kg

Overall Size: 2200×1000×1800mm

Material: Stainless steel 304

Driving mode: Servo motor





Description:





1. Imported servo motor, the speed of send label is fast;

2. Touch-screen man-machine interface Operating system, simple and efficiently;

3. Adopt mature technology PLC control system, operation is stable and high-speed;

4. Input type roll label device, make the label attached more solid;

5. The whole machine made of S304 stainless steel and anode handling superior aluminum. Never rust, high corrosion resistance;

6. No object not labeling, automatic alarming when without labels or no labeling





Applications:

1. adopte mature PLC control system technology, make the whole machine stable and high-speed
2. adopt touch screen control system,make opreation simple, practical and efficient
3. advanced pneumatic code system technology, make the printed letter clear, fast and stable
4. wide labeling application, adapt to various sizes of round bottles
5. roll extrusion bottle, so that the labels attached more solid
6. production line is optional before or after the machine,also collection turntable is optional for collection,sorting and packaging





Specifications:





Production 50-130bottle/min
Label Specifications Glassine paper, adhesive sticker opaque label
Labeling accuracy ±1mm (subject to the roughness of the plane)
The application of label Object customizing
The application of label Height 20-70mm Length 25-120mm
The inner diameter of label Roll 76mm
The outer diameter of label Roll 350mm
Driving mode Servo motor
Power of motor 500w
Voltage AC 220V 50/60Hz Single phase
Overall dimension 2200×1000×1800mm





Competitive Advantage:





1. We have seven technicians who gets passport ready to travel all over world to offer service to you.

2. We have 24hours hot line for Technical Support.

3. We get 18hours internet line for technical support.

4. Video camera in workshop to help you adjust and solve machine problem in working situation.

5. We have Technical Support in below Foreign Cities:

California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Laho
