    Product Details:

    Place of Origin: China
    Brand Name: LTPM CHINA
    Certification: CE
    Model Number: AGF-16

    Payment & Shipping Terms:

    Minimum Order Quantity: 1/set
    Price: Negotiation
    Packaging Details: Ampoule Washing Sterilizing Filling And Sealing Production Line packed in wooden cases
    Delivery Time: 35 days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union
    Supply Ability: 5/set month
    Contact Now
    Detailed Product Description
    Item: Ampoule Washing Sterilizing Filling And Sealing Production Line Type: Filling Equipment
    Capacity: 1-2ml: 35000-38000 Ampoules/hour 3ml:32000-34000 Ampoules/hour Sealing Finish Rate: ≥99.9%
    Overall: 4343*1710*2270mm Broken Rate: ≤0.1%
    Brand Name: Leadtop China After-sales Service Provided: Engineers Available To Service Machinery Overseas

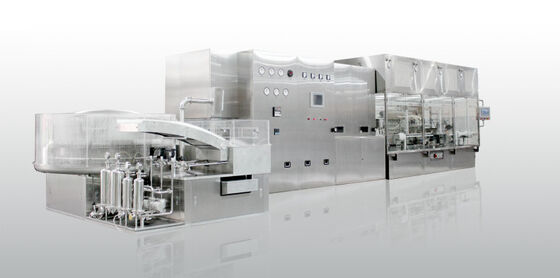

    Ampoule Washing Sterilizing Liquid Bottle Filling Machine / Production Line



    AGF-16 ampoule filling and sealing machine

    The machine is a new generation of the ampoule filling and sealing machine for several size. It adopts the rectangular way to transfer ampoules, in such case, the transferring is steady, lower braking rate. A new type of clutch is mounted under the ampoule feeding hopper; therefore the ampoule can be stopped at any time while the machines are still running. So the ampoule consumption can be reduced. Electromagnetic switch is replaced with mechanical way in the part of filling stop system. It is reliable and durable. The traditional ampoule out-feeding way is abandoned, and ampoule collecting is reliable, the qualified filled ampoule is more excellent.

    Main parts and fittings are made of stainless steel through precision casting. The accuracy and exchangeability of parts can be guaranteed. Besides, we use the SS pump to filling the liquid, the liquid dropping is under the control, and prevent ampoule blackening owing to carbonization.





    Main technical parameters



    Capacity

    1-2ml: 35000-38000 ampoules/hour

    3ml:32000-34000 ampoules/hour

    Ampoule size

    1ml,2ml,3ml

    Filling Accuracy

    2ml: ±1%

    Broken rate

    ≤0.1%

    Sealing finish rate

    ≥99.9%

    Power

    8kw

    overall

    4343*1710*2270mm

    Weight

    3200kgs



    Ampoule Washing Sterilizing Liquid Bottle Filling Machine / Production Line



    QCL-160 Vertical Ultrasonic Washing Machine



    Description of Equipment



    Rotary washing machine consists of infeeding section,ultrasonic section and final washing section. Containers go through these sections for completion of the whole washing process which includes 1 station for ultrasonic washing, 6 stations for interior and 2 stations for exterior cleaning.



    Process Flow Diagram

    Station 1:   Ultrasonic washing

    Station 2:   Recirculated water cleaning container inside and outside

    Station 3:   Recirculated water only cleaning container inside

    Station 4:   Sterile air purging container inside

    Station 5:   Fresh water cleaning container inside

    Station 6:   Sterile air purging container inside

    Station 7:   Sterile air purging container inside and outside



    Ampoule Washing Sterilizing Liquid Bottle Filling Machine / Production Line

    Ampoule Washing Sterilizing Liquid Bottle Filling Machine / Production Line



    SZA-620 Hot Air Circulation Sterilizing Drying Machine



    SZA-610 series hot air circulating tunnel sterilization oven using electric heating as the heat energy, the

    energy generated by the electric heating elements, the use of hot air circulating fan oven heating section of Class 100 clean air inside the bottle of convective heat exchange cycle, the required sterilization of the bottle the heat transfer, and continuous supply of fresh air, while eliminating air or saturated humid chamber heat, so as to achieve drying of the items are sterilized bottles.

    The machine consists of stainless steel mesh belt conveyor bottle items are in the process of belt conveyor; the bottles pass the one hundred laminar flow air heat and circulation, so as to achieve sterilization drying effect. Low temperature inside the bottle after warming up to cooling high heat sterilization, sterilized bottle to complete the whole process. Among them, the heat sterilization section of the air, when the high temperature hot air through the fan filter purified by high wind form a cycle, so purification of the bottle in the purification of one hundred hot air circulation under wind pressure of rapid and uniform drying and sterilization, it must block the entry of outside air, water content of the hot and humid air through the exhaust port from the plane. Among them, the heating section of the air in the oven is heating cycle. Oven built-in temperature measurement points, the required subset temperature and automatically adjust the control.





    Main technical parameters





    Capacity

    1-2ml: 35000-38000 ampoules/hour

    3ml:32000-34000 ampoules/hour

    Ampoule size

    1ml,2ml,3ml

    temperature Adjustable range

    50℃~350℃

    Temperature for sterilizing

    280℃~320℃

    PH Rate

    ≥1365

    endotoxin

    Reduce 3 log

    Filter

    Accept 400℃

    Temperature of out put

    ≤10℃

    Power

    70kw(54kw)

    Cooling exhaust volume

    2500—3500m³/h

    overall

    4400*1550*2270mm

    Weight

    3500kgs



    Ampoule Washing Sterilizing Liquid Bottle Filling Machine / Production Line

    Ampoule Washing Sterilizing Liquid Bottle Filling Machine / Production Line
