PET Syrup Bottle Cooking Oil Filling Machine / Automatic Bottle Filling Equipment
Technical Parameter:
|
Model |
SAF-5 |
SAF-10 |
SAF-25 |
SAF-50 |
SAF-100 |
SAF-250 |
SAF-500 |
|
Filling Volume |
5-60ml |
10-120ml |
25-250ml |
50-500ml |
100-1000ml |
250-2500ml |
500-5000ml |
|
Air Consumption |
19L/min |
15L/min |
30L/min |
45L/min |
120L/min |
250L/min |
250L/min |
|
Filling Speed |
0-30bot/min |
0-30bot/min |
0-30bot/min |
0-30bot/min |
0-30bot/min |
0-30bot/min |
0-30bot/min |
|
Air Source |
0.6-0.8Mpa |
0.6-0.8Mpa |
0.6-0.8Mpa |
0.6-0.8Mpa |
0.6-0.8Mpa |
0.6-0.8Mpa |
0.6-0.8Mpa |
Features:
1. All the actions are done by compressed air, no electricity, therefore, this machine can be used in
anti-explosion condition
2. No static, no leakage of electricity, no need connect to the earth.
3. Because it is pneumatic style, and adopting hard location, the filling volume with high precision, the Filling
precision can be 0.3%-0.5% (Refer to the max filling volume).
Colse up photos
1, this filling machine is with rotary valve,if your product is shampoo,lotion or honey,you can connect the machine with wired hose to suck the material.if your product is with high viscosity,connect the machine with hopper to fill will be better.

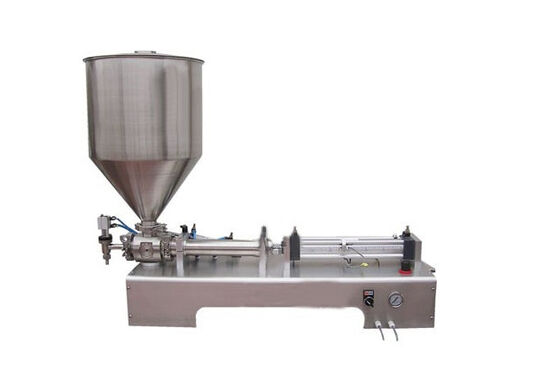

Machine Photo:

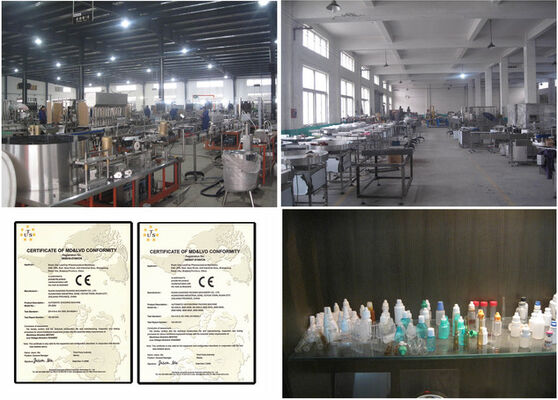

Certifications:
