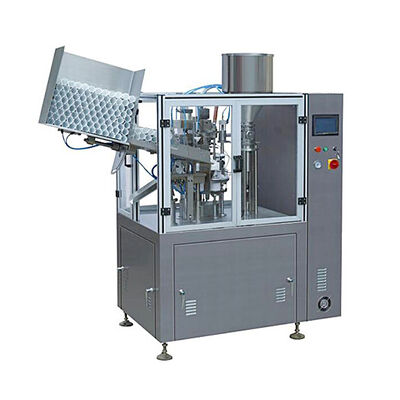

LTRG-60A Fully Automatic Tube Filling and Sealing Machine

LTRG-60A Fully Automatic Tube Filling and Sealing Machine

    • LTRG-60A Fully Automatic Tube Filling and Sealing Machine
    • LTRG-60A Fully Automatic Tube Filling and Sealing Machine
    • LTRG-60A Fully Automatic Tube Filling and Sealing Machine
  • LTRG-60A Fully Automatic Tube Filling and Sealing Machine

    Product Details:

    Place of Origin: China
    Brand Name: LTPM China
    Certification: CE
    Model Number: LTRG-60A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: Negotiation
    Packaging Details: Export Standard Wooden Case
    Delivery Time: 25days
    Payment Terms: L/C, T/T
    Supply Ability: 15Set/Month
    Contact Now
    Detailed Product Description
    Tube Material: Plastic Tube, Laminated Tube,Aluminum Tube Tube Diameter: Dia.5mm-50mm
    Tube Length: 50-240mm (customizable) Filling Volume: 5-250ml/piece (Adjustable)
    Filling Accuracy: ≤±1% Control System: PLC Control

    Tube Filling and Sealing Machine



    LTRG-60A Automatic Tube Filling and Sealing Machine
    This machine is a high-tech product which successfully developed and designed by adopting advanced technology from abroad and strictly meet GMP requirement. PLC controller and color touch screen are applied and made it possible for programmable control of the machine. It can perform the filling for ointment, cream jellies or viscosity material, sealing or tail folding, batch number embossing (include manufacture date) automatically. It’s ideal equipment for plumbum tube, plastic tube and laminated tube filling and sealing for cosmetic, pharmacy, foodstuff and bond industries.
    Feature
    1. With 9 stations and matching with manipulator, the machine is able to meet different type of tail folding, sealing requirements of plumbum tube, Alu tube, plastic tube and laminated tubes. It is a multi-purpose machine.
    2. Tube feeding, eye marking, tube interior cleaning (optional), material filling, sealing (tail folding), batch number printing, finished products discharging can be performed automatically (the whole procedure).
    3. Servo control makes it precise and convenient to adjust the filling amount by touch screen.
    4. According to the different length of the tube, height of tube chamber can be adjusted easily by motor. With external reversal feeding system, makes tube charging more convenient and tidy.

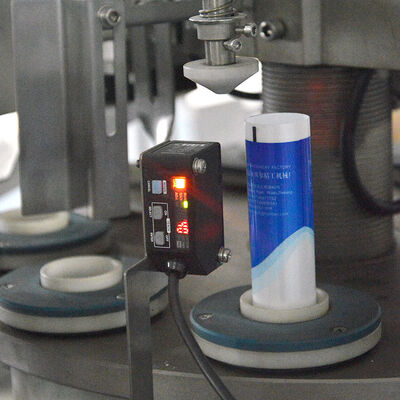

    5. The mechanical linkage photo sensor precision tolerance is less than 0.2mm. The chromatic aberration scope between tube and eye mark is reduced.

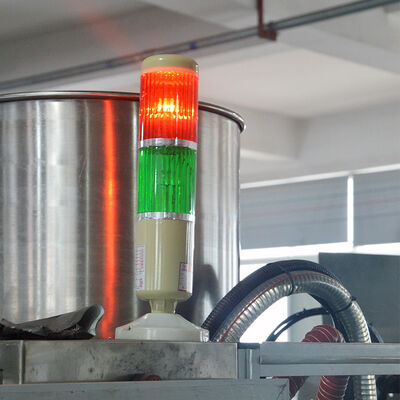

    6. Photo-electronic, electric, pneumatic integrative control is applied with the machine. No tube, no filling. It gives an alarm when low pressure occurs. The machine stops automatically if tube error or open the safety door.
    7. Three-layer jacket instant heater with inside air heating, it won’t damage the pattern on outer wall of tube and achieves firm and beautiful sealing effect.
    Main technical Data
    Model LTRG-60
    Tube Material Plastic tube, laminated tube,Aluminum Tube
    Tube Diameter Φ5mm-Φ50mm
    Tube Length 50-240mm (customizable)
    Filling Volume 5-250ml/piece (Adjustable)
    Filling Accuracy ≤±1%
    Product Capacity (Pcs/min) 60pcs/min
    Air Supply 0.55-0.65Mpa
    Motor Power 4kw (380V/220V 50Hz)
    Heat Sealing Power 5kw
    Overall Dimension(mm) 2807*1240*1900mm (L*W*H)
    Machine Weight (kg) 1100kg
