Place of Origin:
CHINA
Brand Name:
LTPM CHINA
Certification:
CE
Model Number:
DPP-Series
Contact Us

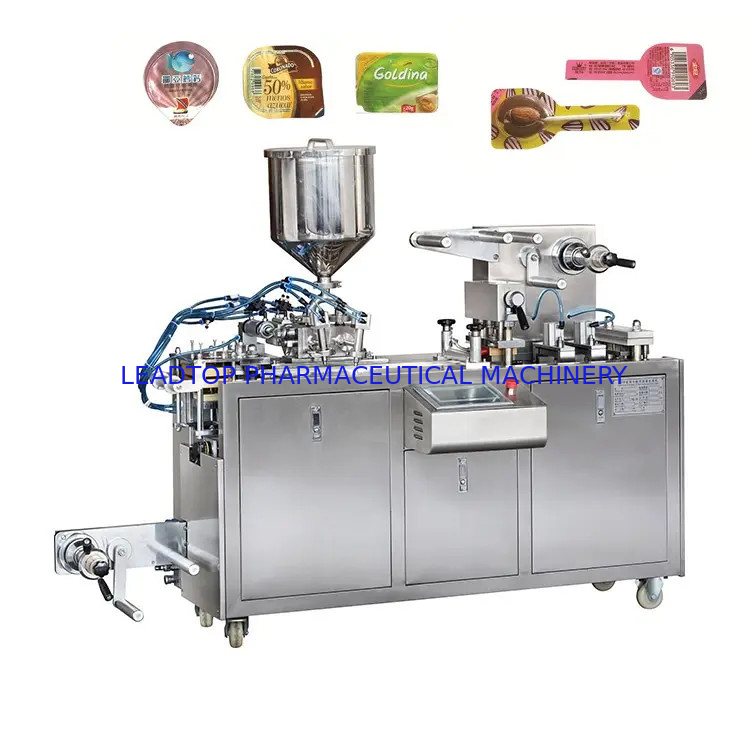

This product is a new packing machine designed by our company; it has reached domestic leading level. It is suitable for capsule,tablet, big honey pill, candy, liquid, paste, syringe as well as irregular shape al-plastic, paper-plasti c composite and al-al sealing packing in pharmacy, healthcare, food, cosmetics, medical equipment industry etc. this machine adopts micro-computer PLC,frequency converter, touch panel operation high automation; it is an ideal blister packing equipment. The product passed the provincial science and technology appraisal.
| Model | DPP-88 | DPP-140 | DPP-260 |
| Cutting Frequency (Times/min) | 20-40 | 6-50 | Al-Al ≤40 Al-plastic ≤60 |
| Max. Production Capacity (Blister/h) | 2400 (According to standard plate 80×57) | 20000-110000 | Al-Al ≤100000 Al-plastic ≤300000 |
| Max. Forming Area and Depth (mm) | 80×100×26 (can be max to 38mm) | 130×130×14 (can be max to 38mm ) |
Al-Al 250×180×15 ((can be max to 38mm ) |
| Travel Range (mm) | 20-100 (Can be manufactured as user's requirements) | 40-120 (Can be lengthened to 160mm according to user's requirements) | 180 (Can be manufactured as user's requirements) |
| Air Pressure (Mpa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
| Standard Plate (mm) | 80×57 (Can be manufactured as user's requirements) | 80×57 (Can be manufactured as user's requirements) | 80×57 (Can be manufactured as user's requirements) |
| Total Power | 380V/220V 50Hz 1.8kw | 380V/220V 50Hz 3.6kw | 380V/220V 50Hz 6.2kw |
| Main Motor Power (kw) | 0.75 | 0.75 | 1.5 |
| PVC Rigid Sheet (mm) | 0.15-0.5×80 | 0.15-0.5×140 | 0.10-0.15×260 |
| PTP Aluminum Foil (mm) | 0.02-0.035×80 | 0.02-0.035×140 | 0.15-0.5×260 |
| Dialysis Paper (mm) | 50-100g×80 | 50-100g×140 |
PVC 0.02-0.035×260 AL 0.02-0.035×260 |
| Mould Cooling | Tap Water or Circulating Water | Tap Water or Circulating Water | Tap Water or Circulating Water |
| Overall Dimensions (mm) | 1400×460×950(L×W×H) | 2300×560×1410(L×W×H) | 3800×730×1600(L×W×H) |
| Weight (kg) | 450 | 750 | 1600 |
