Pharmaceutical Ointment Vacuum Emulsifying Machine , Emulsification Equipment

China Pharmaceutical Ointment Vacuum Emulsifying Machine , Emulsification Equipment supplier

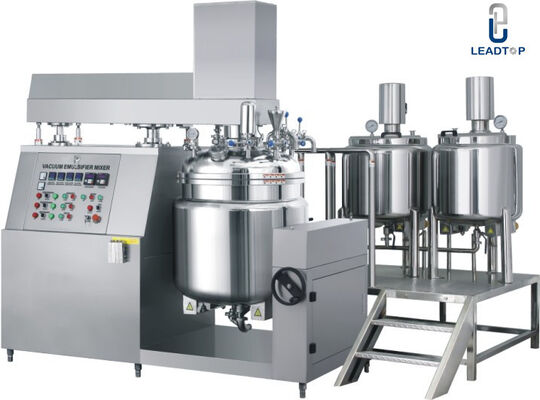

Large Image :  Pharmaceutical Ointment Vacuum Emulsifying Machine , Emulsification Equipment

Product Details:

Place of Origin: China
Brand Name: LTPM CHINA
Certification: CE,SGS
Model Number: LTRZ-200

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Packaging Details: Export Standard Wooden Case
Delivery Time: 25days
Payment Terms: T/T, L/C, D/P, Cash, Credit Card, Paypal
Supply Ability: 25sets/month
Contact Now
Detailed Product Description
Dimension: 3500mm×2450mm×2250~3150 Mm Heating Method: Jacket Electrical Heating/Seam Heating
Control Box: SUS304 , 1.2mm Thickness Capacity: 200L
Vacuum Pump: Water Cycle Jacket Working Pressure: 0.2Mpa

Pharmaceutical Ointment Vacuum Emulsifying Machine , Emulsification Equipment







Description:



  1. The materials are sucked into emulsifying pot by transportation pipe under the vacuum state, or it also can be put from the feed inlet.
  2. The material are stirred by both the center blade and side scraper, which works on the inner surface of pot keeping stirring materials from being stuck onto the wall. In the process of blade-stirring, the materials are continuously crushed, pressed, fold. Then the material is sent to the cut-off mixing unit where they are again cut off, broken and stirring by the strong interaction between running cutting wheel and cutting sheath. The materials are finally crushed into small pellets of 200um~2um. Besides, because of the vacuum in emulsifying pot, the bubbles generated during stirring and mixing process are sucked out from material. The ex-circulating system can make the homogenizing more strong. The material within the pot can be give off only under the state of change direction of the control valves.
  3. The temp controller on operation panel can adjust the temp of the homogenizer pot; The homogenizer stirring and the blade stirring cab be used simultaneously or dividedly; The homogenizer stirring time can be set by the custom according to the different material. After finished the whole procession please rise the pot cover for the clearing.



Applications:





The vacuum emulsifying machine is suitable for production of ointment and cream products in cosmetic and pharmaceutical plants. The emulsifying effect is more prominent for materials with high base viscosity and high solid content.



Specifications:





Capacity Volume 200L
Kettle Cover Liquid(particle)inlet, sunk material inlet, air inlet with filter, inspect light and sight glass, vacuum port, pressure meter(1 to -0.1 bar), pressure clamp
Mixing pot Material Inner layer: SUS316L thickness: 3mm
Middle layer: SUS304 thickness: 2mm
Outside layer: SUS304 thickness:2mm
configuration Bottom material exhaust, size: 1.5”
Temp. sensor (0-199℃)
Electrical heating: 12kw, cooling water inlet
Stirring system Homogenizer

1.Material: SUS316L; standard homogenizer

2. Power: 4 kw/380/50Hz; RPM: 0--4000R/Min

Stirring scrap and middle stirring Material: SUS316L,Scrap material: PTFE

1. Stirring scrap and middle stirring use the same motor

2,Power:1.5kw/380V/50Hz;RPM:0~86r/min(Frequency control)

3. Stirring scrap and middle stirring rotating the opposite direction

Safety: 1. During stirring, the cover can not open, 2. Cover lift can not stirring.
Vacuum system

1. Vacuum pump: water recycle, power 2.35kw/380V/50Hz

2. With pressure sensor (during vacuum condition, hydraulic can not open)

Heating method Jacket electrical heating/Seam Heating
Exhaust method Electric doom and bottom discharge or positive pressure discharge material
Pressure Pressure in the pot during working: -0.090 Mpa; Jacket working pressure:0.2 Mpa
Control box SUS304 , 1.2mm thickness
Dimension 3500mm×2450mm×2250~3150 mm
Shelf is SS, platform with raised platform and SS guardrail
Spare parts One year spare parts and tools
Guarantee One year
Using life More than 15 years






Oil pot

Design volume 100L
Working capacity 90L
Stirring power 1.1kw
Stirring speed 1400 RPM
Heating power 12 Kw



Water pot

Design volume 160L
Working capacity 150L
Stirring power 1.1kw
Stirring speed 1400 RPM
Heating power 12 Kw



Competitive Advantage:



  1. German Imported Siemens Controlling System
  2. Steam and electricity heating are both available for the machine
  3. The machine comes with safety protection system while running.
  4. One time processing high shearing homogenizing head.
