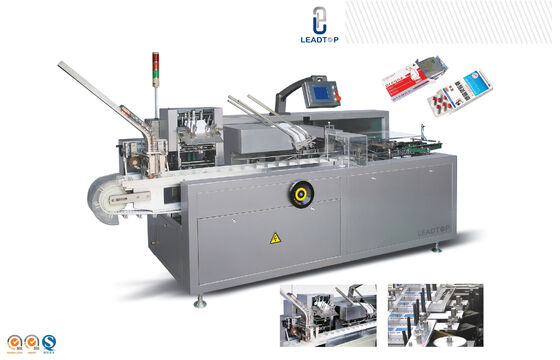

Stainless Steel Pillow Automatic Cartoning Machine For Capsule / Food / Soap Carton Box

Stainless Steel Pillow Automatic Cartoning Machine For Capsule / Food / Soap Carton Box

    • Stainless Steel Pillow Automatic Cartoning Machine For Capsule / Food / Soap Carton Box
    • Stainless Steel Pillow Automatic Cartoning Machine For Capsule / Food / Soap Carton Box
  • Stainless Steel Pillow Automatic Cartoning Machine For Capsule / Food / Soap Carton Box

    Product Details:

    Place of Origin: CHINA
    Brand Name: LTPM
    Certification: CE
    Model Number: ZH-120

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: 26800
    Packaging Details: wrapped with strech film packed into Export Standard Wooden case, this package afford long time sea shipment and anti moisture.
    Delivery Time: 25 DAYS
    Payment Terms: L/C, D/A, D/P, T/T
    Contact Now
    Detailed Product Description
    Voltage:: 380v 50hz Three Phase Place Of Origin:: Zhejiang, China (Mainland)
    After-sales Service Provided:: Engineers Available To Service Machinery Overseas Leaflet Insert:: Included
    Accesory Equipment:: Air Compressor

    Stainless Steel Pillow Automatic Cartoning Machine For Capsule / Food / Soap Carton Box







    Quick Detail:





    1.Air consumption: 120-160L/min
    2.Compressed Air Pressure: 0.6MPa
    3.Power consumption in KW: 0.75

    4.Steady production speed: 50-100 cartons/min

    5.Noise: <70 dB

    6.Weight in kg: 1100





    Description:





    This machine is suitable for automatic feeding product of multi-variety multi-specifications into carton (either for blister or bottle).Adjust automatic feeding structure conveniently,setup quantity of blisters on touch screen randomly. On line product feeding and detecting,leaflet fold(1-4folds) and feeding,leaflet detecting,canton opening and forming,products and leaflet pushing into carton,printing batch number,sealing carton with tuck-in or hot melt glue device. Automatically reject lacking of leaflet or prodcut and finished product out.





    Applications:





    1) Continuous mechanical feeding materials and carton, and working of each function part are in harmony, stable and reliable.

    2) When material do not reach correct position, the pusher has an alarm and half facility for that, in order to ensure good quality of carton packaging and safety in operation effectively.

    3) Constantly moving carton-opening mechanism and pulling carton-opening mechanism are more stable and reliable.

    4) Vibrating material categorizing and feeding mechanism is stable and reliable.

    5) Half facility for air pressure and vacuum protection, when caster opened, the halt facility will be checked automatically for operating safety of the machine.

    6) It is easy, convenient and quick to change and adjust product size by hand wheel on instrument panel.

    7) Variable frequency speed regulation, PLC automatic control, Operating on the touch screen, words and numeric display, easy to operate, stable coefficients in operation.

    8) Overload protection for principal driving, indication of failure diagnosis, and automatic halt of failure





    Specifications:





    Model ZH-120
    Weight in kg 1100
    Steady production speed 50-100 cartons/min
    Grammage Between 60-70g/m2
    Size range (80-250) ×(90-170)mm (L×W)
    Fold range (1-4 )fold
    Notice: The leaflet can be folded by the machine
    Grammage Between 250-350g/m2
    Carton Size mm (65-125)×(30-85)×(12-50)mm
    Standard power supply 220V – 50Hz
    Power consumption in KW 0.75
    Air consumption 120-160L/min
    Compressed Air Pressure 0.6MPa
    Noise <70 dB






    Competitive Advantage:





    1. we have seven technicians who gets passport ready to travel all over world to offer service to you.

    2. We have 24hours hot line for Technical Support.

    3. We get 18hours internet line for technical support.

    4. Video camera in workshop to help you adjust and solve machine problem in working situation.

    5. We have Technical Support in below Foreign Cities:

    California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Laho
