Organic Solvent / Herbal Extraction Equipment , Concentration Machine

Organic Solvent / Herbal Extraction Equipment , Concentration Machine

herbal extraction equipment

liquid extraction equipment

Place of Origin:

China

Brand Name:

LTPM China

Certification:

CE

Model Number:

LTN1/250

Contact Us

Request A Quote
Product Details
Product Description

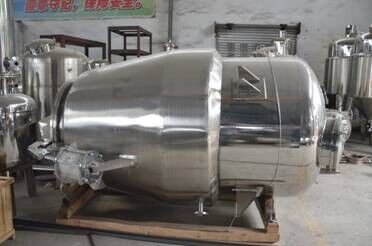

Organic Solvent / Herbal Extraction Equipment , Concentration Machine



Quick Detail:





The volume of extracting: 1 m³

Model No.: LTN-1/250

Material: Stainless steel 304

Concentrating quantity:300kgs/H

Capacity of concentrating evaporator:250kgs/H

Power Supply: 380V 50HZ Three Phase

Certificate: CE Certificate





Description:





1. This equipment mainly is consisting of concentrated tank, condenser, storage tank etc. The roundness      tank is easy to clean and discharge the material.

2. The equipment adopts vacuum decompressed concentration and the concentration proportion can get      above 1.4.

3.  In view of the thick material, we can configure with mixing device as well as turnover discharging the            material.





Applications:





This equipment is suitable for evaporating and concentrating liquid material and recycling the organic solvent in pharmaceutical, food stuff and chemical industry, etc.





Specifications:





Model LTNS-1000
Volume 1000L
Evaporating Amount 200kg/hour
Steam Pressure ≤1.5Mpa
Vacuum Degree ≤0.6Mpa
Heating Area 2.5 m2
Condensing Area 5.5 m2





Competitive Advantage:





1. we have seven technicians who gets passport ready to travel all over world to offer service to you.

2. We have 24hours hot line for Technical Support.

3. We get 18hours internet line for technical support.

4. Video camera in workshop to help you adjust and solve machine problem in working situation.

5. We have Technical Support in below Foreign Cities:

California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Laho(Distributor)

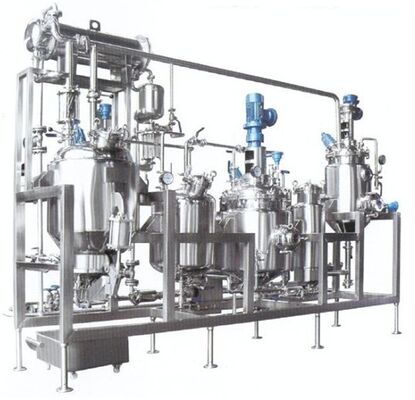

Processing Principle: Craft process chart





Organic Solvent / Herbal Extraction Equipment , Concentration Machine 0
