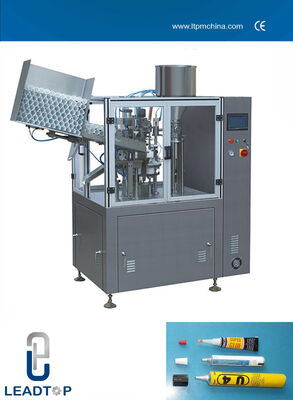

Pharmaceutical Use Automatic Tube Filling And Sealing Machine For Aluminum tube

Pharmaceutical Use Automatic Tube Filling And Sealing Machine For Aluminum tube

Pharmaceutical Use Automatic Tube Filling And Sealing Machine For Aluminum tube

Product Details:

Place of Origin: China
Brand Name: LTPM China
Certification: CE
Model Number: LTRG-60A

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Export Standard Wooden Case
Delivery Time: 25days
Payment Terms: L/C, T/T
Supply Ability: 15Set/Month
Contact Now
Detailed Product Description



Pharmaceutical Use Automatic Tube Filling And Sealing Machine For Aluminum tube





Quick Detail:





Weight: 1100kg

Dimension: 1600mm*1640mm*1900mm

Tube Diameter: Φ5mm-Φ60mm

Tube Length: 50-300mm (customizable)

Filling Speed: 30~50 tube/min

Model: LTRG-60A

Filling Volume: 5-250ml/piece (Adjustable)





Description:





1. Servo control makes it precise and convenient to adjust the filling amount by touch screen.

2. Tube feeding, eye marking, tube interior cleaning (optional), material filling, sealing (tail folding), batch number printing, finished products discharging can be performed automatically (the whole procedure).

3. With 12 stations and matching with manipulator, the machine is able to meet different type of tail folding, sealing requirements of Alu tube. It is a multi-purpose machine.

4. According to the different length of the tube, height of tube chamber can be adjusted easily by motor. With external reversal feeding system, makes tube charging more convenient and tidy.

5. The mechanical linkage photo sensor precision tolerance is less than 0.2mm. The chromatic aberration scope between tube and eye mark is reduced.

6. Photo-electronic, electric, pneumatic integrative control is applied with the machine. No tube, no filling. It gives an alarm when low pressure occurs. The machine stops automatically if tube error or open the safety door.

7. Three-layer jacket instant heater with inside air heating, it won’t damage the pattern on outer wall of tube and achieves firm and beautiful sealing effect.





Applications:





This machine is a high-tech product which successfully developed and designed by adopting advanced technology from abroad and strictly meet GMP requirement. PLC controller and color touch screen are applied and made it possible for programmable control of the machine. It can perform the filling for ointment, cream jellies or viscosity material, sealing or tail folding, batch number embossing (include manufacture date) automatically. It’s ideal equipment for aluminum tube filling and sealing for cosmetic, pharmacy, foodstuff and bond industries.





Specifications:





Tube Material Plastic tube, laminated tube
Tube Diameter Φ5mm-Φ60mm
Tube Length 50-300mm (customizable)
Filling Volume 5-250ml/piece (Adjustable)
Filling Accuracy ≤±1%
Product Capacity (Pcs/min) 30-50 0.1m3/min
Air Supply 0.55-0.65Mpa
Motor Power 4kw (380V/220V 50Hz)
Heat Sealing Power 5kw
Overall Dimension(mm) 1600*1640*1900mm (L*W*H)
Machine Weight (kg) 1100kg




Competitive Advantage:


1. We have seven technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.
5. We have Technical Support in below Foreign Cities:
California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Laho





Our Work Shop:



Pharmaceutical Use Automatic Tube Filling And Sealing Machine For Aluminum tube
