Powder Sachet Packaging Automatic Cartoning Machine Servo Motor System

China Powder Sachet Packaging Automatic Cartoning Machine Servo Motor System supplier

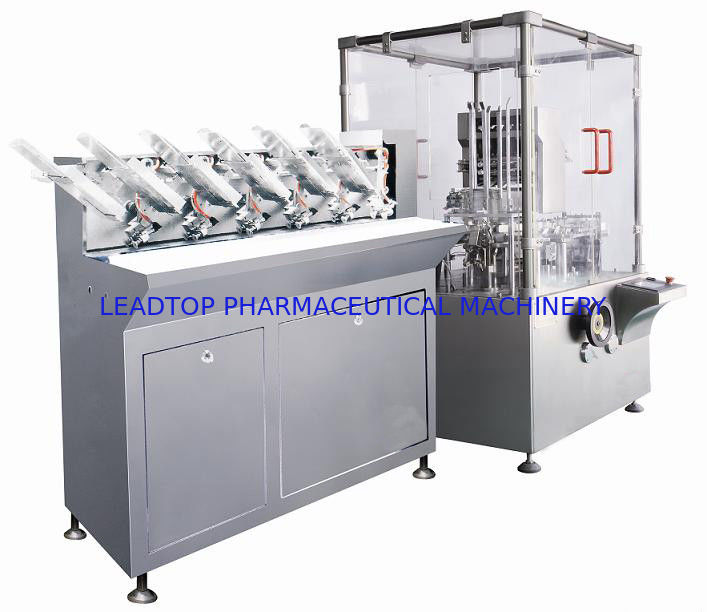

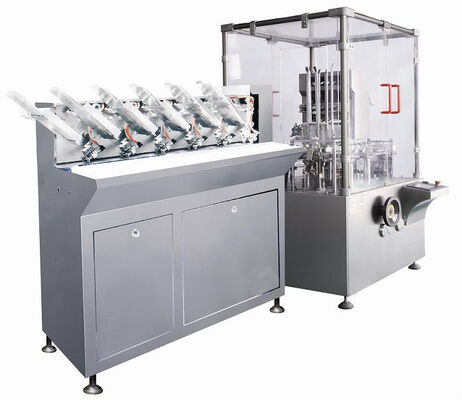

Large Image :  Powder Sachet Packaging Automatic Cartoning Machine Servo Motor System

Product Details:

Place of Origin: China
Brand Name: LTPM CHINA
Certification: CE
Model Number: ZH-120D

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negociation
Packaging Details: Wooden Case
Delivery Time: within 25 days after receiving the deposit
Payment Terms: 30% TT as deposit and 70% before shipping
Supply Ability: 25 sets
Contact Now
Detailed Product Description

Powder Sachet Packaging Automatic Cartoning Machine Servo Motor System







Quick Detail:





1.Power consumption in KW: 0.75

2.Air consumption: 120-160L/min
3.Compressed Air Pressure: 0.6MPa

4.Steady production speed: 50-100 cartons/min

5.Noise: <70 dB

6.Weight in kg: 1100





Description:





This machine is suitable for packing AL/PL Blister, bottle, Pillow Type Bags and other related similar content compact automatic leaflet folding, box opening and loading, batch number embossing as well as sealing technology processes. (Options hot-glue device extra)

The machine adopts PLC Control. Optical detect every part of the machine. The machine will stop automatically and trouble display when machine running exceptional in order to solving trouble in time. This machine can be used separately and also connect with Blister Packaging Machine online.





Applications:





1) Continuous mechanical feeding materials and carton, and working of each function part are in harmony, stable and reliable.

2) When material do not reach correct position, the pusher has an alarm and half facility for that, in order to ensure good quality of carton packaging and safety in operation effectively.

3) Constantly moving carton-opening mechanism and pulling carton-opening mechanism are more stable and reliable.

4) Vibrating material categorizing and feeding mechanism is stable and reliable.

5) Half facility for air pressure and vacuum protection, when caster opened, the halt facility will be checked automatically for operating safety of the machine.

6) It is easy, convenient and quick to change and adjust product size by hand wheel on instrument panel.

7) Variable frequency speed regulation, PLC automatic control, Operating on the touch screen, words and numeric display, easy to operate, stable coefficients in operation.

8) Overload protection for principal driving, indication of failure diagnosis, and automatic halt of failure





Specifications:





Model ZH-120
Weight in kg 1100
Steady production speed 50-100 cartons/min
Grammage Between 60-70g/m2
Size range (80-250) ×(90-170)mm (L×W)
Fold range (1-4 )fold
Notice: The leaflet can be folded by the machine
Grammage Between 250-350g/m2
Carton Size mm (65-125)×(30-85)×(12-50)mm
Standard power supply 220V – 50Hz
Power consumption in KW 0.75
Air consumption 120-160L/min
Compressed Air Pressure 0.6MPa
Noise <70 dB






Competitive Advantage:





1. we have seven technicians who gets passport ready to travel all over world to offer service to you.

2. We have 24hours hot line for Technical Support.

3. We get 18hours internet line for technical support.

4. Video camera in workshop to help you adjust and solve machine problem in working situation.

5. We have Technical Support in below Foreign Cities:

California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Lahore



Machine Loading Job for shipment:

Powder Sachet Packaging Automatic Cartoning Machine Servo Motor System



Clients' Site Traing and Adjusting Job:



Powder Sachet Packaging Automatic Cartoning Machine Servo Motor System

Certification and Workshop:

Powder Sachet Packaging Automatic Cartoning Machine Servo Motor System
