    Ointment Automatic Tube Filling and Sealing Machine For Aluminum Tube

    Product Details:

    Place of Origin: China
    Brand Name: LTPM China
    Certification: CE
    Model Number: LTRG-50

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: Negotiation
    Packaging Details: Export Standard Wooden Case
    Delivery Time: 25days
    Payment Terms: L/C, T/T
    Supply Ability: 15Set/Month
    Get Best Price Contact Now

    Detail Information

    High Light:

    automatic tube filling machine

    ,

    tube filling sealing machine

    Product Description

    Ointment Automatic Tube Filling and Sealing Machine For Aluminum Tube



    Ointment Automatic Tube Filling and Sealing Machine For Aluminum Tube





    Quick Detail:





    Work Temp: 5~50℃

    Filling Quantity :10-75ml, 20-150ml

    Dimension:1000mm*600mm*1700mm

    Capacity: 10-50 tube/min(adjustable)

    Model: LTRG-50

    Weight: 400KG





    Description:





    1. The machine is characterized by mechanism structure, high speed, high efficiency, low noise, convenient operation and maintenance.

    2. The filling volume is easy and convenient to adjust.

    3. The accuracy of adjustment is higher and the stability is good.

    4. Replacement of the base is suitable for all kinds of metal hose filling and the sealing effect is perfect.

    5. The sealing is tight. Such machine is made of high-quality stainless steel.

    6. It has the malfunction alarm and over loading stopping device.

    7. The filling nozzles with different specifications are provided to fit for the materials with different thickness.





    Applications:





    This machine is mainly used to fill the material into metal tubes with fixed quantity and then seal the tube. It is widely used for the packing of chemicals, cosmetics, foods and pharmaceuticals, such as ointment, AB glues, super glues, epoxy adhesives, skin creams, hair dye, shoeshine, toothpaste and other liquid and sticky materials. Manually put the metal tube (max:16 tubes) into the tube-holding base. With the help of automatic mechanical transmission, automatic detection can confirm the tubing process and filling process. The final step is to seal the tube.





    Specifications:





    Power Supply AC 220V±10% 50HZ
    Work Temp 5~50℃
    Filling Quantity 10-75ml, 20-150ml
    Motor Power 0.75~1.1kw
    Compressed Air Pressure 0.6~0.7Mpa
    Compressed Air Volume 0.2m3/min
    Capacity 10~50 tube/min (adjustable)
    Dimension 1000mm*600mm*1700mm
    Weight 400kg




    Competitive Advantage:


    1. We have seven technicians who gets passport ready to travel all over world to offer service to you.
    2. We have 24hours hot line for Technical Support.
    3. We get 18hours internet line for technical support.
    4. Video camera in workshop to help you adjust and solve machine problem in working situation.
    5. We have Technical Support in below Foreign Cities:
    California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Laho

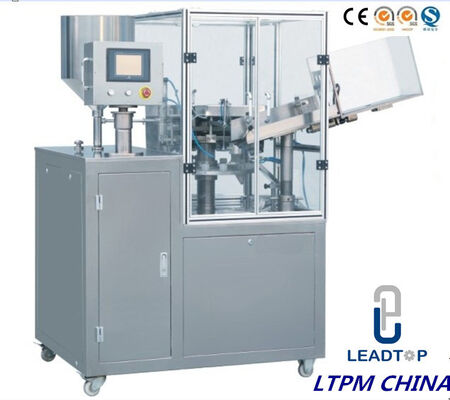

    Our Machine:
