    220V 50HZ Automatic Carton Packing Machine 50 - 100 Cartons/min

    Product Details:

    Place of Origin: China
    Brand Name: LTPM China
    Certification: CE, GMP, SGS, BV
    Model Number: ZH-100

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: Negotiation
    Packaging Details: Export Standard Wooden Case
    Delivery Time: 25days
    Payment Terms: T/T, L/C, D/P
    Supply Ability: 25 sets/Month
    Get Best Price Contact Now

    Detail Information

    High Light:

    cartoning equipment

    ,

    automatic carton packing machine

    Product Description

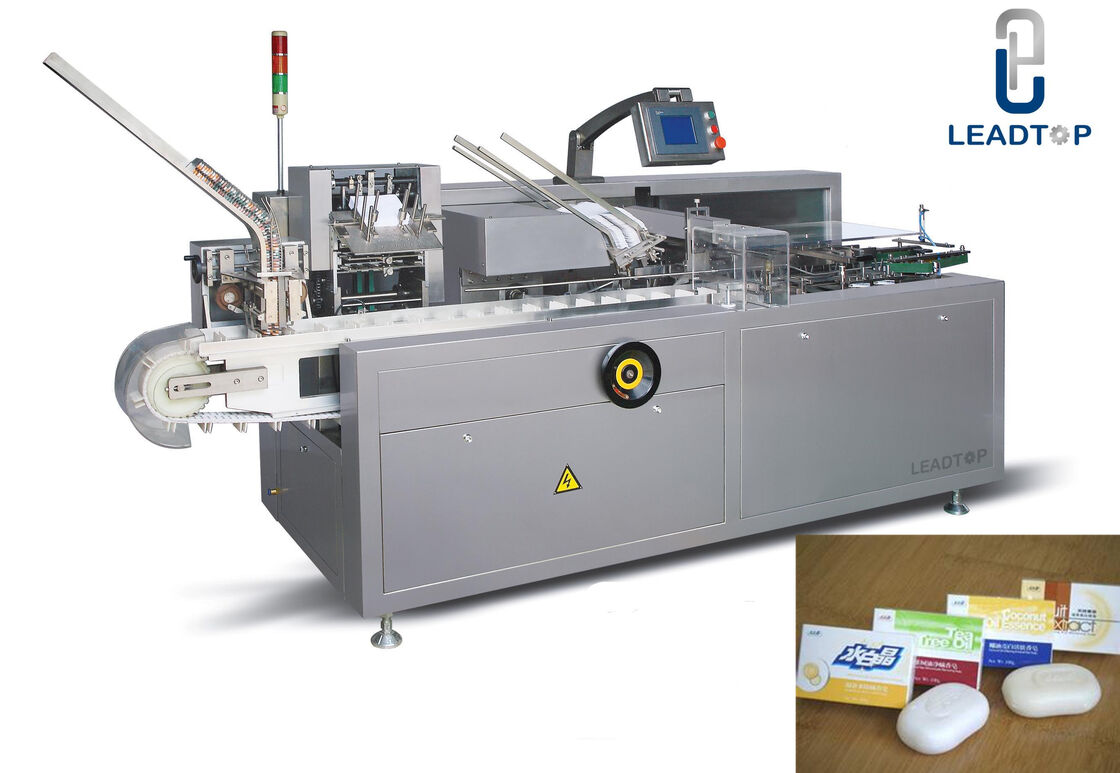

    220V 50HZ Automatic Carton Packing Machine 50 - 100 Cartons/min

    220V 50HZ Automatic Carton Packing Machine 50 - 100 Cartons/min



    Quick Detail:





    1. Steady production speed: 50-100 cartons/min

    2. Grammage: Between 60-70g/m2

    3.Size range: (80-250) ×(90-170)mm (L×W)

    4. Fold range: (1-4 )fold

    5. Standard power supply: 220V – 50Hz

    6. Power consumption in KW: 0.75





    Description:





    1. Half facility for air pressure and vacuum protection, when caster opened, the halt facility will be checked automatically for operating safety of the machine.

    2. It is easy, convenient and quick to change and adjust product size by hand wheel on instrument panel.

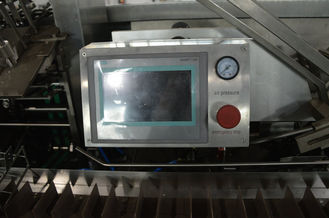

    3. Variable frequency speed regulation, PLC automatic control, Operating on the touch screen, words and numeric display, easy to operate, stable coefficients in operation.

    4. Overload protection for principal driving, indication of failure diagnosis, and automatic halt of failure





    Applications:





    This machine is suitable for packing AL/PL Blister, bottle, Pillow Type Bags and other related similar content compact automatic leaflet folding, box opening and loading, batch number embossing as well as sealing technology processes. (Options hot-glue device extra)





    Specifications:





    Model ZH-100
    Weight in kg 1100
    Steady production speed 50-100 cartons/min
    Grammage Between 60-70g/m2
    Size range (80-250) ×(90-170)mm (L×W)
    Fold range (1-4 )fold
    Notice: The leaflet can be folded by the machine
    Grammage Between 250-350g/m2
    Carton Size mm (12-125)×(12-85)×(12-50)mm
    Standard power supply 220V – 50Hz
    Power consumption in KW 0.75
    Air consumption 120-160L/min
    Compressed Air Pressure 0.6MPa
    Noise <70 dB





    Competitive Advantage:





    1. Continuous mechanical feeding materials and carton, and working of each function part are in harmony, stable and reliable.

    2. When material do not reach correct position, the pusher has an alarm and half facility for that, in order to ensure good quality of carton packaging and safety in operation effectively.

    3. Constantly moving carton-opening mechanism and pulling carton-opening mechanism are more stable and reliable.

    4. Vibrating material categorizing and feeding mechanism is stable and reliable.

    5. Half facility for air pressure and vacuum protection, when caster opened, the halt facility will be checked automatically for operating safety of the machine.

    6. It is easy, convenient and quick to change and adjust product size by hand wheel on instrument panel.

    7. Variable frequency speed regulation, PLC automatic control, Operating on the touch screen, words and numeric display, easy to operate, stable coefficients in operation.

    8. Overload protection for principal driving, indication of failure diagnosis, and automatic halt of failure
