    380V 50HZ Three Phase Blister Packaging Equipment For Mineral Water / Honey / Butter

    Product Details:

    Place of Origin: China
    Brand Name: LTPM CHINA
    Certification: CE, GMP, SGS, BV
    Model Number: DPP-140A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Wooden Case
    Delivery Time: In 25 days after receiving the deposit
    Payment Terms: 30% TT as deposit and 70% before shipping
    Supply Ability: 25 sets/Month
    Get Best Price Contact Now

    Detail Information

    High Light:

    blister packaging equipment

    ,

    automatic blister packing machine

    Product Description

    380V 50HZ Three Phase Blister Packaging Equipment For Mineral Water / Honey / Butter



    Liquid Blister Packing Machine Suitable For mineral Water, Honey, Butter And Juice, Blister Cup Forming Machine





    Quick Detail:



    Capacity: 45-100 Sheets per min

    Certificate: CE CertificateMax Forming depth of PVC:160*120*25mm

    Blanking frequency:5-50 Cutting/min

    Material: Stainless steel 304

    Capacity of air compressor:≥0.36 m3/min

    Model No.: DPP-140

    Power Supply: 380V 50HZ Three Phase





    Description:



    1. Travel scope can be adjusted.

    2. Alu Alu Blister Packaging is available for this machine.

    3. Mould is located by locating groove which makes it easy to change mould. The machine heats the PVC through conduction and forms it through pressing and frothing.

    4. The material is fed automatically. The mould and feeder can be designed as user’s requirements.

    5. Speed is shifted by step-less transducer. Adopt the interface of human-machine and PLC programmable controller, it can synchronize accurately.

    6. Adopt the equipment of trace pressing, batch number printing and scarp-collecting.

    7. Stepping motor Pulling Material more accuracy and easy adjusting

    8. The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machine’s life.





    Applications:



    This machine is our engineer update based on DPP-140B model and our clients' feedback infomation,and fetch in advanced technology from aboard .Strickly improve it according to GMP standard.A waste material collecting device has been designed to this machine which can make its function much perfect.

    Adjustable stroke:freely change the size of sheet and suitable for productioln of various kinds of specifications.

    Flat-plate framework :It is suitable for pack any kind of shape ,such as square ,triangle.oval and etc.

    Positive press forming : makes the bubble's symmetrical ,upright,and make the finished products much perfect.





    Specifications:



    MODEL: 140
    Blanking frequency (sheets): 5-50
    Sheet's quantity of one blanking (sheets): 2
    Capacity (blisters/min): 45-100
    Adjustable scope of feed travel: (mm) 10-120
    Max Forming depth (mm) PVC: 160*120*25
    Capacity of air compressor(m3/min): ≥0.36

    Power supply (KW):



    220V AC, 30 Hz, Three Phase (Depend on your requirement.)
    Weight (kg): 950Kg






    Competitive Advantage:



    1. we have seven technicians who gets passport ready to travel all over world to offer service to you.

    2. We have 24hours hot line for Technical Support.

    3. We get 18hours internet line for technical support.

    4. Video camera in workshop to help you adjust and solve machine problem in working situation.

    5. We have Technical Support in below Foreign Cities:

    California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Lahor(Distributor)

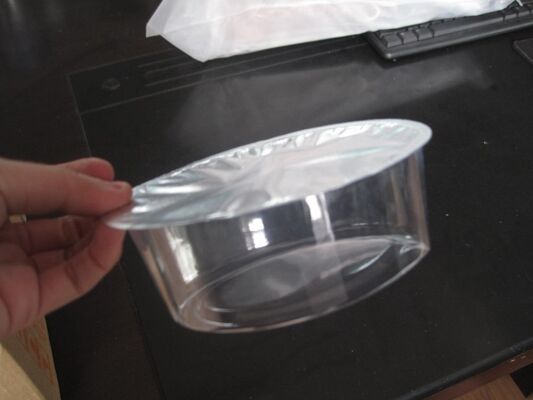

    380V 50HZ Three Phase Blister Packaging Equipment For Mineral Water / Honey / Butter 0

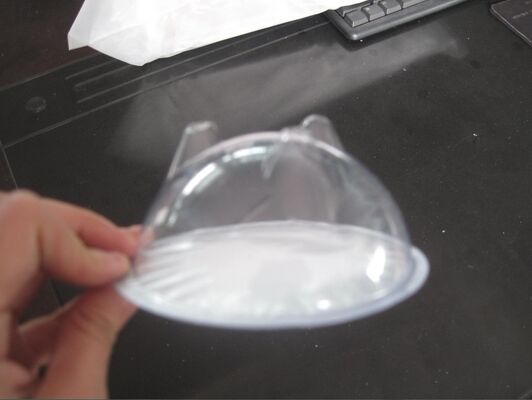

    380V 50HZ Three Phase Blister Packaging Equipment For Mineral Water / Honey / Butter 1

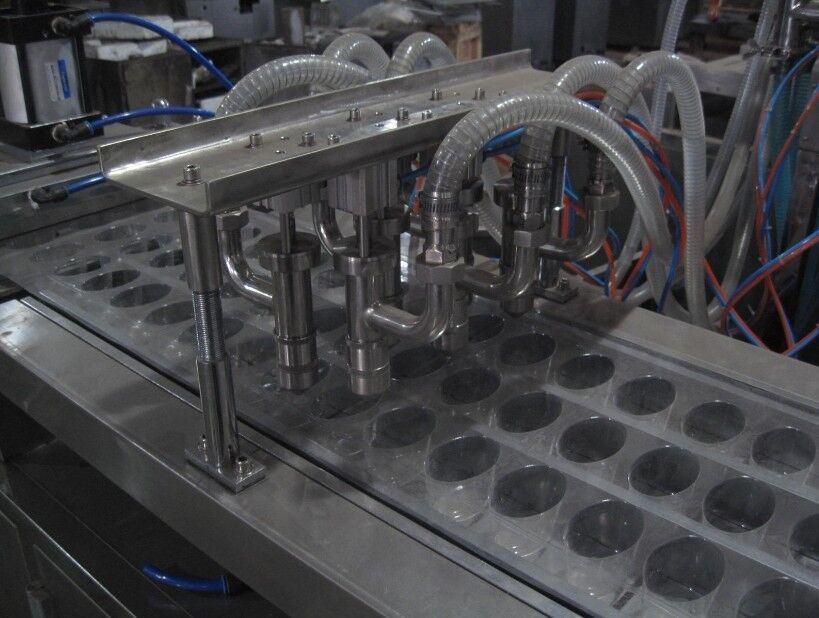

    380V 50HZ Three Phase Blister Packaging Equipment For Mineral Water / Honey / Butter 2
