• High Efficiency V Type Dry Powder Mixing Machine For Foodstuff Industry
High Efficiency V Type Dry Powder Mixing Machine For Foodstuff Industry

High Efficiency V Type Dry Powder Mixing Machine For Foodstuff Industry

Product Details:

Place of Origin: China
Brand Name: LTPM China
Certification: CE, GMP
Model Number: VH

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: 25days
Payment Terms: L/C, T/T
Supply Ability: 25sets/month
Get Best Price Contact Now

Detail Information

High Light:

dry powder mixing machine

,

powder mixer machine

Product Description

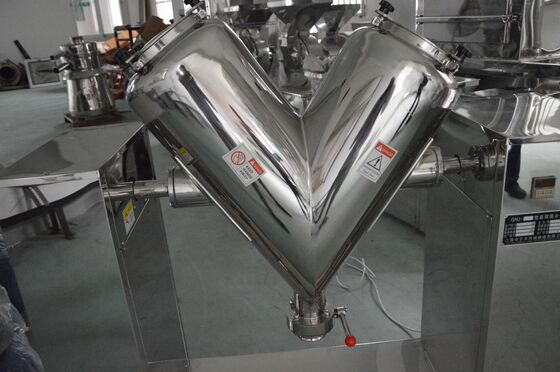

High Efficiency V type Powder Mixing Machine For Uniformly Mixing





Quick Detail:





Motor Power: 1.1Kw-18.5kw

Material Fed in Time: 3-25min

Product capacity (kg/h): 72-2400

Model Name: VH

Mixing Time: 4-12min

Rotating Height: 1580mm-5300mm

Total Weight: 280kgs-3850kgs





Description:





The structure of this machine is unique. Its mixing efficiency is high and no dead corner. It is made of stainless steel. Its inner and outer wall is processed through polishing. Its appearance is beauty. Its mixing is uniform. Its scope of application is wide. The forced stirrer can also be equipped in order to meet the requirements of raw materials that contain fine powder, cake and certain moisture as request.





Applications:





This machine is suitable for mixing two or more dry and powder or granule raw materials from pharmaceutical industry, chemical industry, foodstuff industry and so on.





Specifications:





Model
0.18
0.3
0.5
1.0
1.5
2.0
2.5
3.0
4.0
5.0
6.0
Product capacity (kg/h)
72
120
200
400
600
80
1000
1200
1600
2000
2400
Model of vacuum pump
W2
W2
W2
W3
W3
W3
W3
W4
W4
W4
W4
Time of raw material fed in (min)
3-5
3-5
4-6
6-9
6-10
8-13
8-15
8-12
10-15
15-20
18-25
Mixing time (min)
4-8
6-10
6-10
6-10
6-10
6-10
6-10
8-12
8-12
8-12
8-12
Total volume (m3)
0.18
0.3
0.5
1.0
1.5
2.0
2.5
3.0
4.0
5.0
6.0
Speed of stirring (rpm)
12
12
12
12
12
12
12
10
10
10
10
Power of motor (kw)
1.1
1.1
2.2
4
4
5
7.5
7.5
1
15
18.5
Rotating height (mm)
1580
1760
2400
2840
3010
3240
3680
3700
4350
4800
5300
Weight (kg)
280
320
550
950
1020
1600
2040
2300
2800
3250
3850




Competitive Advantage:





1. we have seven technicians who gets passport ready to travel all over world to offer service to you.

2. We have 24hours hot line for Technical Support.

3. We get 18hours internet line for technical support.

4. Video camera in workshop to help you adjust and solve machine problem in working situation.

5. We have Technical Support in below Foreign Cities:

California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Laho
