Tablet Film Coating Machine Used In Lab , Small Sugar Coating Machine

Tablet Film Coating Machine Used In Lab , Small Sugar Coating Machine

sugar coating machine

tablet coating machine

Place of Origin:

China

Brand Name:

LTPM China

Certification:

CE

Model Number:

BG-10E

Contact Us

Request A Quote
Product Details
Product Description



Tablet Film Coating Machine Used In Lab , Small Sugar Coating Machine





Quick Detail:



Max tablet volume: 10kgs/time

Sugar coating drum dia.:Φ600mm

Model No.:BG-10E

Material: Stainless steel 304

Feed inlet dia:Φ260mm

Sugar coating drum speed:2-18 r.p.m

Power Supply: 380V 50HZ Three Phase

Certificate: CE Certificate





Description:



1. With PLC module, all operations such as hot air temperature setting and control, revolutions of the drum adjustment, automatic control and display of negative pressure etc can be in run by pushing the touch key on the computer-controlled panel fully sealed with slight touch film interface.

2. The machine is free to clean, with such characteristics as reliable and stable performance. The streamline guiding-type mixer drives tablets to make easy and smooth rotation without fragment and chipped edge, which improves the yield. The guiding sheet has a narrow surface, to which no dressing can be stuck, economization on dressing and improving the quality of finished products.

3.The constant-pressure variable crawler pump features the revolution radius of the roller subject to pressure, automatic control of output syrup amounts and sprayed syrup amounts, stabilization of atomization, simplify of spraying system, economization on dressing, easy to fully clean.

4.The specially designed imported s pray gun features east to operate and control technological requirements, uniform density and particle size, uniform atomization and large spray area, practical to adjust flow, free leakage and blockage, angle and sector. The gun can be in operation until its head keeps in the range of 0.29Mpa to 0.39Mpa. Until now, It has been favorably reviewed from users at home and abroad.





Applications:



This product can be used for coating various tablets, pills and sweets with organic film, water-soluble film and sugar film, etc. And it has such characteristics as high efficiency, low energy consumption and small floor area, etc. And it can be widely used for coating various tablets, pills and sweets with organic film, water-soluble film and sugar film etc. In such fields as of pharmaceutical, food and biological products etc. And it has such characteristics as good appearance in design ,high efficiency, low energy consumption and small floor area, etc. It can automatically spray coating medium according to the process flow and reasonable process parameters. The hot air exhausted through the bottom of the tablets under the effect of air exhaust and negative pressure so as to make coating medium dry quickly on the surfaces of the tablets and form a firm, fine and close and smooth surface film.





Specifications:



Items Model BG-10
Max. tablet volume 10Kg / time
Sugar coating drum dia. Φ600mm
Feed inlet dia Φ260mm
Sugar coating drum speed 2-18 r.p.m
Host machine motor power 0.55kw
Exhaust cabinet motor power 1.1 kw
Exhaust blower air flow 1645 m3/h
Hot air cabinet motor power 0.75 kw
Air heater air flow 1070 m3/h
Air heater temp.-adjust range ~ 80 ℃
Hot air cleanness 100000 level
Peristaltic pump or lobe pump motor power 0.37kw
Silicon rubber hose Φ9~16mm
External dimensions of host machine

900*860*1950

mm

Host machine weight 280㎏
External dimensions of hot air cabinet

870x670x670

mm

Hot air cabinet weight 60㎏
External dimensions of exhaust cabinet

870x670x670

mm

Exhaust cabinet weight 60㎏

External condition





Clean

Air

Pressure ³0.4Mpa
Air consumption. 0.2m3 /min.



Water

source

Pressure ³0.15Mpa
Pipe dia 1’’



Steam

heating

type

Steam Pressure ³0.4Mpa
Air consumption. 25㎏/h
Power source

3 phase and 5 lines

5 kw





Electric heating type





Power source



3 phase and 5 lines10 kw





Competitive Advantage:



1. we have seven technicians who gets passport ready to travel all over world to offer service to you.

2. We have 24hours hot line for Technical Support.

3. We get 18hours internet line for technical support.

4. Video camera in workshop to help you adjust and solve machine problem in working situation.

5. We have Technical Support in below Foreign Cities:

California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Laho(Distributor)

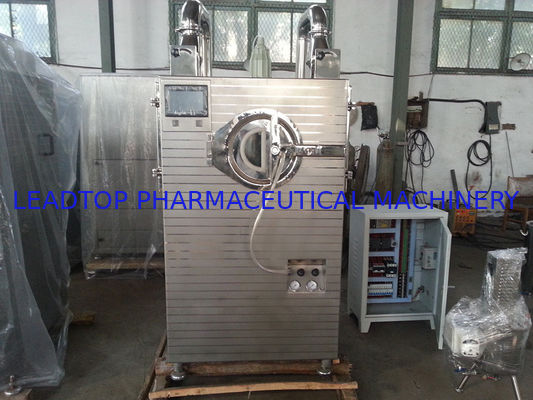

Tablet Film Coating Machine Used In Lab , Small Sugar Coating Machine 0

Tablet Film Coating Machine Used In Lab , Small Sugar Coating Machine 1
