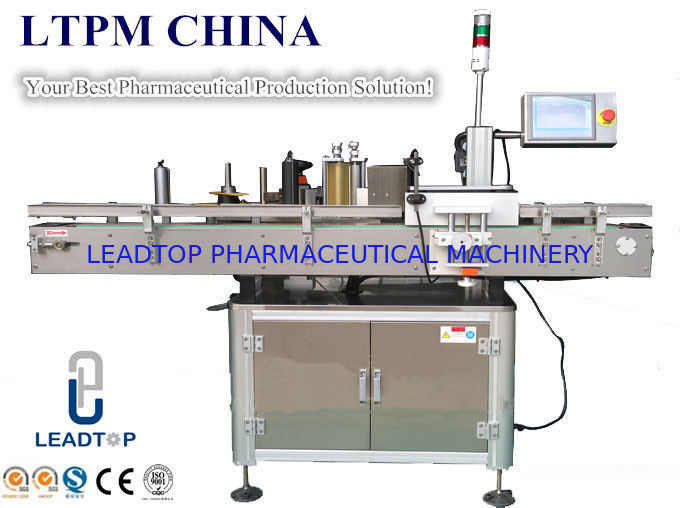

Vertical Big Round Bottle Automatic Labeling Machine AC220V 50HZ / 60HZ CE Certificate
Labeling Speed: ≤40 m/min
Model No.: MT-150
Material: Stainless steel 304
Running speed: 30-150 bottle/min
Overall Size: 1800×700×1270mm
Certificate: CE Certificate
1. Synchronization chain mechanism ensure labeling smooth.
2. Advanced technology of pneumatic code system, print the batch number and expiry clearly;
3. Transmission-type roll label device, make sure the label attached more firmly;
4. Imported electric elements, stable performance, low failure rate;
5. Adopt photoelectric detection, PLC control system, software operation, conveyor belt, labeling accurately with high precision;
6. Can be operated alone or contract with the production line;
7. No bottle not labeling, automatic alarm when achieve leakage label.
8. The whole machine use the material of S304 stainless steel and anodized senior aluminum alloy,with high corrosion resistance and never rust;
9. Adopt mature technology PLC control system, operation is stable and high-speed
10. Using touch-screen control operating system, simple, practical, efficient;
11. Upgraded disc label station design, can label conical and flask bottle;
12. Screw adjustment suppressing mechanism suppress bottle move accurately;
MT-150 model Vertical big round bottle sticker labeling machine, in order to achieve rationalization of production target and design. The machine comes with automatic labeling process, simple operation, high speed running, accurate labeling position, beautiful labeling. The machine can be used for pharmaceutical, chemical and foodstuff Industry labeling.
|Driving Mode||Servo motor|
|Labeling Speed||≤40 m/min|
|Operating direction||Left or Right|
|Labeling Accuracy||±1.0 mm (subject to the roughness of the plane)|
|Label Specifications||Glassine Paper, opaque label|
|The application of bottle||Outer diameter 40-100mm; Height 35-180mm|
|The application of label||Height 20-140mm; Length 23-280mm|
|The inner diameter of label||Min. volume 76mm|
|The outer diameter of label volume||350mm (max.)|
|The power of motor||550W|
|Voltage||AC220V 50/60HZ Single phase(Can customized according to Client country’s voltage)|
1. We have seven technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.
5. We have Technical Support in below Foreign Cities:
California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Laho
