Customized Carton Single Side Automatic Labeling Machine With Servo Motor

China Customized Carton Single Side Automatic Labeling Machine With Servo Motor supplier
Customized Carton Single Side Automatic Labeling Machine With Servo Motor supplier Customized Carton Single Side Automatic Labeling Machine With Servo Motor supplier Customized Carton Single Side Automatic Labeling Machine With Servo Motor supplier

Large Image :  Customized Carton Single Side Automatic Labeling Machine With Servo Motor

Product Details:

Place of Origin: China
Brand Name: LTPM China
Certification: CE, GMP
Model Number: MT

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: 25days
Payment Terms: L/C, T/T
Supply Ability: 25sets/month
Detailed Product Description

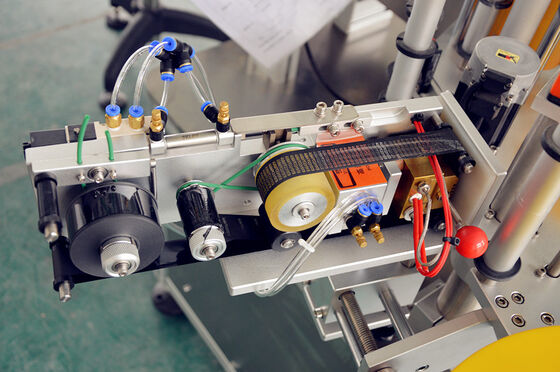

Customized Carton Single Side Automatic Labeling Machine With Servo Motor


Quick Detail:



The standard system: Servo Motor

Weight:180kg
Labeling accuracy: ±1mm
Model No.: MT-130A

Material: Stainless steel 304

Certificate: CE Certificate
Running speed:: 20-130 carton/min
Overall Size: 2200×1400×1500mm



Description:


1. Using side label method, add Press carton structure, ensure the stability of carton.

2. When the label touch the carton, the brush firm the front label; make sure the label is smooth and firm.

3. Conveyor speed can be adjusted to match up the send label speed, ensure label no wrinkle.

4. The inverter control the Motor, make sure the conveyor speed,press carton speed and send label speed synchronous operation, label surface is smooth and label position is accurate.

5. The durable engine and parts are solid and durable, adopt standardized modular design completely interchangeable, 24-hour operation ensure the security and stability.

6. The whole machine use S304 stainless steel and anodized senior aluminum alloy, Never rust and with high corrosion resistance.

7. Using touch-screen control operating system, simple and efficient;

8. Upgrade new standard station design, the angle can adjust depends on different carton size;

9. Top press device ensure stability of carton when labeling, particularly applicable for light and small cartons;

10. Combine the characteristic of light label objects, adopt Belt conveyor with High stability;

11. Adopt mature technology PLC control system, operation is stable and high-speed.



Applications:


MT-130A model Carton Single Side Seal Sticker Labeling Machine, in order to achieve rationalization of production target and design. The machine comes with automatic labeling process, simple operation, high speed running, accurate labeling position, beautiful labeling. The machine can be used for pharmaceutical, chemical and foodstuff Industry labeling.


Specifications:





The standard system Servo Motor
Capacity 20-130 carton/min
Operating Direction Left or right
Label speed ≤35 m/min
Tags volume inner diameter 76 mm
Tags volume outer diameter 350 mm (max)
Label Specifications Glassine backing Paper , opaque label (The application of carton Can be customized according to customer’s demand)
Labeling accuracy ±1.0mm (subject to the roughness of the plane)
Weight 180KGS
Total motor power 800W
Power supply AC220V 50/60HZ Single phase
Size appearance (mm) 2200 (L) 1400 (W) 1500(H)



Competitive Advantage:


1. We have seven technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.
5. We have Technical Support in below Foreign Cities:
California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Laho
