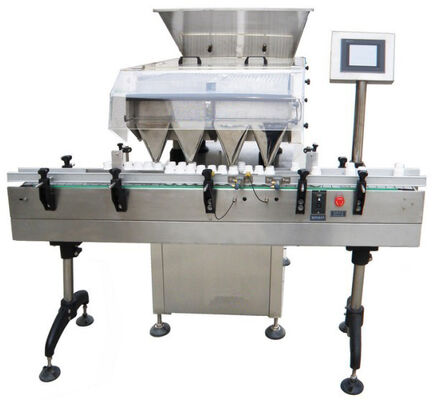

Automatic Photo Cell Electronic Capsule Counting Machine with 32 Channel Sensor

China Automatic Photo Cell Electronic Capsule Counting Machine with 32 Channel Sensor supplier
Automatic Photo Cell Electronic Capsule Counting Machine with 32 Channel Sensor supplier Automatic Photo Cell Electronic Capsule Counting Machine with 32 Channel Sensor supplier

Large Image :  Automatic Photo Cell Electronic Capsule Counting Machine with 32 Channel Sensor

Product Details:

Place of Origin: China
Brand Name: LTPM China
Certification: CE, GMP, SGS, BV
Model Number: LTEC-32

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Export Standard Wooden Case
Delivery Time: 25days
Payment Terms: T/T,L/C,D/P
Supply Ability: 15sets/month
Contact Now
Detailed Product Description

Automatic Photo Cell Electronic Capsule Tablet Counting Machine with 32 Channel Sensor Tablet Counter





Quick Detail:



LTEC-32 Multi channel Counting machine with vibrating function

Passed CE Certification up to GMP Standard

Newly Developed Software Controlling System suitable for different batch of production

It needs no changing parts while switch product size.





Description:



     LTEC-32 Automatic Electronic counting machine is special for counting tablets, soft gelatin, hard capsule and chewing gums, etc. This machine adopts 32 sets imported counting sensor for counting with 16 Guiding Way and two head. The advantage of the machine is no need change mould when you change the counting object, only adjusting the counting table height by Easy Adjust wheel. The machine comes with Touch screen operation and PLC Control for convenient running.





Applications:



    wide application and use of the Company's original anti-dust photoelectric detection of high technology, can count Tablets (including special-shaped tablets), capsules, soft capsules (transparent, opaque), pill count to bottling;





Specifications:



Model Name LTEC-32
Application

Filled capsule(00-5#)

Soft Gelatin capsule

chewing gum

tablet

other solid object under machine range

Hopper Volume 2*40L
Capacity 12,000pcs/min
Filling Quantity 10-9999pcs/bottle (adjustable)
Bottle Size

Diameter: 30-75mm

Height:40-250mm

Counting Size

Thickness: 3-10mm

Diameter: 3-15mm

Length: 3-25mm

Compressed air 0.5Mpa
Conveyor Belt Length 3400mm
Machine Weight 950kg
Machine Size L × W × H (mm) 1900 × 3000 × 1670





Competitive Advantage:



  1. Compatibility, high accuracy, wide application and use of the Company's original anti-dust photoelectric detection of high technology, can count Tablets (including special-shaped tablets), capsules, soft capsules (transparent, opaque), pill count to bottling;
  2. Vibratory cutting drugs do not damage;
  3. A high degree of intelligence, with no bottle is not the number of self-fault detection alarm and many other control functions;
  4. Compact structure, stability and durability, and no regular replacement parts, small footprint, the use of low-cost;
  5. To facilitate the replacement of species, can automatically take-off and landing, demolition cleared without any tools, convenient and quick;
  6. Chinese dialogue control panel, can store 10 ~ 20 group of species parameters, adjusted to facilitate the use of special;
  7. Fully automatic operation, with the Upper and Lower Union Road, intelligent control of processes, coordination, and no special operation, labor-saving devices.
  8. Low prices, especially for small-volume, variety and more manufacturers use.
  9. Control chip imported to the United States, photoelectric sensors for Taiwan's imports.

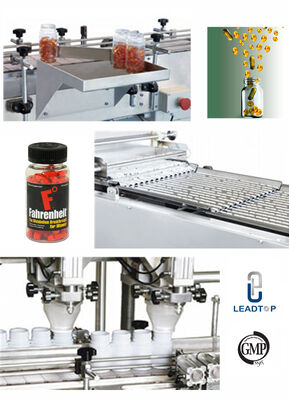

Automatic Photo Cell Electronic Capsule Counting Machine with 32 Channel Sensor
