Small Wine / Water Bottle Automatic Labeling Machine With Touch Screen Display

Good quality Automatic Labeling Machine for sales
Good quality Automatic Labeling Machine for sales
The Fluid Bed Dryer is really strong machine, bro!

—— Bob, California, USA

We are so glad to know you and be your partner. Welcome to Philippines

—— Edgar, Davao, Philippines

Conductivity of Purified Water after your double RO machine is 0.54 since our raw water is 428. Thanks, my friend.

—— Habibur, Dhaka, Bangladesh

su empresa es un genio de maquinaria! Glad to be your partner in Peru.

—— Diaz, Lima, Peru

I'm Online Chat Now

Small Wine / Water Bottle Automatic Labeling Machine With Touch Screen Display

China Small Wine / Water Bottle Automatic Labeling Machine With Touch Screen Display supplier
Small Wine / Water Bottle Automatic Labeling Machine With Touch Screen Display supplier Small Wine / Water Bottle Automatic Labeling Machine With Touch Screen Display supplier Small Wine / Water Bottle Automatic Labeling Machine With Touch Screen Display supplier

Large Image :  Small Wine / Water Bottle Automatic Labeling Machine With Touch Screen Display

Product Details:

Place of Origin: China
Brand Name: LTPM China
Certification: CE, GMP
Model Number: MT

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: 25days
Payment Terms: L/C, T/T
Supply Ability: 25sets/month
Contact Now
Detailed Product Description

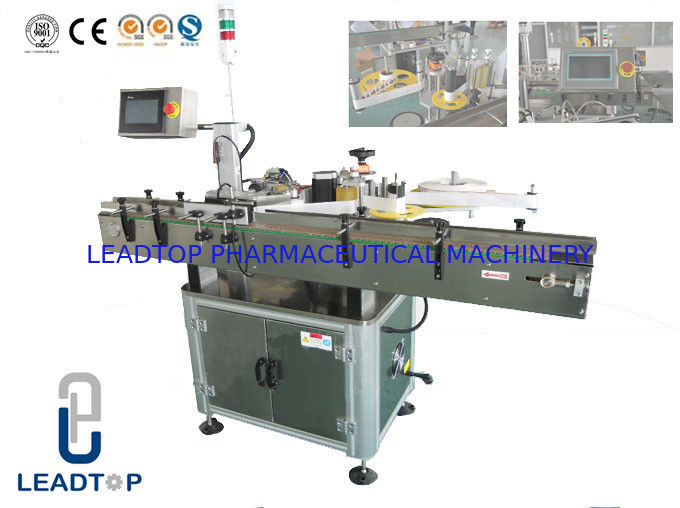

Small Wine / Water Bottle Automatic Labeling Machine With Touch Screen Display​





Quick Detail:





Weight: 160kg

Model No.: MT-200C

Running speed: 40-200 bottle/min

Operating direction: Left or right

Overall Size: 1800×700×1270mm

Material: Stainless steel 304

Driving mode: Servo motor

Certificate: CE Certificate





Description:

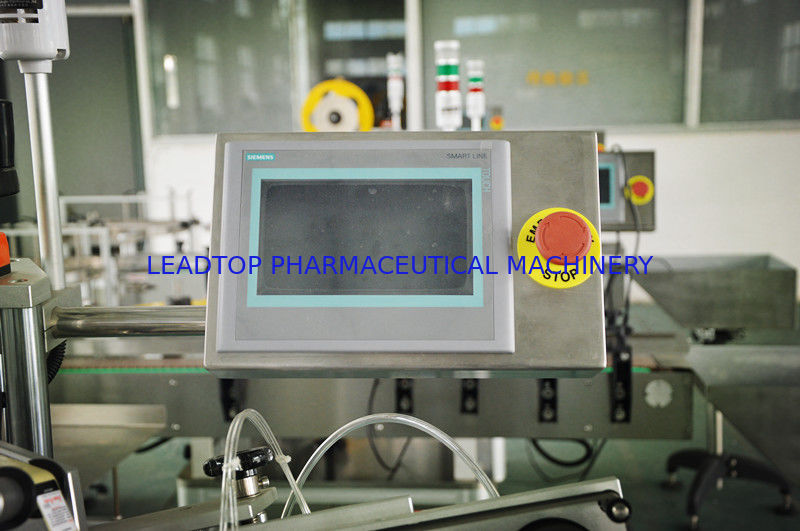

1. Using touch-screen man-machine control operating system, simple, and efficient;

2. Adopt mature technology PLC control system, operation is stable and high-speed

3. Screw adjustment to suppress bottle move accurately;

4. Synchronization chain mechanism ensure labeling smooth with high precise;

5. Advanced technology of pneumatic coding system, print the batch number and expiry clearly.

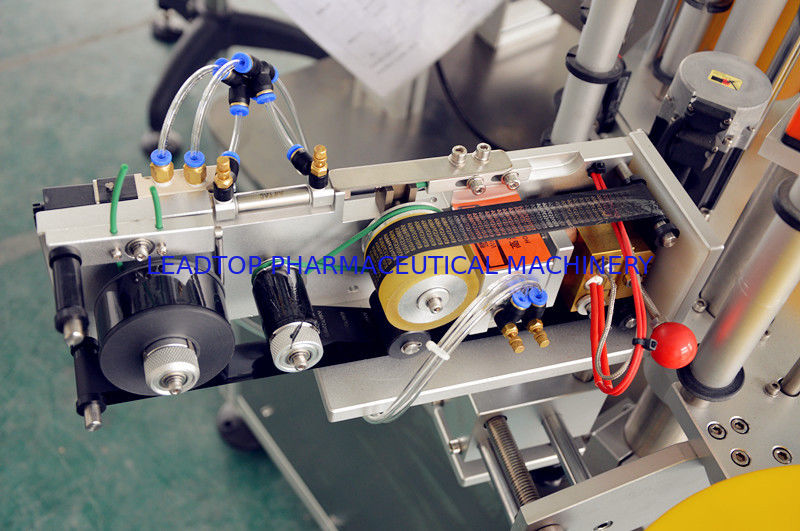

6. Transmission-type roll label device, make sure the label attached more firmly

7. Imported electric elements, stable performance and low failure rate;

8. Adopting photoelectric detection, PLC control, software operation, conveyor belt, labeling accurately high precision;

9. Can be operated alone or contract with the production line;

10. No bottle not labeling, automatic alarm when achieve leakage label.

11. The whole machine use the material of S304 stainless steel and anodized senior aluminum alloy.





Applications:





MT-200C model Vertical small round bottle sticker labeling machine, in order to achieve rationalization of production target and design. The machine comes with automatic labeling process, simple operation, high speed running, accurate labeling position, beautiful labeling. The machine can be used for pharmaceutical, chemical and foodstuff Industry labeling.





Specifications:





Production 40-200 bottle/min
Labeling speed ≤40m/min
Labeling accuracy ±1mm (subject to the roughness of the plane)
Operating direction Left or right
The application of bottle Outer diameter 40-100mm Height 35-180mm
The application of label Height 20-140mm Length 23-280mm
The inner diameter of label plate 76mm
The outer diameter of label plate Max. 350mm
Driving mode Servo motor
The power of motor 550w
Size appearance 1800×700×1270mm
Weight 160kg
Voltage AC 220V 50/60Hz Single phase (according to the voltage in client country)





Competitive Advantage:





1. We have seven technicians who gets passport ready to travel all over world to offer service to you.

2. We have 24hours hot line for Technical Support.

3. We get 18hours internet line for technical support.

4. Video camera in workshop to help you adjust and solve machine problem in working situation.

5. We have Technical Support in below Foreign Cities:

California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Laho





Our Machine Get Ready For Sending:





Small Wine / Water Bottle Automatic Labeling Machine With Touch Screen Display





Station:





Small Wine / Water Bottle Automatic Labeling Machine With Touch Screen Display
