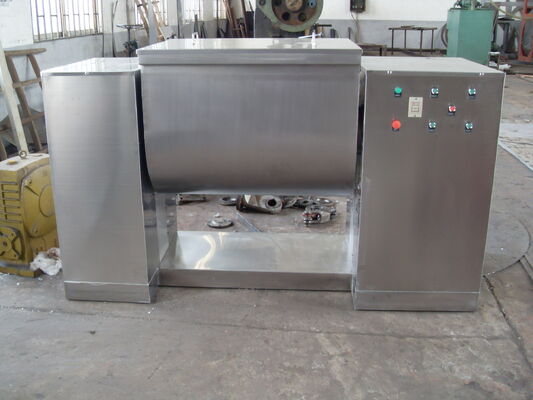

No Dead Corner Groove Type Mixing Machine For Wet Mixing With Sealed Devices
Quick Detail:
Volume (L): 50
Power of agitation motor (kw): 2.2
Rotation speed of agitation (r/min): 24
Power of Inclined motor (kw): 0.55
Inclined angle (°): 105
Weight (kg): 350
Overall dimensions (mm): 1000×400×800
Description:
Groove Type mixer is widely used to mix powder or mosit materials and make the different proportion of main and supplementary materials mixed evenly.

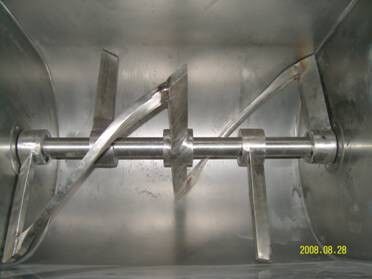

All the parts touched with materials are made of stainless steel. The clearance between blades and vessel body is small so that there is no dead corner during mixing. Sealed devices are installed at the two ends of mixing shaft to prevent the leakage of materials.
Applications:
It is widely used in the industries of pharmacy, chemical, food, etc.
Specifications:
| Volume (L) | 50 |
| Power of agitation motor (kw) | 2.2 |
| Rotation speed of agitation (r/min) | 24 |
| Power of Inclined motor (kw) | 0.55 |
| Inclined angle (°) | 105 |
| Weight (kg) | 350 |
| Overall dimensions (mm) | 1000×400×800 |
