Place of Origin:
China
Brand Name:
LTPM CHINA
Certification:
CE
Model Number:
DPP-88
Contact Us

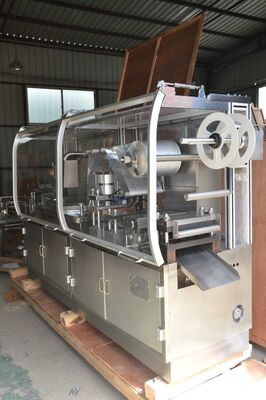

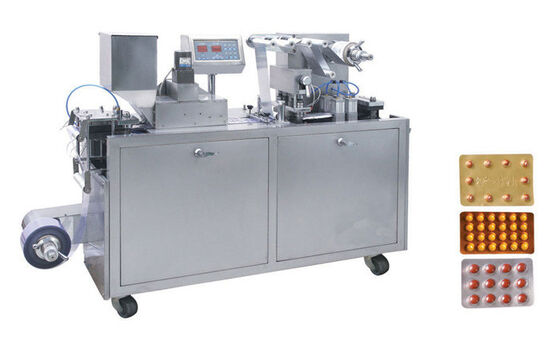

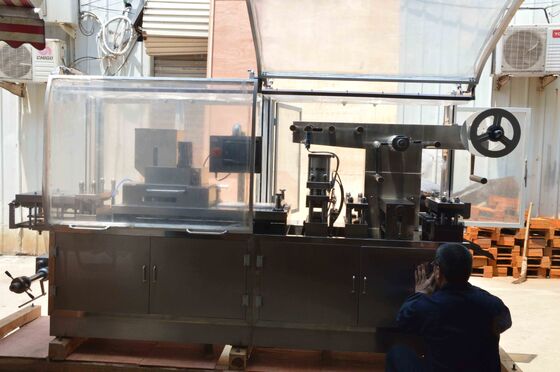

Aluminum Plastic Blister Packing Machine With Stepper Motor Drive
Quick Detail:
Blanking frequency:10-35 times/min
Model No.DPP-88
Sheet's quantity of one blanking:1 sheet
Adjustable scope of feed travel:600-2100mm
Material: Stainless steel 304
Power Supply: 380V 50HZ Three Phase
Certificate: CE Certificate
Description:
1.Travel scope can be adjusted. Mould is located by located groove so that it’s easy to change mould. The machine heats the PVC through conduction and forms it through pressing and frothing.
2.The material is fed automatically. The mould and feeding equipment can be designed as user’s requirements.
3.The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machine’s life.
4.The equipment of trace pressing, batch number printing and scrap-collecting can be chose.
5.Manipulator grip and tow wrapper, straight to-and-fro running, synchronize accurately and stably.
6.Speed is shifted by step-less transducer; the operation panel of PC cycle (can be Adopt interface of human-machine).
Applications:
The machine is new product which is improved based on customer’s requirements. It’s suitable for packaging of all kinds of liquid and solid in medium & small pharmaceutical factory, health medicine factory, hospital preparation lab, food industry, electronic industry, hardware industry, etc. It can protect the material from steam or dust, improve product packing degree, and increase the additional value. The machine is used to produce small quality and many kinds of products.
Specifications:
| Model | 88 | |
| Blanking frequency(times/min) | 15-40 | |
| Sheet's quantity of one blanking(sheets) | 1 | |
| Capacity(sheets/hour) | 900-2100 | |
| Adjustable scope of feed travel | 10-110 | |
| Max Forming(mm) | 120*110*15mm | |
| Capacity of air compressor((m3/min) ) | ≥0.25 | |
| Power supply | 380V 50Hz 5.5Kw | |
| Wrapper specification(mm) | PVC for medicine(mm) | 120×(0.15-0.5) |
| Aluminum foil | 120×(0.02-0.035) | |
| Overall dimensions(mm) | 1650*500*1100mm | |
| Weight(Kg) | 650 | |
Competitive Advantage:
1. we have seven technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.
5. We have Technical Support in below Foreign Cities:
California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Laho(Distributor)
