|Place of Origin:||China|
|Brand Name:||LTPM China|
|Certification:||CE, GMP, SGS, BV|
|Minimum Order Quantity:||1set|
|Packaging Details:||Export Standard Wooden Case|
|Payment Terms:||T/T, L/C, D/P|
|Supply Ability:||25 sets/Month|
|Item:||Carton Packaging Machine||Operation:||Touch Screen|
Siemens Controlling System Automatic Cartoning Machine For Packing Bottles
1. Electric Power: AC380V 50HZ 2.5KW (It is required by you)
2. Capacity: 50-100cartons/min
3. Volume of consumption: 20m3/h(presure0.5-0.8MPa)
4. Noise: less than 80dB (A)
This machine is suitable for packing AL/PL Blister, bottle, cosmetic playing card and other related similar content compact automatic leaflet folding, box opening and loading, batch number embossing as well as sealing tec processes. (Options hot-glue device extra)
The machine adopts PLC Control. Optical detect every part of the machine. The machine will stop automatically and trouble display when machine running exceptional in order to solving trouble in time. This machine can be used separately and also connect with Blister Packaging Machine online.
The cartooning suitable for packing: Alu/Alu or Alu/PVC Blister Plate, Bottles, Vial, Ampoule, Soap, toothpaste, poker, bags, etc.
1. Mitsubishi Servomotor, Touch screen and PLC control system make operating and adjusting easily. Man-machine interface from abroad,easily operate,alarm diaply
2. Photoelectric follow-up: color cover film or optical film can be used for packaging, reduce cost and upgrade the products.
3. With assembling moulds, they can be replaced easily and can be used on several machines. The mould is equipped with a cooling system.
4. An automatic code printing system can be equipped as per user's requirements for product packaging.
5. According to user's requirements for product packaging, nitrogen or other protective gases can be filled into the package after vacuuming.
6. With a world first–class vacuum pump made in Germany, advantages include high degree of vacuum, steady quality and good durability. Vacuum pump from Germany.
7. With clamping chains imported from Germany, this machine is applicable for stretch shaping of soft films, hard films and semi-hard films with different thickness.
8. Has a scrap recycling system, good environment and health can be maintained.
9. With advanced transverse and longitudinal cutting system, making change easy and simple.
10. Phase failure protection :Loss of phase protection make safety when losselectric power
11.Servo drive sysytem :Orientation exactly,more safe.
12. Creepage protection: Make sure the safety of operator.
Main Technical Data
|Electric Power||AC380V 50HZ 2.5KW (It is required by you)|
|Volume of consumption||20m3/h(presure0.5-0.8MPa)|
|Noise||less than 80dB (A)|
|Max Size||200*80*50mm (L*H*W)|
|Mini Size||50*20*14mm (L*H*W)|
|Max Size||260*190mm (L*W)|
|Mini Size||100*100mm (L*W)|
1. Gluing Folding System
2. Bottle Feeding System
3. Sachet Feeding System
1. Continuous mechanical feeding materials and carton, and working of each function part are in harmony, stable and reliable.
2. When material do not reach correct position, the pusher has an alarm and half facility for that, in order to ensure good quality of carton packaging and safety in operation effectively.

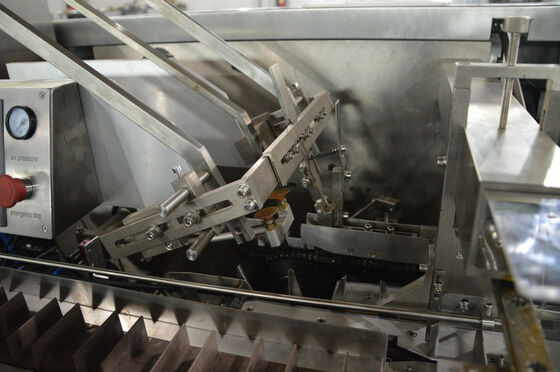

3. Constantly moving carton-opening mechanism and pulling carton-opening mechanism are more stable and reliable.
4. Vibrating material categorizing and feeding mechanism is stable and reliable.
5. Half facility for air pressure and vacuum protection, when caster opened, the halt facility will be checked automatically for operating safety of the machine.
6. It is easy, convenient and quick to change and adjust product size by hand wheel on instrument panel.

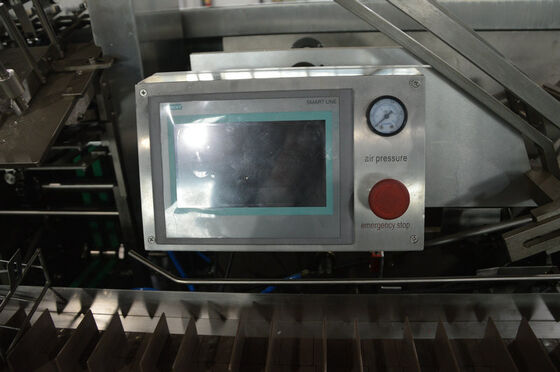

7. Variable frequency speed regulation, PLC automatic control, Operating on the touch screen, words and numeric display, easy to operate, stable coefficients in operation.
8. Overload protection for principal driving, indication of failure diagnosis, and automatic halt of failure
PACKING TO SHIP:
Contact Person: Mr. Chan
