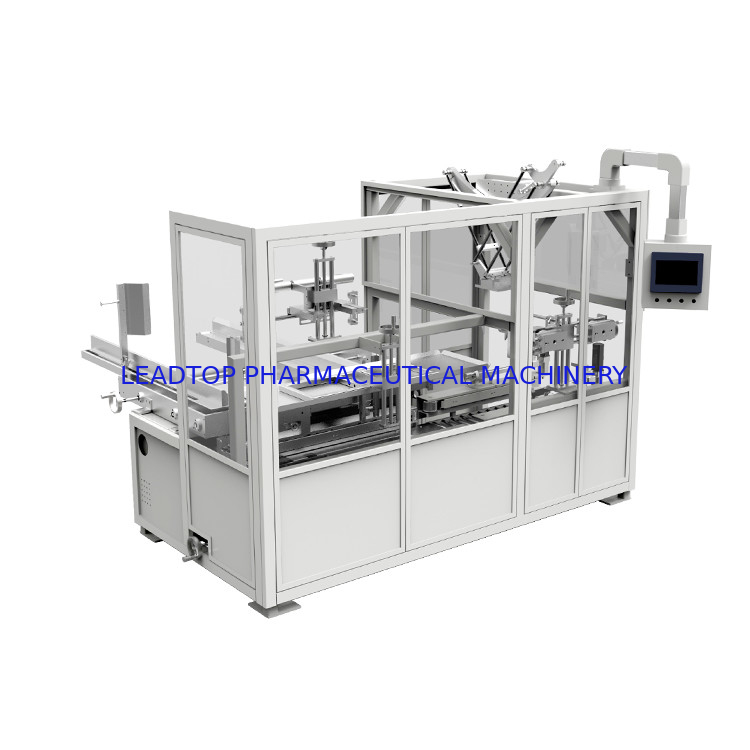

Multifunction Snack Food Cartoning Machine 130pcs/Min Carton Box Packaging Machine

Multifunction Snack Food Cartoning Machine 130pcs/Min Carton Box Packaging Machine

Multifunction Snack Food Cartoning Machine

130pcs/Min Carton Box Packaging Machine

80 Boxes/Min Snack Food Cartoning Machine

Place of Origin:

China

Brand Name:

LTPM China

Model Number:

ZH-130

Contact Us

Request A Quote
Product Details
Certification:
CE, ISO
Packaging Material:
Paper
Application:
Food, Beverage, Chemical, Cigarettes, Tobacco
Driven Type:
Electric
Dimension(L*W*H):
3600*1200*1700mm( L*W*H)
Weight:
1300kg
Working Pressure:
≥0.6mpa
Capacity:
30-130 Cartons/min
Product Description

Multifunction Snack Food/Frozen Food/Medicine Automatic Carton Box Packaging Machine



Cartoning machine is a packaging machine which form a carton board blank into a carton, filled with a product or bag of products or number of products into single carton via robot, after the filling, the machine close both the ends of carton completely sealing the carton.

All our cartoning solutions are designed to improve productivity for our customers with easy-to-use equipment that can increase output while reducing labor cost.



Technical Parameters

Description Automatic cartoning machine
Model ZH-Series Cartoning machine
Speed 50-80 boxes/min
Carton specification Paper material 250-400g/m2 ( need flat surface)
Box size L*W*H(100-240)*(15-150)*(25-85)mm
Power supply 220V/380V,50HZ. Main motor 1.5kw
Dimension 3600*1200*1700mm( L*W*H)
Weight 1300kg
Air supply ≥0.6Mpa
Air consumption 20m3/H
Glue machine China Jingtai(optional )

Features

The cartoning machine system consists of three modules: unpacking module, robot hand filling module, sealing module, etc. The
modules can be freely combined to meet the customized needs of customers.
The system can meet the requirements of regular shape items such as food, household paper, etc., as well as special-shaped
products such as pillow bag packaging, gusset bag packaging, etc.
The storage tank for folded carton is big and can be increased the storage tank position according to customer requirements.

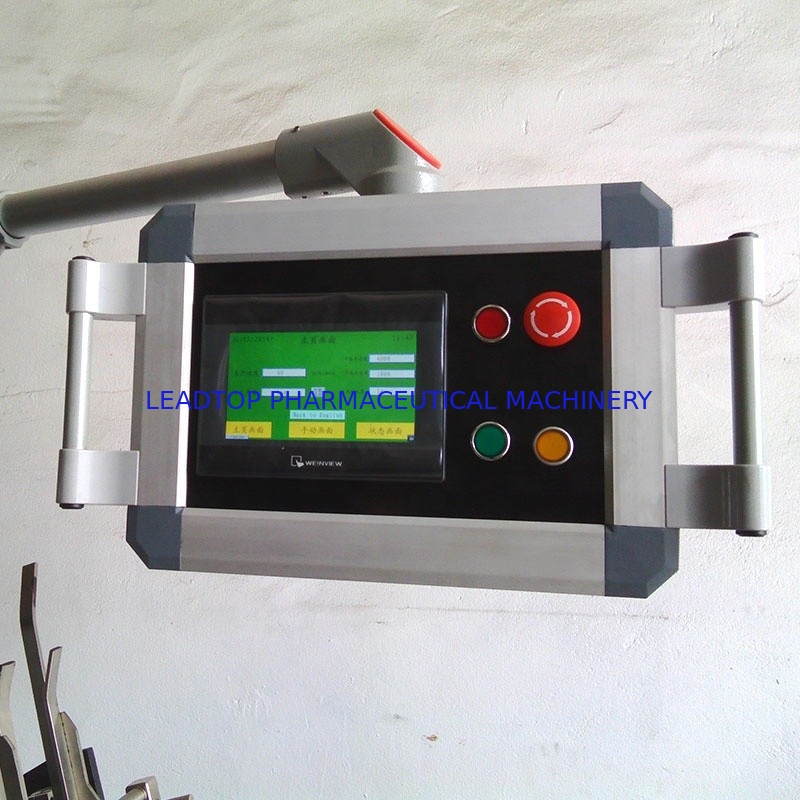

With intelligent control system of HMI , effective monitoring of equipment operation and fault prompts, easy to operate



Machine Details

Multifunction Snack Food Cartoning Machine 130pcs/Min Carton Box Packaging Machine 0

Multifunction Snack Food Cartoning Machine 130pcs/Min Carton Box Packaging Machine 1

Product

Multifunction Snack Food Cartoning Machine 130pcs/Min Carton Box Packaging Machine 2
