4500r/Min Vacuum Emulsifying Mixer Helical Ribbon Mixing

4500r/Min Vacuum Emulsifying Mixer Helical Ribbon Mixing

4500r/Min Vacuum Emulsifying Mixer

SGS Helical Ribbon Vacuum Emulsifying Mixer

SUS316 Vacuum Emulsifying Mixer

Place of Origin:

China

Brand Name:

LTPM CHINA

Certification:

CE,SGS

Model Number:

LTRZ-Series

Contact Us

Request A Quote
Product Details
Mixer Type:
Homogenizer
Application:
Viscous Fluid, Medicine Processing, Chemicals Processing
Voltage:
380V 50HZ
Contact Part Material:
SUS316
Using Life:
More Than 15 Years
Pot Working Pressure:
-0.090 Mpa
Jacket Working Pressure:
0.2Mpa
Spare Parts:
One Year Spare Parts And Tools
Product Description

High Speed Good Performance Cosmetic Facial Cream Mixing Making Machine Vacuum Emulsifying Mixer



Helical Ribbon Mixing, International and External Circulating Homogenization
Vacuum Emulsifier is professionally designed according to the cream/paste manufacturing process, introducing advanced technology from Europe/America. The machine composed of two pre-mixing pot, vaccum emulsifying pot, vacuum pump, hydraulic system, discharge system, electric control system and working platform etc. The machine is easy operation, stable performance, perfect homogenizing performance, high work efficiency, easy for cleaning, reasonable structure, occupy small space, highly-automatized.



Features:
1. Complex scraping board blending oar is suitable to every kind of complicated recipe and achieve optimizing effect;
2. Polytetrafluroethylene scraping board cater to body of blending groove and scrape out viscosity material on boiler wall;

3. Homogenizer is installed on boiler bottom to increase motor power more thoroughly and strongly. During fewproduction, it can exert homogenizing effect fully;
4. Mightiness balance isotactic curve rotor is matched with stator with corresponding structure to realize liquid high -capability cut,rubbing,centrifugal to make sure exquisite and slick cream; boiler body and pipe surface mirror polishing 300EMSH (sanitation grade) accords with Daily Chemical and GMP regulation.
5. Homogenizing vacuum emulsifier mixer can choose frequency conversion timing homogenizer and highest rotate speed is 4500 r/min

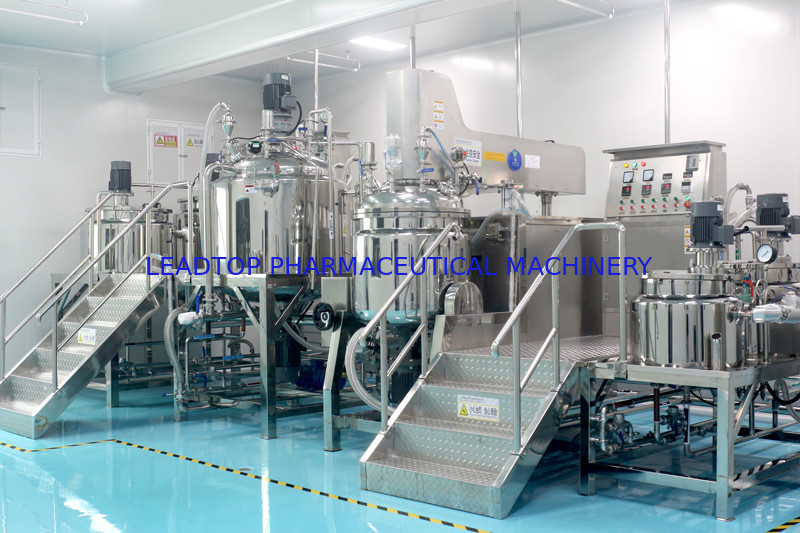

4500r/Min Vacuum Emulsifying Mixer Helical Ribbon Mixing 0

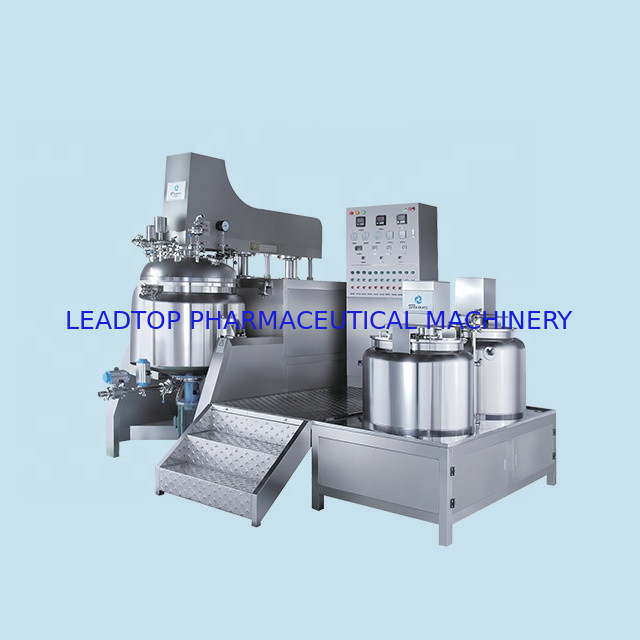

4500r/Min Vacuum Emulsifying Mixer Helical Ribbon Mixing 1

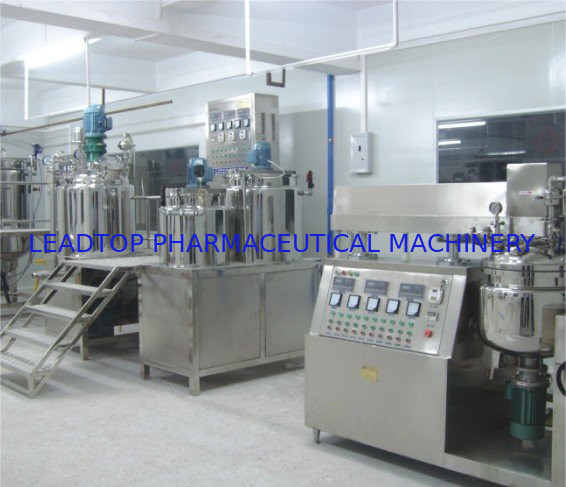

4500r/Min Vacuum Emulsifying Mixer Helical Ribbon Mixing 2

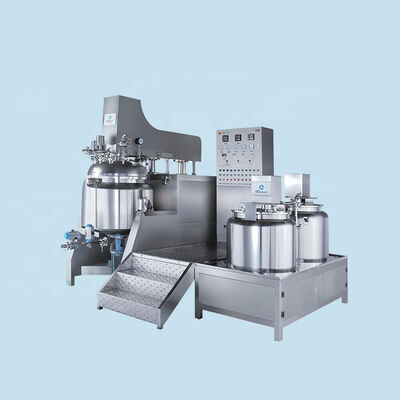

4500r/Min Vacuum Emulsifying Mixer Helical Ribbon Mixing 3

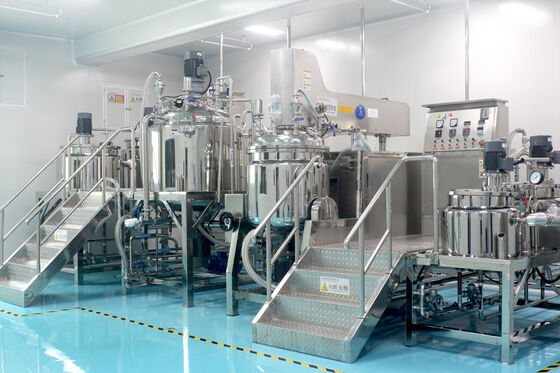

4500r/Min Vacuum Emulsifying Mixer Helical Ribbon Mixing 4



Specifications:



Capacity Volume 200L
Kettle Cover Liquid(particle)inlet, sunk material inlet, air inlet with filter, inspect light and sight glass, vacuum port, pressure meter(1 to -0.1 bar), pressure clamp
Mixing pot Material Inner layer: SUS316L thickness: 3mm
Middle layer: SUS304 thickness: 2mm
Outside layer: SUS304 thickness:2mm
configuration Bottom material exhaust, size: 1.5”
Temp. sensor (0-199℃)
Electrical heating: 12kw, cooling water inlet
Stirring system Homogenizer

1.Material: SUS316L; standard homogenizer

2. Power: 4 kw/380/50Hz; RPM: 0--4000R/Min

Stirring scrap and middle stirring Material: SUS316L,Scrap material: PTFE

1. Stirring scrap and middle stirring use the same motor

2,Power:1.5kw/380V/50Hz;RPM:0~86r/min(Frequency control)

3. Stirring scrap and middle stirring rotating the opposite direction

Safety: 1. During stirring, the cover can not open, 2. Cover lift can not stirring.
Vacuum system

1. Vacuum pump: water recycle, power 2.35kw/380V/50Hz

2. With pressure sensor (during vacuum condition, hydraulic can not open)

Heating method Jacket electrical heating/Seam Heating
Exhaust method Electric doom and bottom discharge or positive pressure discharge material
Pressure Pressure in the pot during working: -0.090 Mpa; Jacket working pressure:0.2 Mpa
Control box SUS304 , 1.2mm thickness
Dimension 3500mm×2450mm×2250~3150 mm
Shelf is SS, platform with raised platform and SS guardrail
Spare parts One year spare parts and tools
Guarantee One year
Using life More than 15 years





Oil pot

Design volume 100L
Working capacity 90L
Stirring power 1.1kw
Stirring speed 1400 RPM
Heating power 12 Kw



Water pot

Design volume 160L
Working capacity 150L
Stirring power 1.1kw
Stirring speed 1400 RPM
Heating power 12 Kw





Process Flow:
a. oil and others ,heated and mixed in Liquid Pot and Oil Pot.
b. Materials ,Sucked into emulsifying pot by vacuum system
c. Stirred by both the center blade and side scraper. Then cut off in cut-off mixing unit,all in the Emulsifying Pot.
d. The materials are finally crushed into small pellets of 200um~2um.
e. The finished product , pumed out from Discharge Valve
f. Fully in accordance with the GMP standard production and passed CE certification

4500r/Min Vacuum Emulsifying Mixer Helical Ribbon Mixing 5
