Place of Origin:
China
Brand Name:
LTPM China
Certification:
CE, GMP
Model Number:
LTRM
Contact Us
Material :304(L) 316(L)
Finish:Mirror or Matt Polish; Ra<0.4um
Certification: CE ISO9001:2000
Used as mixing tank, blending tank etc.
Ideal in fields such as foods, dairy products, fruit juice beverages, pharmacy, chemical industry and biological engineering etc.
Structure characteristics:
Made of single-layer stainless steel structure.
Materials are all sanitary stainless steel.
Humanized structure design and easy to operate.Transition area of interior wall on tank adopts arc for transition to ensure no dead comer of sanitation.
Configuration of tank:
Quick open manhole.
Various types of CIP cleaners.
Fly and insect resistant sanitary breathing cover.
Adjustable triangular bracket.
Dismountable materials input pipe assembly
Thermometer (According to customer requirements ).
Ladder (According to customer requirements).
Paddle blender.
Liquid level meter and lever controller (According to customer requirements).
Eddy-proof board.
Customized and Non-standard products also welcomed.
Specifications:
| Work Volume | Dimension of tank | Total height | Insulated layer | Diameter of inlet&outlet |
| (L) | (mmxmm) | (mm) | (mm) | (mm) |
| 500 | 840*1000 | 2300 | 60 | 38 |
| 600 | 920*1000 | 2400 | 60 | 38 |
| 700 | 990*1000 | 2400 | 60 | 38 |
| 800 | 950*1220 | 2550 | 60 | 38 |
| 900 | 1010*1220 | 2700 | 60 | 38 |
| 1000 | 1060*1220 | 2700 | 60 | 51 |
| 2000 | 1340*1500 | 2750 | 60 | 51 |
| 3000 | 1410*2000 | 3500 | 60 | 51 |
| 5000 | 1910*2000 | 3850 | 60 | 51 |
| 10000 | 2300*2440 | 4500 | 60 | 51 |
| 15000 | 2530*3000 | 5200 | 60 | 51 |
| 20000 | 2640*3660 | 5800 | 60 | 51 |

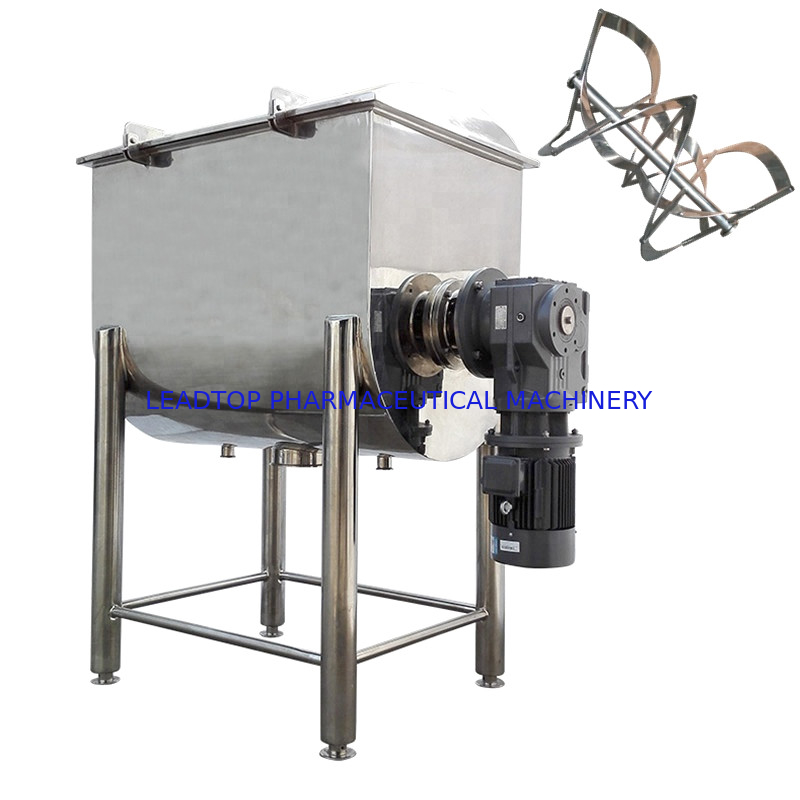

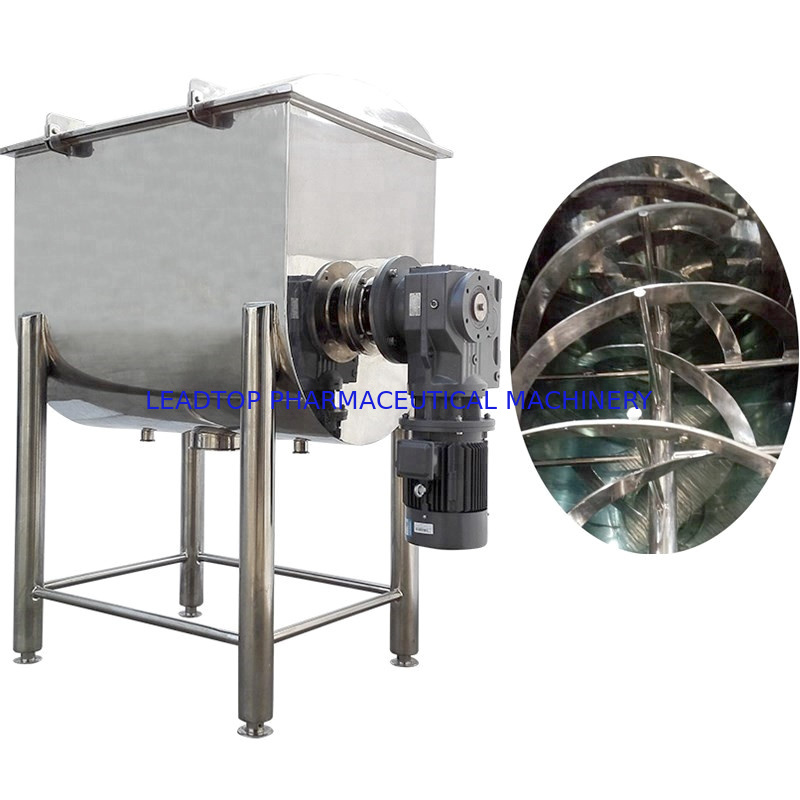

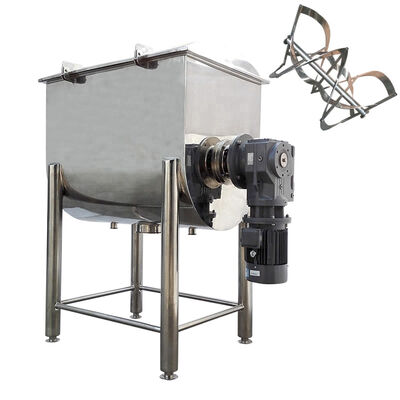

Machine Picture:
