Place of Origin:
China
Brand Name:
LTPM China
Model Number:
ZH-130
Contact Us

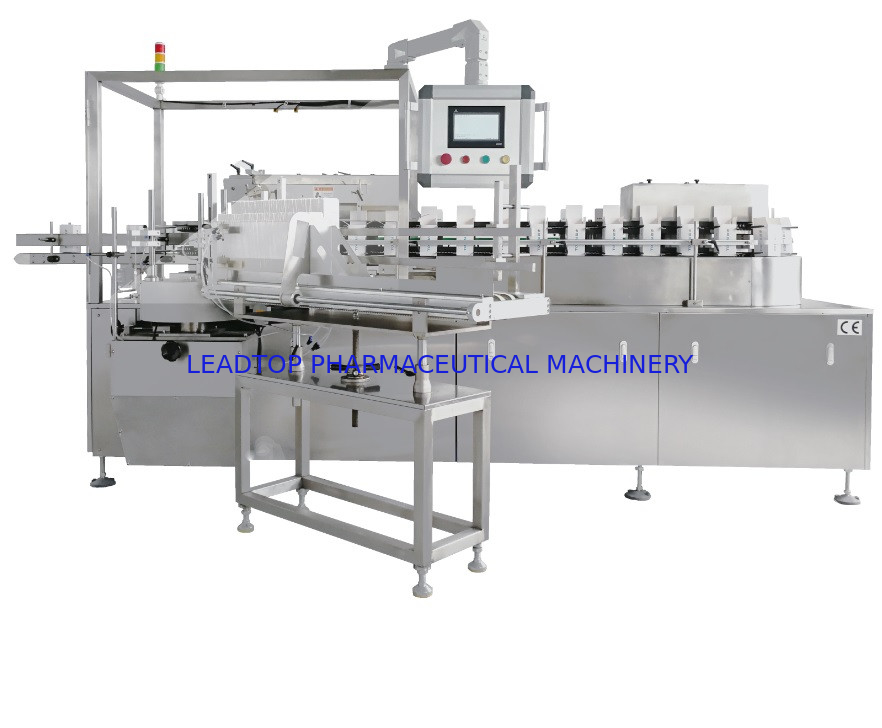

This machine is a fully automatic vertical type opening up cartoning machine. It is applicable for coffee capsules, wash powder, chocolate, pet food, penicillin bottle, perfume bottle, etc. This cartoning machine is able to encase irregular bulk items that horizontal cartoning machine can not do. Combined with the world advanced technology and our company's powerful design team, this machine has obtained many design patents. It is favored by domestic and foreign companies.
Technical Parameters
| Description | Automatic cartoning machine |
| Model | ZH-Series Cartoning machine |
| Speed | 50-80 boxes/min |
| Carton specification | Paper material 250-400g/m2 ( need flat surface) |
| Box size L*W*H(100-240)*(15-150)*(25-85)mm | |
| Power supply | 220V/380V,50HZ. Main motor 1.5kw |
| Dimension | 3600*1200*1700mm( L*W*H) |
| Weight | 1300kg |
| Air supply | ≥0.6Mpa |
| Air consumption | 20m3/H |
| Glue machine | China Jingtai(optional ) |
Features
1,Adopt PLC automatic control system, frequency conversion. The electrical components adopt international famous brands.
2,Photoelectric system monitors all parts moving. If there is malfunction during the running, the wrong place will be shown and the machine can stop automatically.
3,Reject automatically the box which is lack of stuff or specification.
4,If the stuff or specification lack, the paper box will stop feeding.
5,Performance is stable. The operation is easy and convenience.
6,The machine can feed and box continually, the machine can instead of 15-20 the workload of workers.

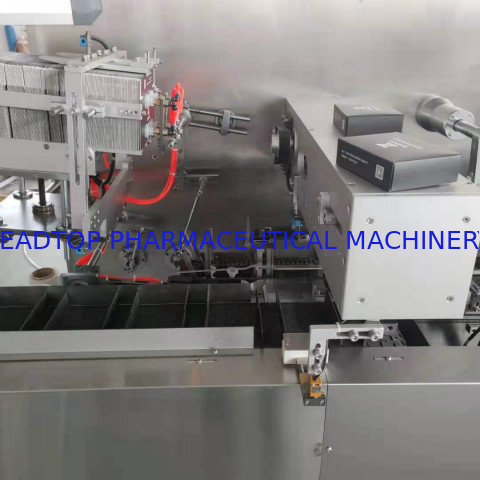

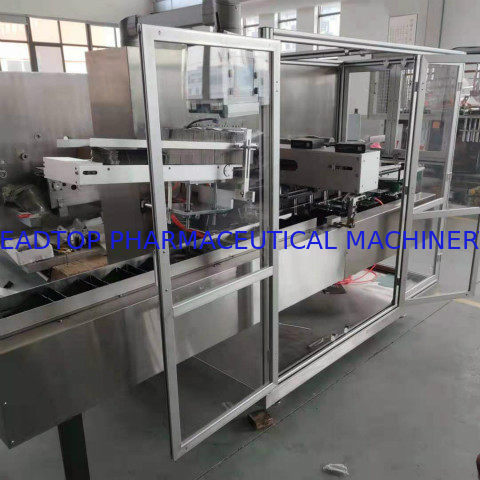

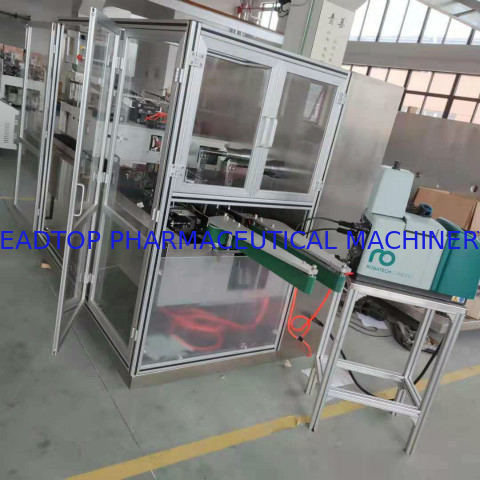

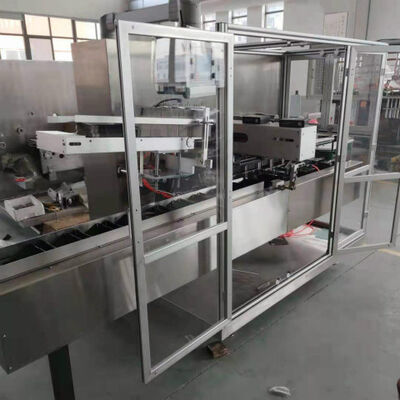

Machine Details
Work Process
Product
