Cosmetics Bottle Boxing Automatic Cartoning Machine 130 Cartons/Min

Cosmetics Bottle Boxing Automatic Cartoning Machine 130 Cartons/Min

Product Details:

Place of Origin: China
Brand Name: LTPM China
Certification: CE, GMP, SGS, BV
Model Number: ZH-130

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Export Standard Wooden Case
Delivery Time: 25days
Payment Terms: T/T, L/C, D/P
Supply Ability: 25 sets/Month
Get Best Price Contact Now

Detail Information

Packaging Material: Paper Application: Food, Beverage, Chemical, Cigarettes, Tobacco
Driven Type: Electric Dimension(L*W*H): 3600*1200*1700mm( L*W*H)
Weight: 1300kg Working Pressure: ≥0.6mpa
Certification: CE, ISO Capacity: 30-130 Cartons/min
High Light:

220V Cosmetics Automatic Cartoning Machine

,

130 Cartons/Min Automatic Cartoning Machine

,

SGS Cosmetics Cartoning Machine

Product Description

Cosmetics Bottle Boxing Automatic Cartoning Machine 130 Cartons/Min

The ZH-Series horizontal automatic cartoning machine is suitable for automatic boxing of a wide range of products. The work process is the transfer of items, the paper box automatically opens and transmits, the product is automatically loaded into the paper box, and completes the complicated packaging process such as sealing paper tongues at both ends. The machine shape of all 304 stainless steel housing, in strict accordance with the pharmaceutical industry "GMP" standards requirements line innovative design. The transmission part designs the overload protection function, and sets up the emergency stop device, the control system adopts the human-machine interface screen, guarantees the operator's personal safety.



Technical Parameters

Description Automatic cartoning machine
Model ZH-Series Cartoning machine
Speed 50-80 boxes/min
Carton specification Paper material 250-400g/m2 ( need flat surface)
Box size L*W*H(100-240)*(15-150)*(25-85)mm
Power supply 220V/380V,50HZ. Main motor 1.5kw
Dimension 3600*1200*1700mm( L*W*H)
Weight 1300kg
Air supply ≥0.6Mpa
Air consumption 20m3/H
Glue machine China Jingtai(optional )

Features

Adapt automatic feeding with the function of open box, enter box, seal box and automatic output and so on, compact and reasonable structure, easy operation.

1. the use of servo / stepper motor and touch screen, PLC programmable control system, human interface display operation is clearer and simpler, high degree of automation, more user-friendly.

2. the use of photoelectric sensor automatic detection tracking system, no products do not draw boxes, to maximize the savings of packaging materials;

3. packaging range easy to adjust, a variety of specifications between sizes can achieve rapid conversion.

4. Change to different size product by adjusting the parts and no need to replace the mold.

5. no product or product supply is not in place, the machine idling not push the product, when the product resumes supply after automatic operation, the product into the box is not in place automatic shutdown and the main drive motor overload protection device, the application of more safe and reliable

6. automatic display boxing speed and counting.

7. optional of flip-up safety shield, easy to operate, beautiful appearance.

8. can be with aluminum packaging machine, pillow packaging machine, 3D packaging machine, bottling line, filling machine, labeling machine, spraying machine, online weighing meter, other production lines and other equipment to achieve joint production;

9. according to the requirements of packaging design a variety of automatic feeder and box system;

10, according to customer requirements to choose the hot melt machine for spray seal box.

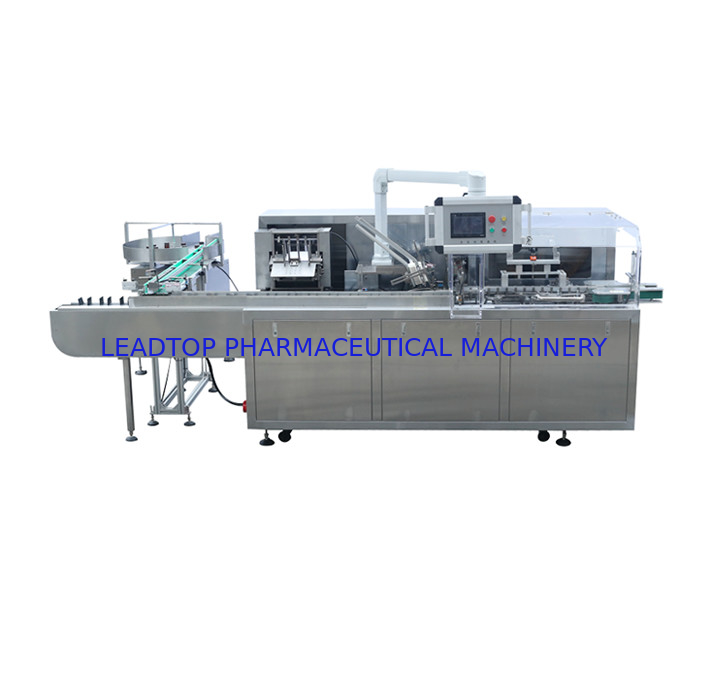

Cosmetics Bottle Boxing Automatic Cartoning Machine 130 Cartons/Min 0

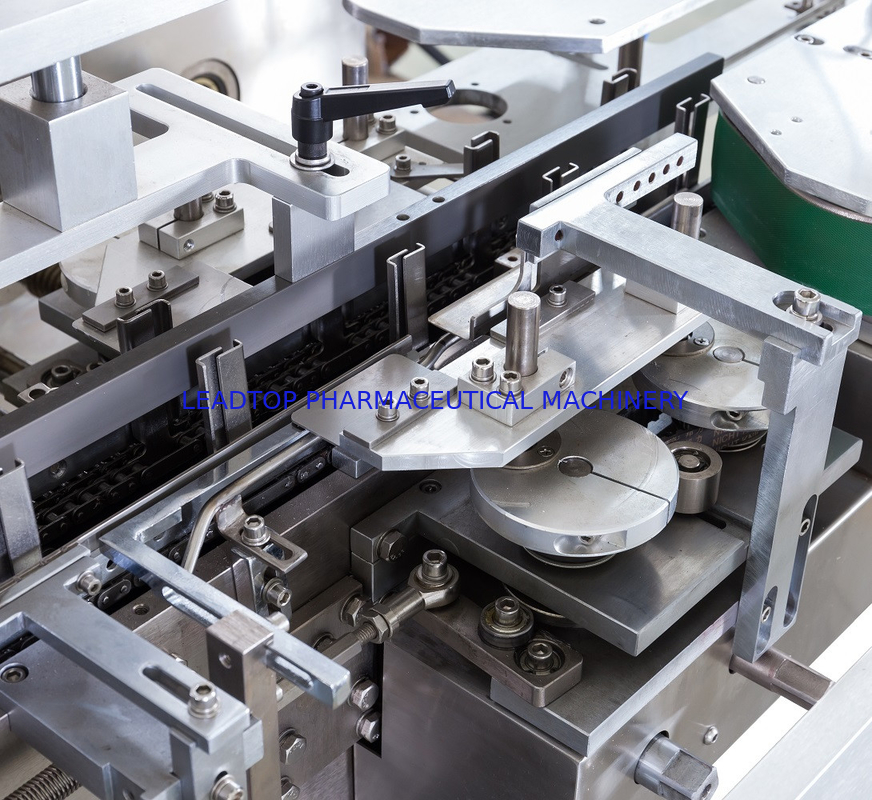

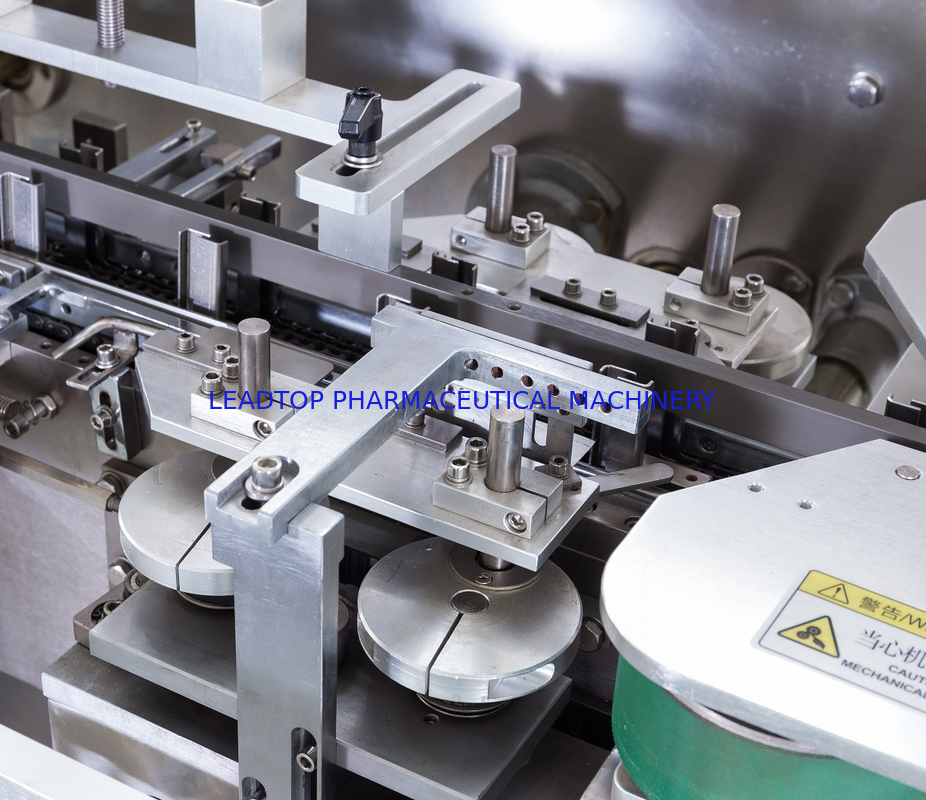

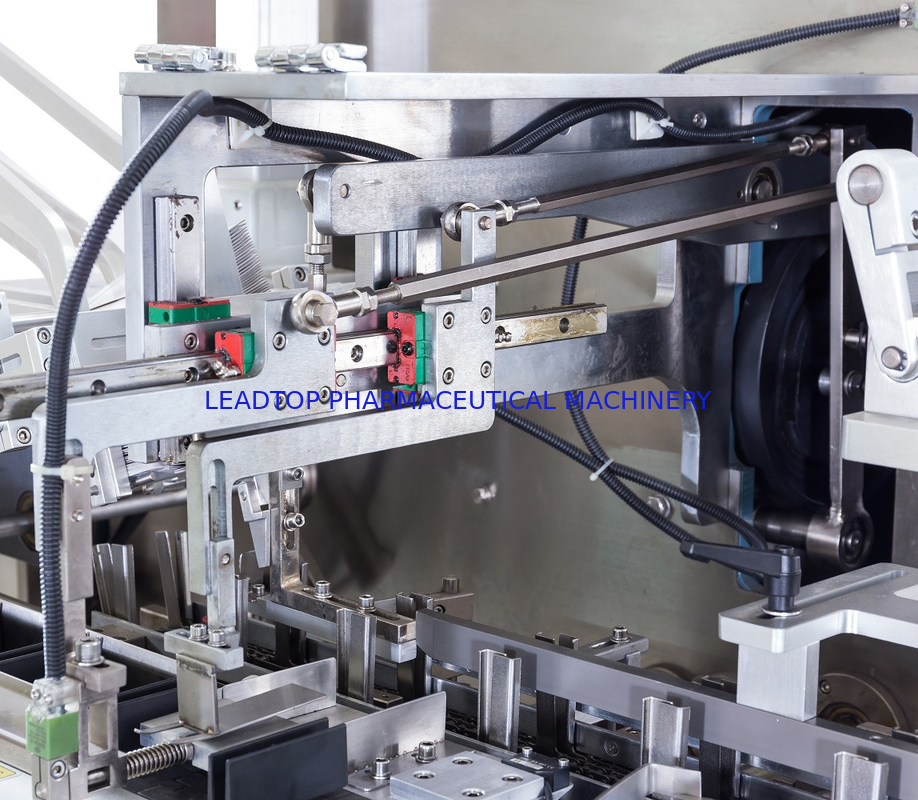

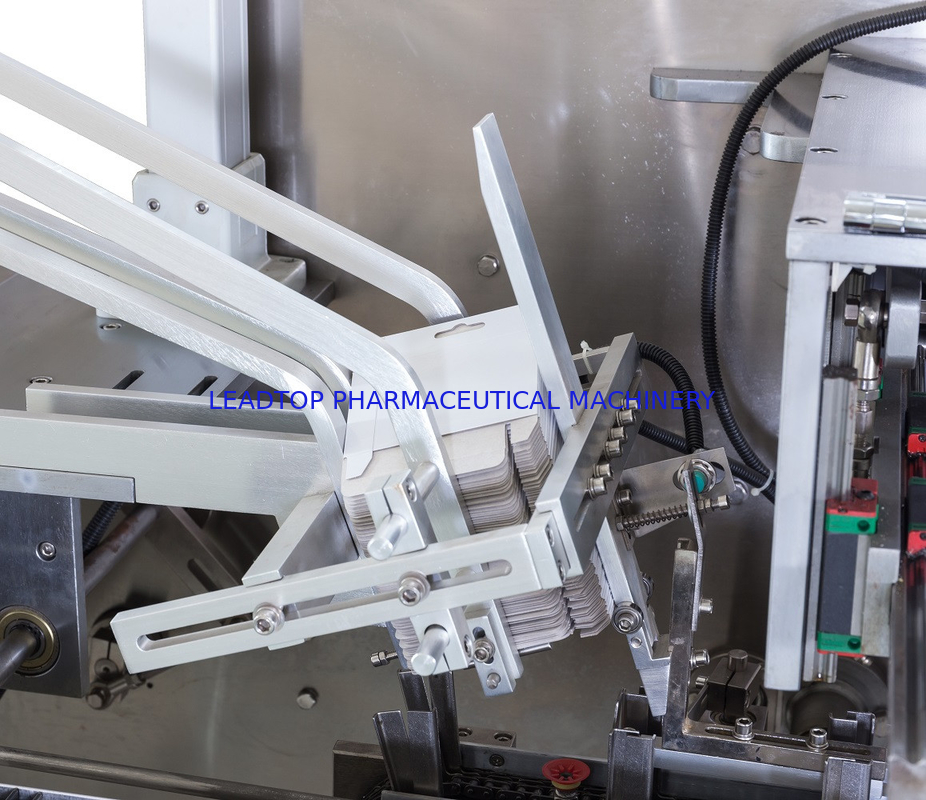

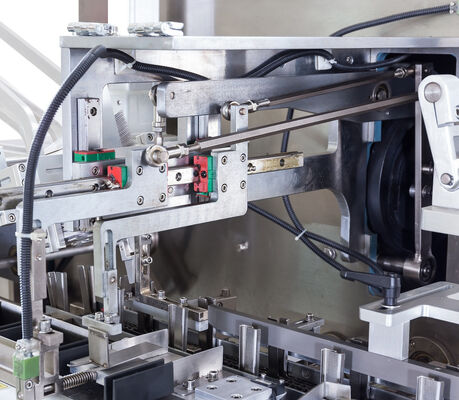

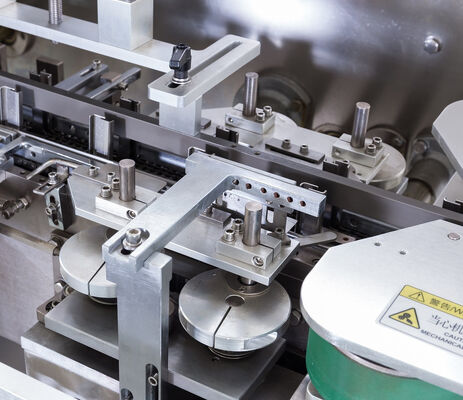

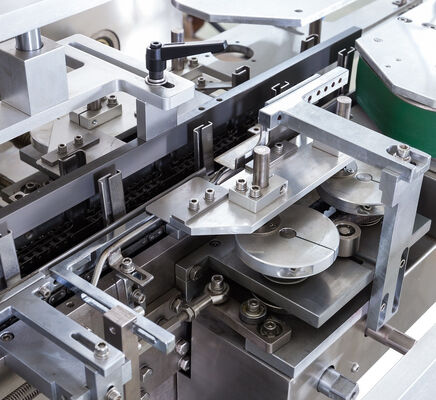

Machine Details

Cosmetics Bottle Boxing Automatic Cartoning Machine 130 Cartons/Min 1

Cosmetics Bottle Boxing Automatic Cartoning Machine 130 Cartons/Min 2

Cosmetics Bottle Boxing Automatic Cartoning Machine 130 Cartons/Min 3Cosmetics Bottle Boxing Automatic Cartoning Machine 130 Cartons/Min 4



Product

Cosmetics Bottle Boxing Automatic Cartoning Machine 130 Cartons/Min 5
